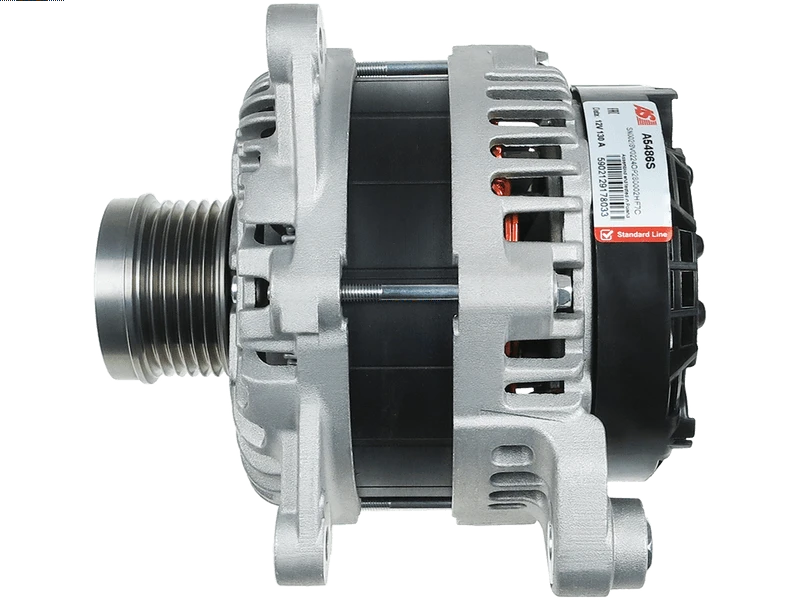

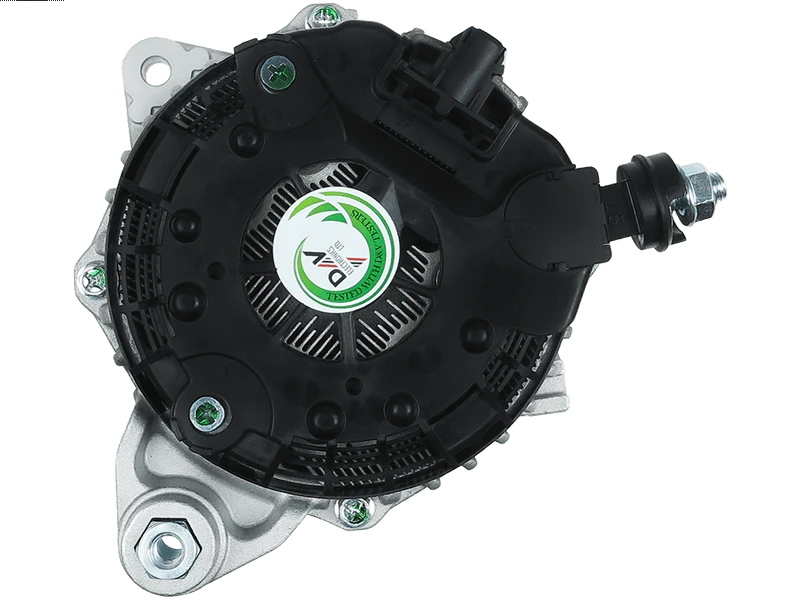

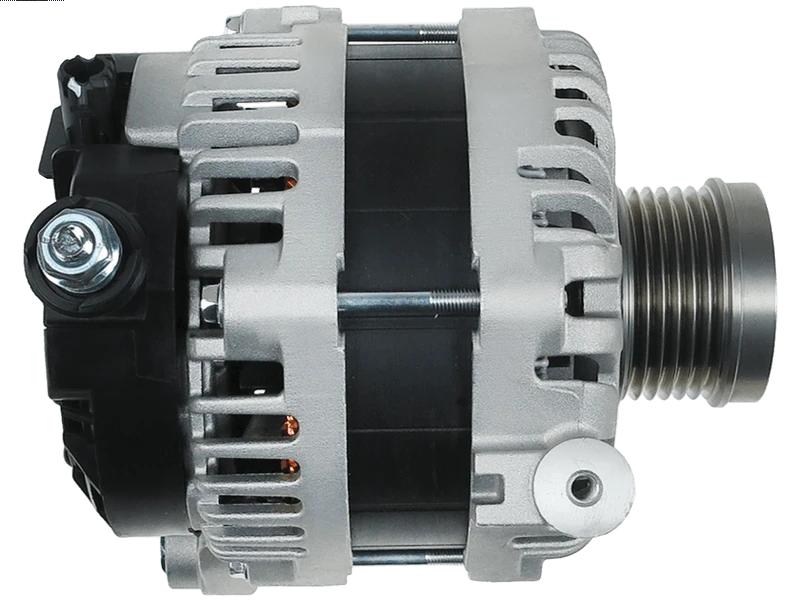

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 724.97 including GST
NZ$ 630.41 excluding GST
or four payments of $181.24
with
Learn More
each
A5486S
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A5TV0881Associated Numbers
23700AA920
Specifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Length (L.1) | 164 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59 mm |
| OEM Product | No |
| Plug Code | PL_1100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Forester 2.0 AWD | [FB20C] | 04.2018- |
| SUBARU | Forester 2.0 AWD | [FB20D] | 04.2018- |
| SUBARU | Forester 2.5 AWD | [FB25C] | 04.2018- |
| SUBARU | Forester 2.5 AWD | [FB25D] | 04.2018- |
| SUBARU | Levorg 1.6 AWD | [FB16] | 09.2015- |
| SUBARU | Outback 2.5 AWD | [FB25] | 03.2015- |
| SUBARU | Outback 2.5 AWD | 07.2020- |
Reference Information
| 23700-AA921 | SUBARU |
| 23700-AB000 | SUBARU |
| 23700-AB01A | SUBARU |
| 23700-AB050 | NISSAN |
| 23700-AB070 | SUBARU |
| 28-8540 | ELSTOCK |
| 37300AB01A | SUBARU |
| 37300AB070 | SUBARU |
| 40901 | CEVAM |
| A005TV0081A | MITSUBISHI |
| A005TV0681 | MITSUBISHI |
| A005TV0781 | MITSUBISHI |
| A005TV0781ZC | MITSUBISHI |
| A005TV0881 | MITSUBISHI |
| A5TV0081A | MITSUBISHI |
| A5TV0681 | MITSUBISHI |
| A5TV0781 | MITSUBISHI |
| A5TV0781ZC | MITSUBISHI |
| A5TV0881 | MITSUBISHI |
| LRA04431 | LUCAS |
| LRA4431 | LUCAS |
| UD101052A | AS-PL |
Video/Publications
