Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 523.57 including GST
NZ$ 455.28 excluding GST
or four payments of $130.89
with
Learn More
each
A6738S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

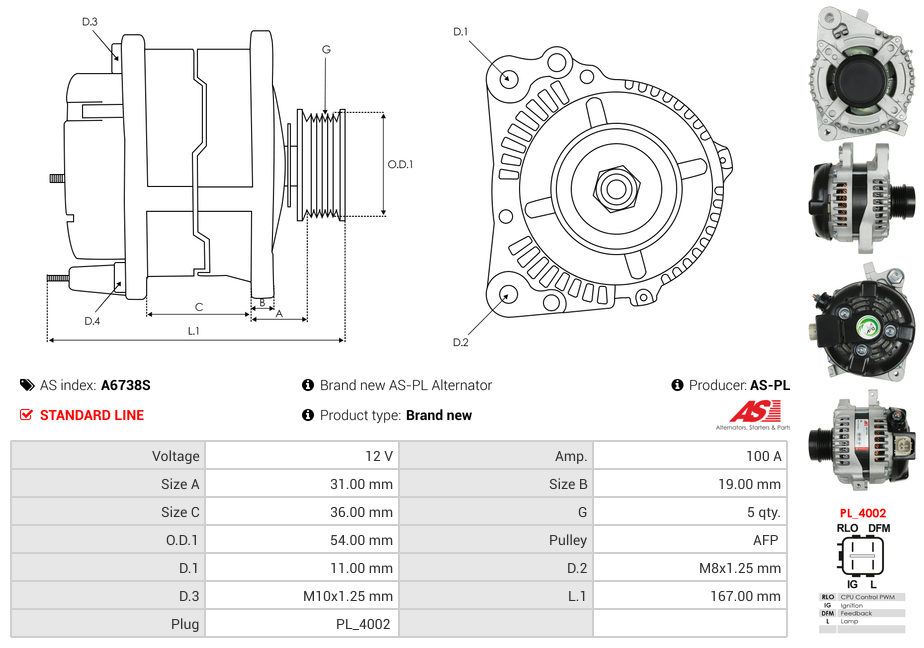

104210-2670Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36 mm |
| OEM Product | No |
| Plug Code | PL_4002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | IQ 1.33 | [1NR-FE] | 01.2009-12.2015 |
Reference Information
| 104210-2670 | DENSO |
| 104210-2690 | DENSO |
| 27060-47070 | TOYOTA |
| 27060-47071 | TOYOTA |
| 27060-47080 | TOYOTA |
| 28-7847 | ELSTOCK |
| 40103 | CEVAM |
| 554032RI | KUHNER |
| 89216477 | POWERMAX |
| ALN1169 | KRAUF |
| J5112174 | HERTH+BUSS |
| LRA04238 | LUCAS |
| LRA4238 | LUCAS |
| UD100756A | AS-PL |
Video/Publications
A6738SRelated Items
