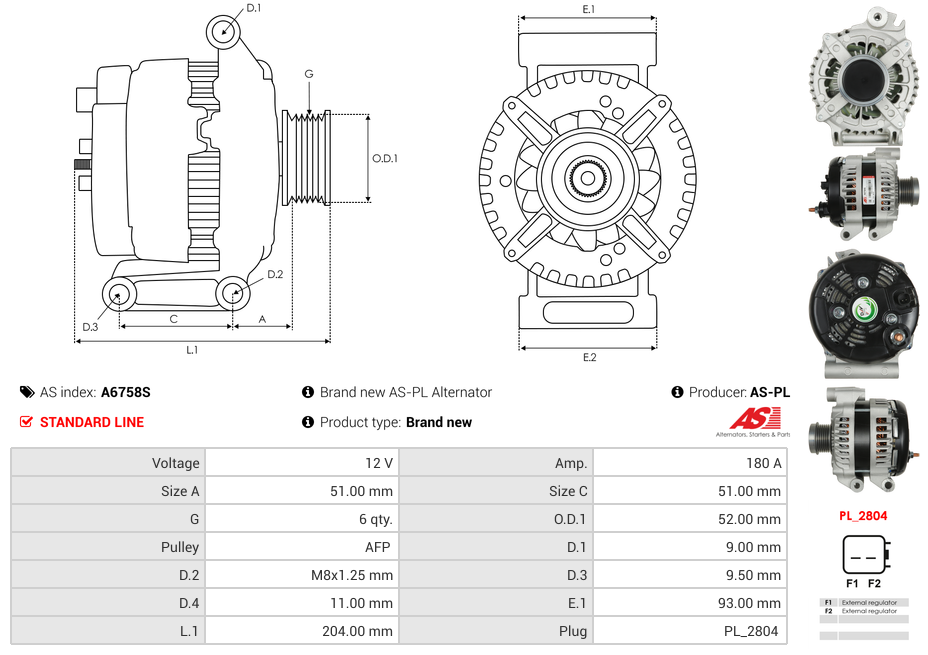

Specifications
| Amp | 180 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 9.5 mm |
| Diameter (D.4) | 11 mm |
| Grooves | 6 qty |
| Length (L.1) | 204 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52 mm |
| Pad mount thickness (E.1) | 93 mm |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DODGE | ProMaster 3.6 V6 | [220] | 01.2014-12.2021 |
Reference Information
UD100883A 4727603AA 835.314.180.050 421000-7120 90-29-5870 04727603AAAdd Your Number
