Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 633.60 including GST
NZ$ 550.96 excluding GST
or four payments of $158.40
with
Learn More
each
A9414S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

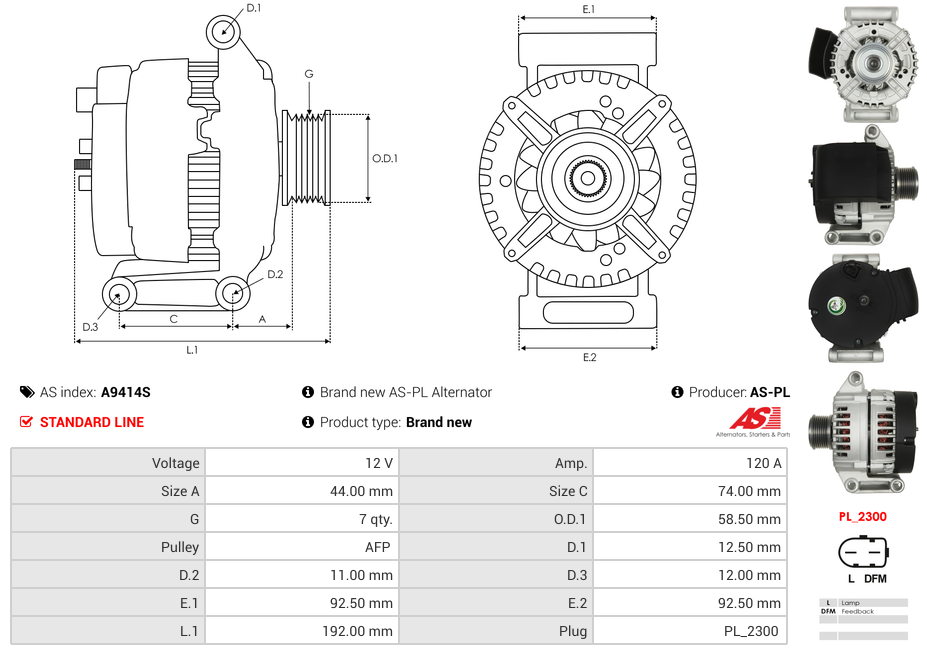

9P2-10300-BESpecifications
| Amp | 120 A |
| Diameter (D.1) | 12.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 92.50 mm |
| Pad mount thickness (E.2) | 92.50 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 58.50 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | Clutch |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JMC | N-Series | [N900] | 01.1988-12.1998 |
Reference Information
| 9P2-10300-BC | FORD |
| 9P2-10300-BE | FORD |
| UD19686A | AS-PL |
Video/Publications
