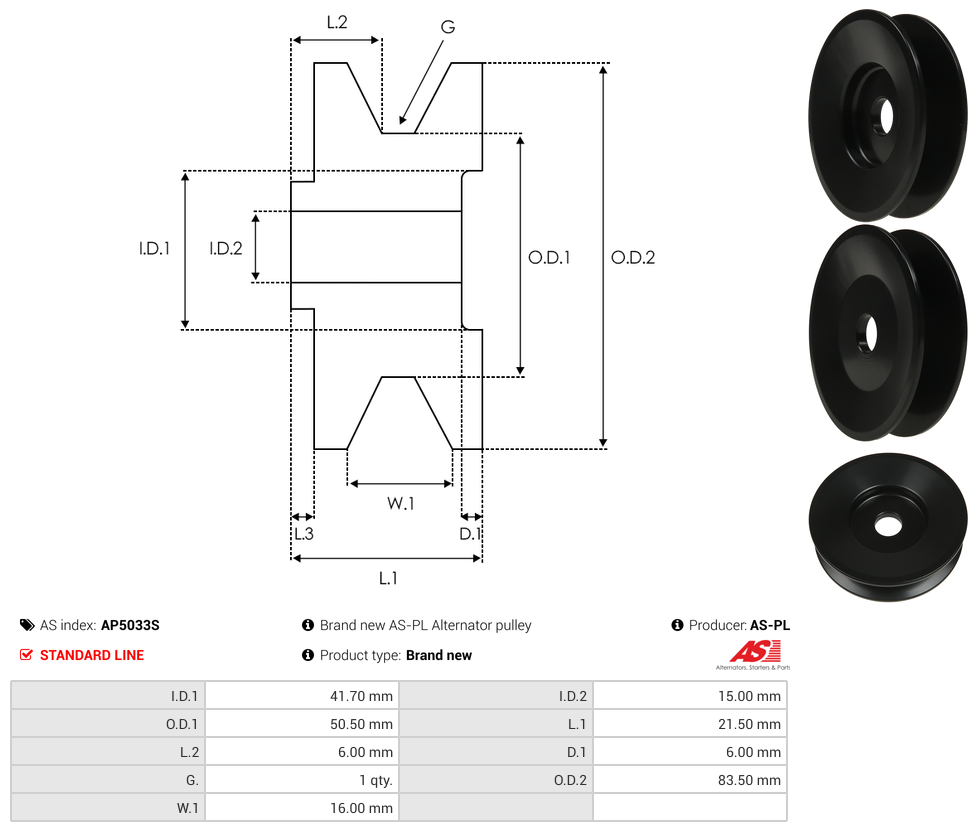

Specifications
| Depth (D.1) | 6 mm |
| Grooves | 1 qty |
| Inside Diameter (I.D.1) | 41.7 mm |
| Inside Diameter (I.D.2) | 15 mm |
| Length (L.1) | 21.5 mm |
| Length (L.2) | 6 mm |
| Outside Diameter (O.D.1) | 50.5 mm |
| Outside Diameter (O.D.2) | 83.5 mm |
| Unit Type | MITSUBISHI |
| Width (W.1) | 16 |
Reference Information
UD50953APVideo/Publications
A5154 A1T70783 A001T70783Add Your Number
