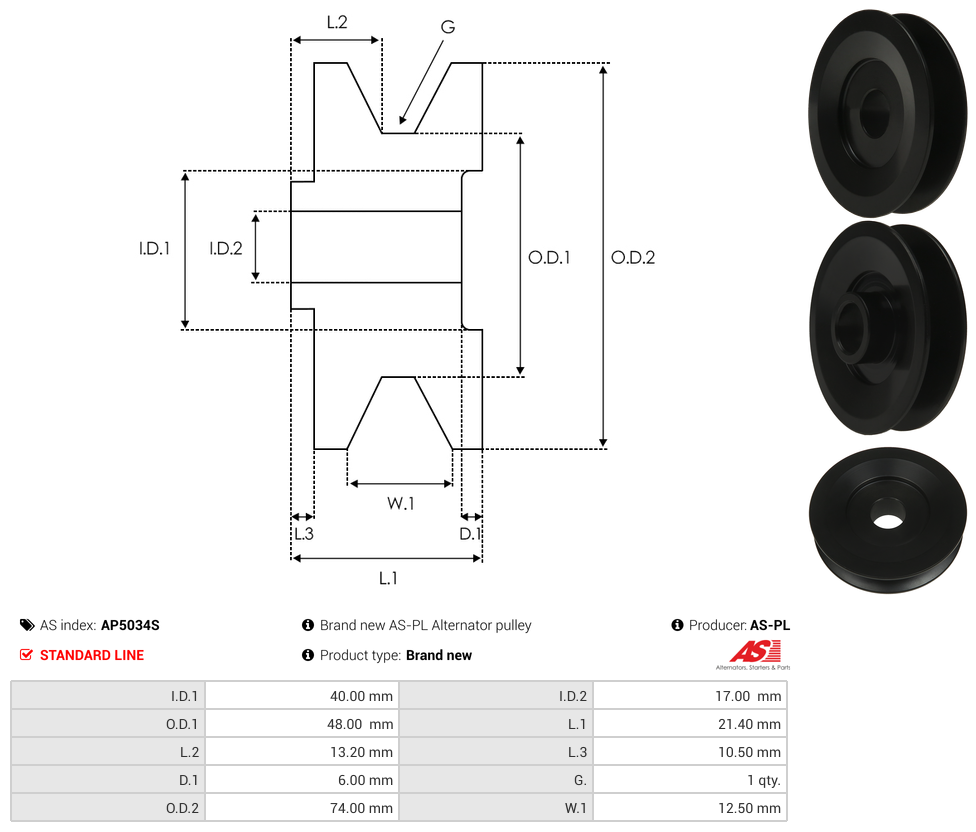

Specifications
| Depth (D.1) | 6 mm |
| Grooves | 1 qty |
| Inside Diameter (I.D.1) | 40 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 10.5 mm |
| Length (L.1) | 21.4 mm |
| Length (L.2) | 13.2 mm |
| Outside Diameter (O.D.1) | 48 mm |
| Outside Diameter (O.D.2) | 74 mm |
| Unit Type | MITSUBISHI |
| Width (W.1) | 12.5 |
Reference Information
UD45660APVideo/Publications
A5405S A5265 A7TA0171 A005T01577 A5T01577Add Your Number
