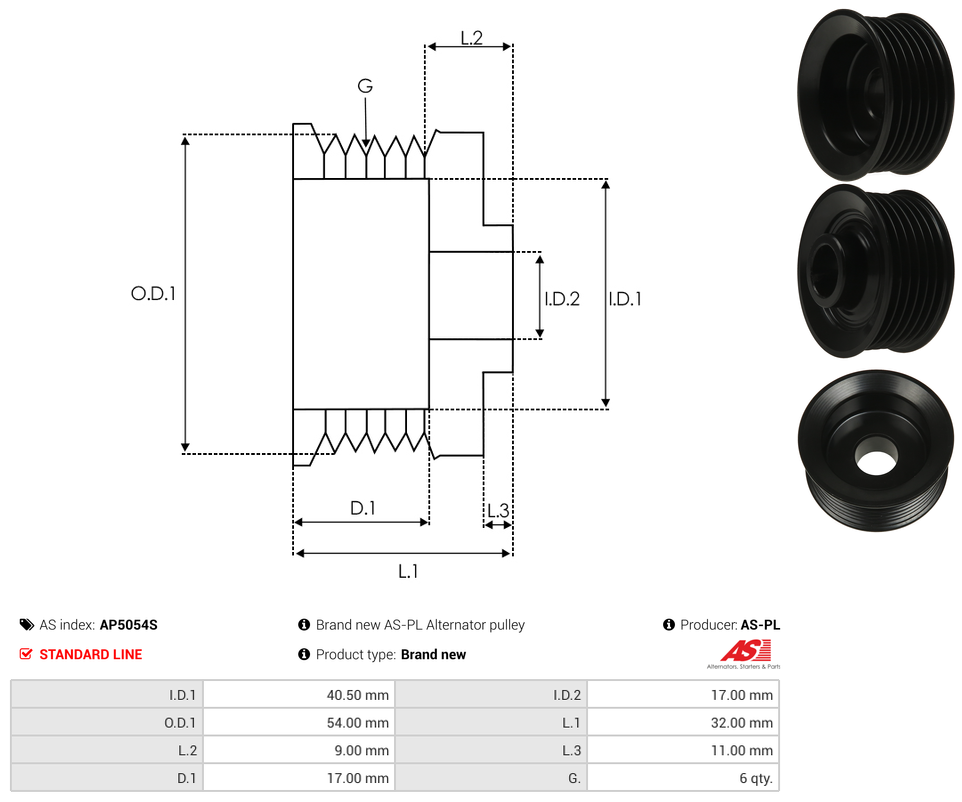

Specifications
| Depth (D.1) | 17 mm |
| Grooves | 6 qty |
| Inside Diameter (I.D.1) | 40.5 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 11 mm |
| Length (L.1) | 32 mm |
| Length (L.2) | 9 mm |
| Outside Diameter (O.D.1) | 54 mm |
| Unit Type | MITSUBISHI |
Reference Information
UD48553APVideo/Publications
A005TG1392 A5280 A5TG1392Add Your Number
