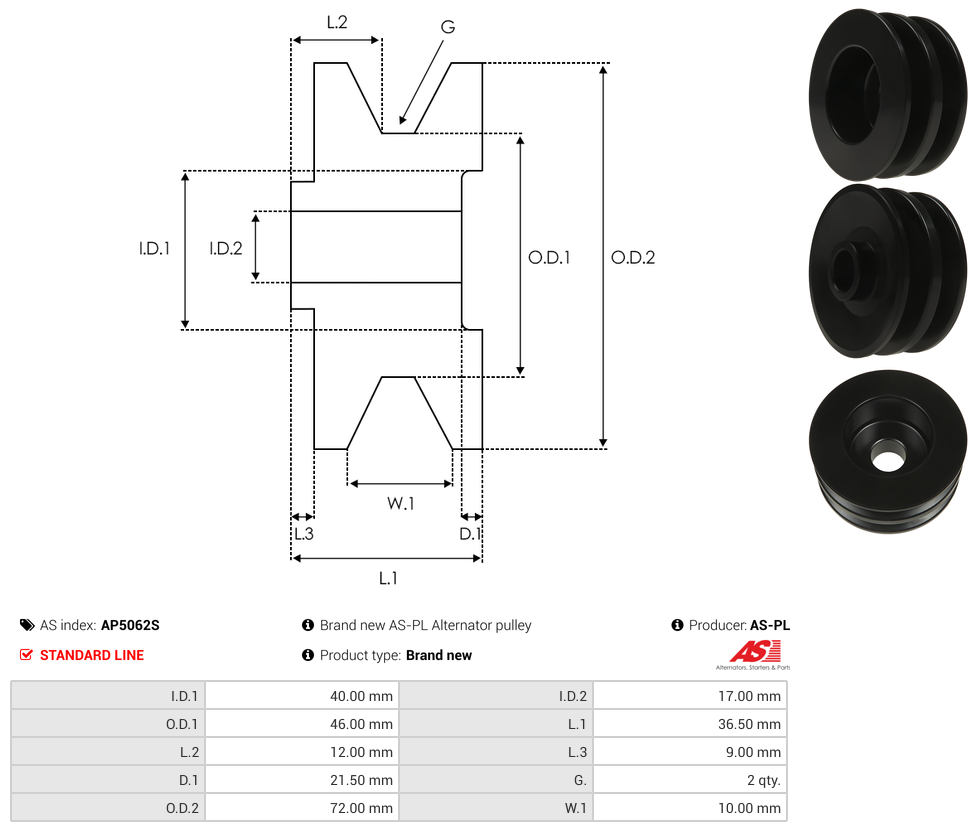

Specifications
| Depth (D.1) | 21.5 mm |
| Grooves | 2 qty |
| Inside Diameter (I.D.1) | 40 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 9 mm |
| Length (L.1) | 36.5 mm |
| Length (L.2) | 12 mm |
| Outside Diameter (O.D.1) | 46 mm |
| Outside Diameter (O.D.2) | 72 mm |
| Unit Type | MITSUBISHI |
| Width (W.1) | 10 |
Reference Information
EC43411 APM2354 MD619393 A629X53870 232354 81114902 UD51505APVideo/Publications
A5025 A002TN1798 A002TN1798AT A002TN1798A MD340419 A2TN1798AT MD366052 A2TN1798 A2TN1798AAdd Your Number
