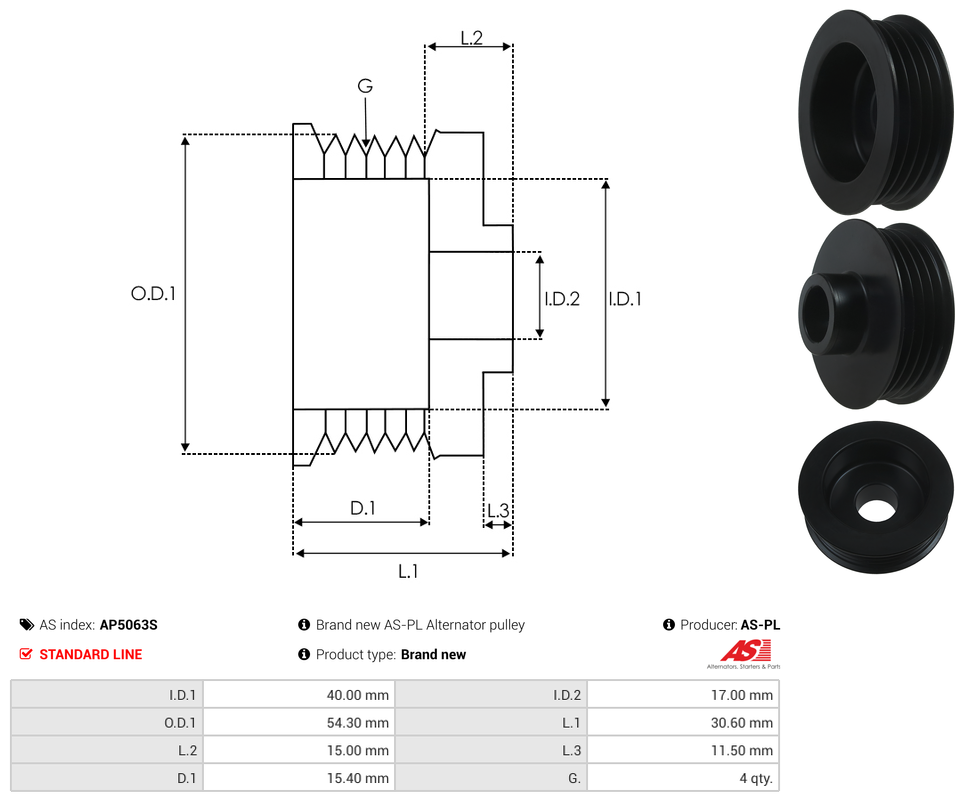

Specifications
| Depth (D.1) | 15.4 mm |
| Grooves | 4 qty |
| Inside Diameter (I.D.1) | 40 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 11.5 mm |
| Length (L.1) | 30.6 mm |
| Length (L.2) | 15 mm |
| Outside Diameter (O.D.1) | 54.3 mm |
| Unit Type | MITSUBISHI |
Reference Information
UD49755AP APM0391Video/Publications
A2TC0891 A5047 A002TC0391 A002TC1791 A002TC0891 A2TC0391 A2TC1791Add Your Number
