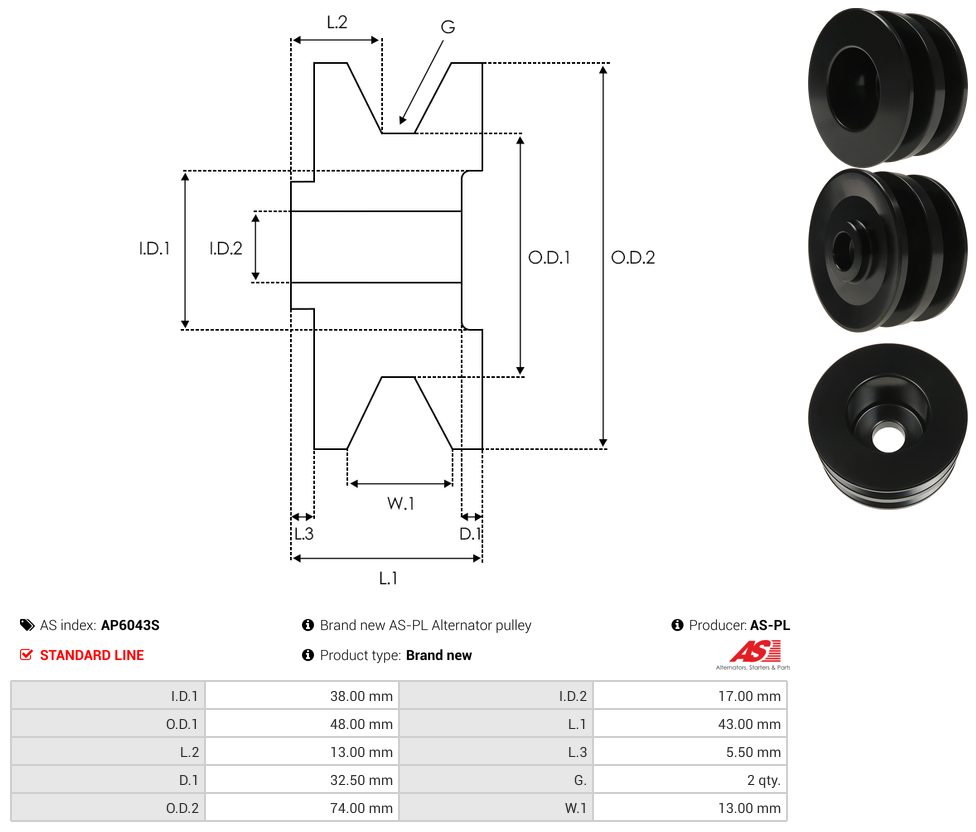

Specifications
Depth (D.1) | 32.5 mm |
Grooves | 2 qty |
Inside Diameter (I.D.1) | 38 mm |
Inside Diameter (I.D.2) | 17 mm |
Length 3 (L.3) | 5.5 mm |
Length (L.1) | 43 mm |
Length (L.2) | 13 mm |
Outside Diameter (O.D.1) | 48 mm |
Outside Diameter (O.D.2) | 74 mm |
Unit Type | DENSO |
Width (W.1) | 13 |
Reference Information
UD47980APVideo/Publications
1022115002 1012110571 1012110570 1022115001 1012110481 1012110480 1012110971 1012110970 A6138 1012110972Add Your Number
