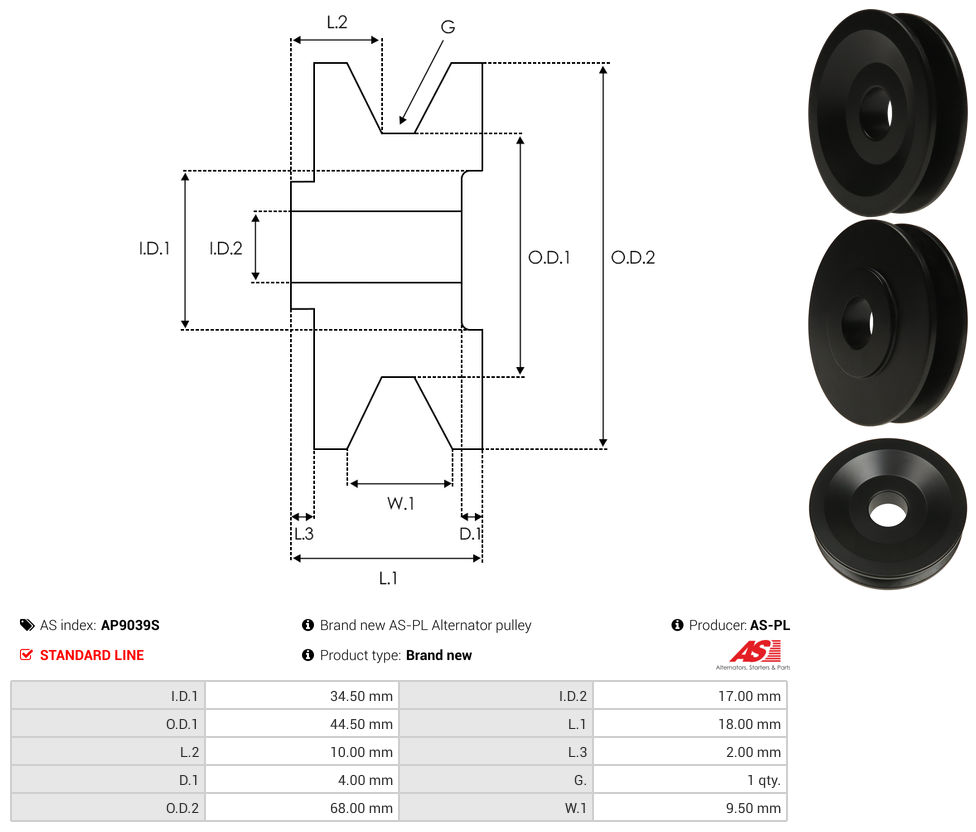

Specifications
| Depth (D.1) | 4 mm |
| Grooves | 1 qty |
| Inside Diameter (I.D.1) | 34.5 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 2 mm |
| Length (L.1) | 18 mm |
| Length (L.2) | 10 mm |
| Outside Diameter (O.D.1) | 44.5 mm |
| Outside Diameter (O.D.2) | 68 mm |
| Unit Type | ISKRA / LETRIKA |
| Width (W.1) | 9.5 |
Reference Information
MAHMGX13KIT 72736650 UD49106AP 16.905.653 MGX13Video/Publications
A9227 11201742 11201711 A9209Add Your Number
