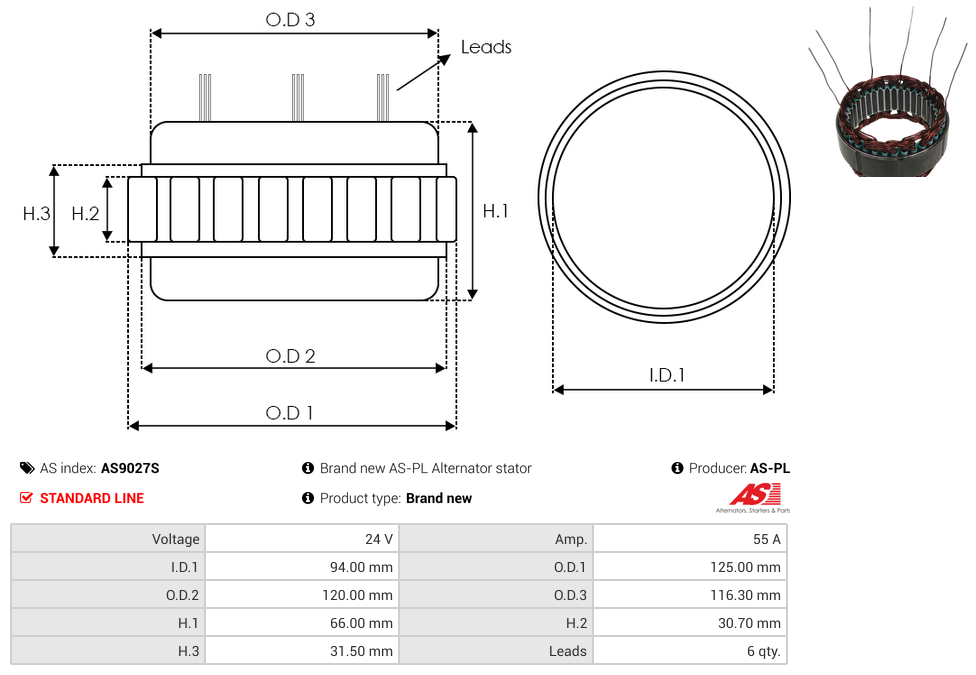

Specifications
| Amp | 55 A |
| Height (H.1) | 66 mm |
| Height (H.2) | 30.7 mm |
| Inside Diameter (I.D.1) | 94 mm |
| Lam. Stack Height (H.3) | 31.5 mm |
| No./Leads | 6 qty |
| Outside Diameter (O.D.1) | 125 mm |
| Outside Diameter (O.D.2) | 120 mm |
| Outside Diameter of Windings (O.D.3) | 116.3 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Reference Information
16.350.512 UD46193AS MGX868 72739346Video/Publications
11203396 A9159Add Your Number
