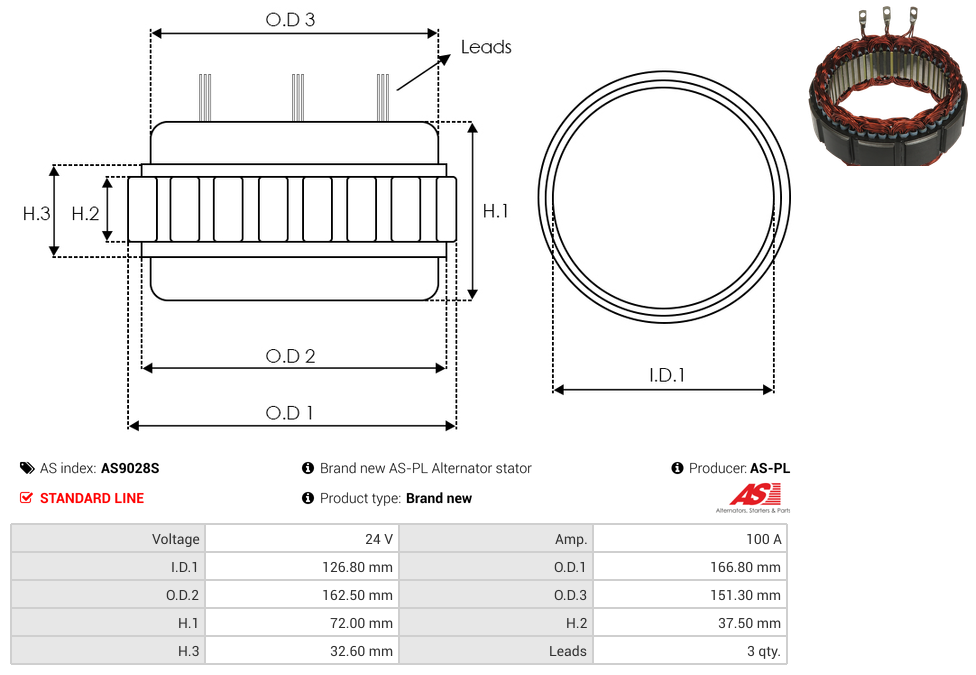

Specifications
| Amp | 100 A |
| Height (H.1) | 72 mm |
| Height (H.2) | 37.5 mm |
| Inside Diameter (I.D.1) | 126.8 mm |
| Lam. Stack Height (H.3) | 32.6 mm |
| No./Leads | 3 qty |
| Outside Diameter (O.D.1) | 166.8 mm |
| Outside Diameter (O.D.2) | 162.5 mm |
| Outside Diameter of Windings (O.D.3) | 151.3 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Reference Information
UD47092ASVideo/Publications
A9274S 8SC3014UAdd Your Number
