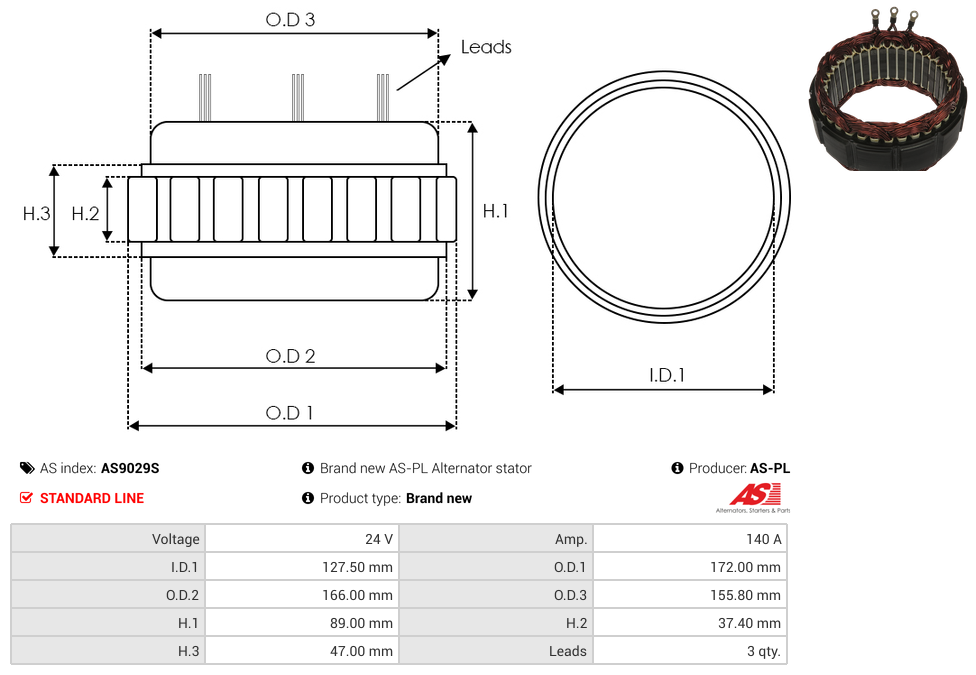

Specifications
| Amp | 140 A |
| Height (H.1) | 89 mm |
| Height (H.2) | 37.4 mm |
| Inside Diameter (I.D.1) | 127.5 mm |
| Lam. Stack Height (H.3) | 47 mm |
| No./Leads | 3 qty |
| Outside Diameter (O.D.1) | 172 mm |
| Outside Diameter (O.D.2) | 166 mm |
| Outside Diameter of Windings (O.D.3) | 155.8 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Reference Information
UD49542AS AFP1500 6332A1500Video/Publications
1277A740 AC172RA301A 1277A640 A9247S A9382S A9191 AC172RA AC172RA363BAdd Your Number
