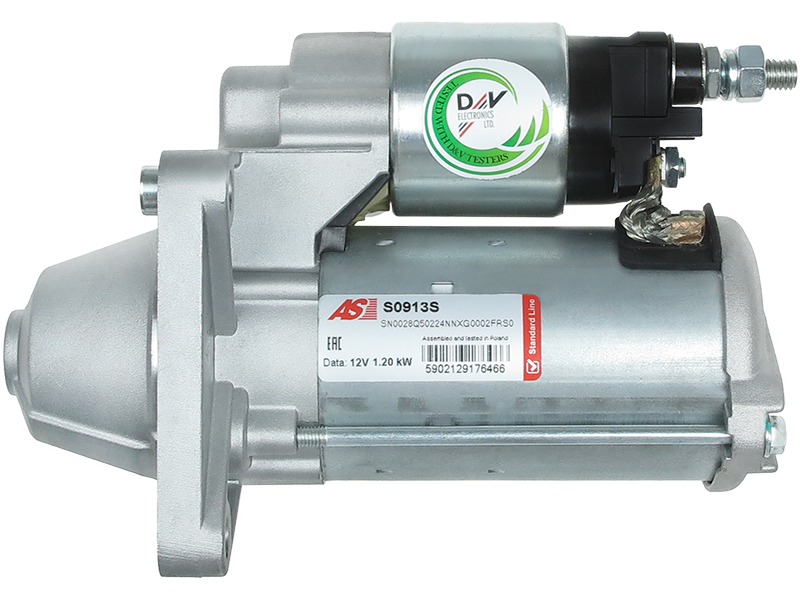

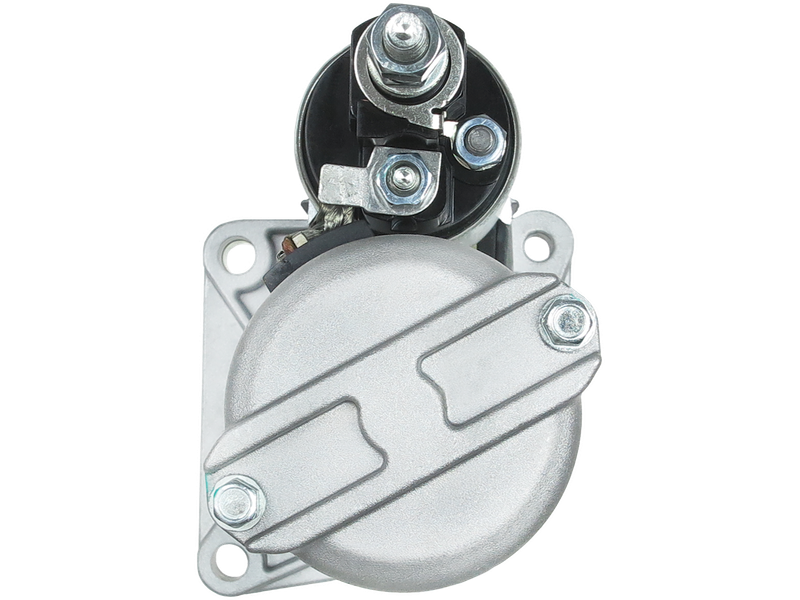

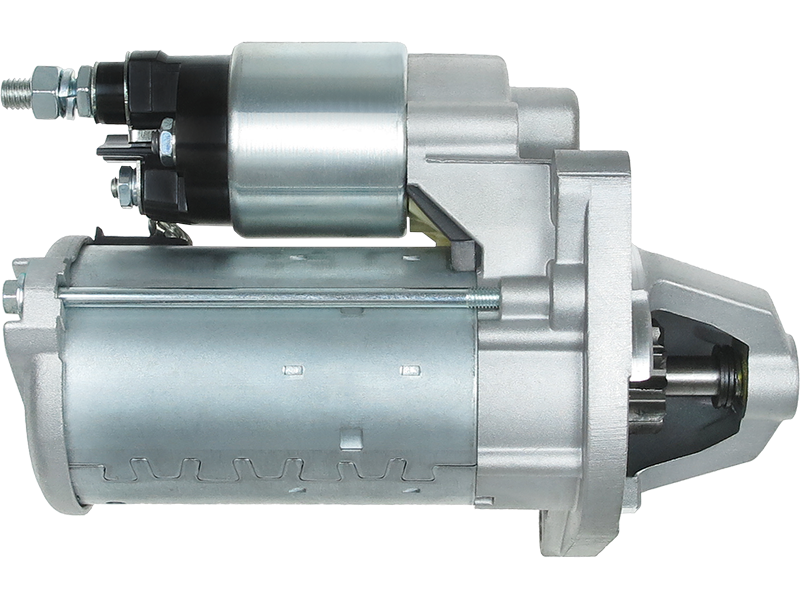

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 357.43 including GST
NZ$ 310.81 excluding GST
or four payments of $89.36
with
Learn More
each
S0913S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001192083Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 187 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 107 mm |
| Mount Hole Center - Center (O.3) | 74 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.2 | [169A4.000] | 07.2007- |
| FIAT | 500 1.2 LPG | [169A4.000] | 12.2010- |
| FIAT | 500 C 1.2 | [169A4.000] | 09.2009- |
| FIAT | Panda 1.2 | [169A4.000] | 02.2012- |
| FIAT | Panda 1.2 LPG | [169A4.000] | 06.2012- |
Reference Information
| 0001192082 | BOSCH |
| 0001192083 | BOSCH |
| 20401100OE | REAL |
| 25-5441 | ELSTOCK |
| 255943B | KUHNER |
| 332273 | LOGISTIK |
| 500.584.102.018 | PSH |
| 500.584.102.280 | PSH |
| 51974929 | FIAT |
| 519749290 | FIAT |
| 51974929F109 | FIAT |
| 6010001.1 | SANDO |
| 9880 | CEVAM |
| CST10001GS | CASCO |
| LRS04279 | LUCAS |
| LRS4279 | LUCAS |
| MAV120010 | SIOM |
| UD19702S | AS-PL |
Video/Publications
