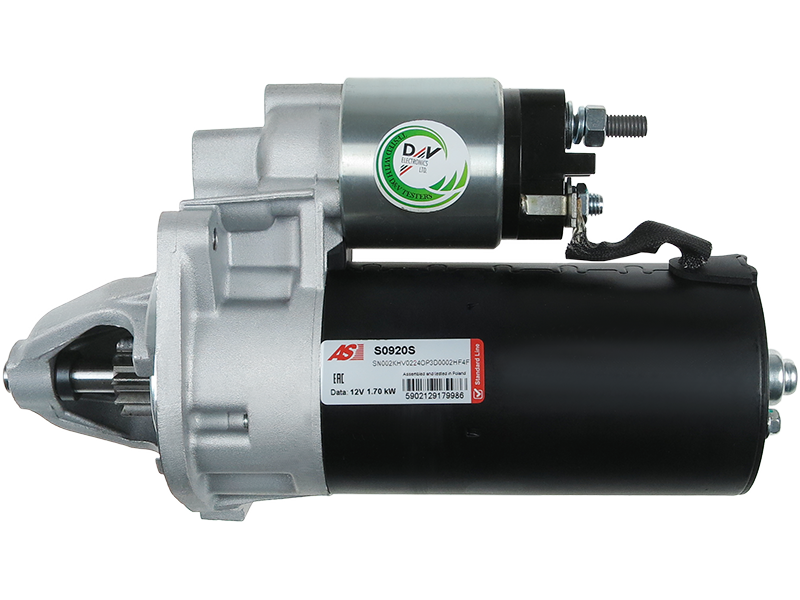

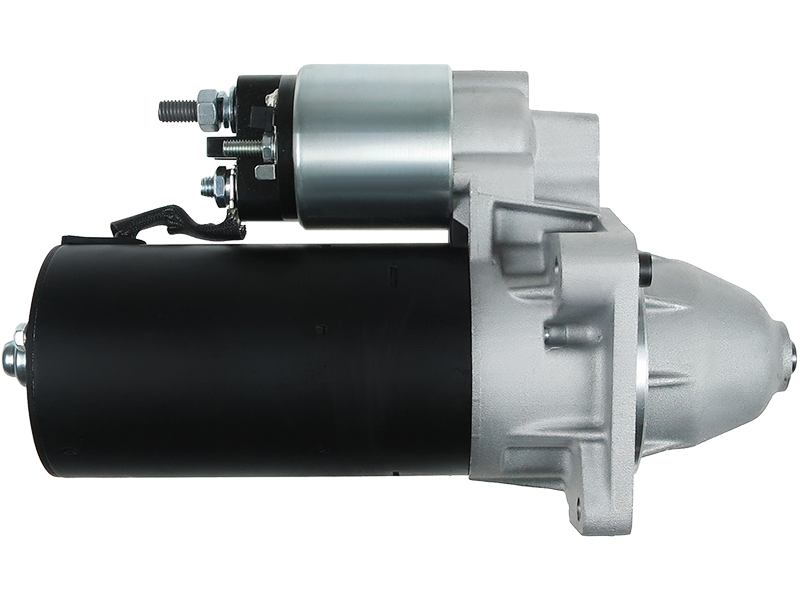

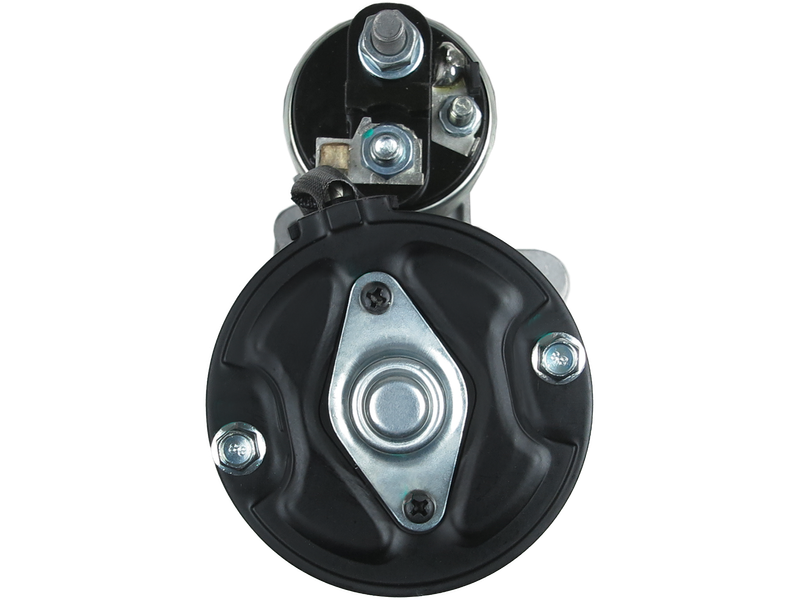

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 289.28 including GST
NZ$ 251.55 excluding GST
or four payments of $72.32
with
Learn More
each
S0920S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001110102Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 266 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Center - Center (O.2) | 75 mm |
| Mount Hole Center - Center (O.3) | 80 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 24 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Punto 1.7 D | [176B3.000] | 04.1994-09.1997 |
| FIAT | Punto 1.7 D | [176B3.000] | 04.1996-02.2000 |
| FIAT | Punto 1.7 TD | [176A3.000] | 01.1994-09.1999 |
| FIAT | Punto 1.7 TD | [176A5.000] | 01.1994-09.1999 |
| FIAT | Punto 1.7 TD | [176B7.000] | 09.1996-09.1999 |
Reference Information
| 0001110102 | BOSCH |
| 0001110124 | BOSCH |
| 063226945010 | MAGNETI MARELLI |
| 063721687010 | MAGNETI MARELLI |
| 101037 | KUHNER |
| 113752 | CARGO |
| 11682 | EAI |
| 20401841BN | REAL |
| 20401841OE | REAL |
| 20401841RC | REAL |
| 25-2166 | ELSTOCK |
| 35258840 | PRESTOLITE |
| 438053 | VALEO |
| 455873 | VALEO |
| 46430721 | FIAT |
| 46439669 | FIAT |
| 4643970 | FIAT |
| 46439700 | FIAT |
| 46440079 | FIAT |
| 46446291 | FIAT |
| 46446291 | INNOCENTI |
| 46554407 | FIAT |
| 6010148.0 | SANDO |
| 6010148.1 | SANDO |
| 6010148.2 | SANDO |
| 63226945 | MAGNETI MARELLI |
| 71723359 | FIAT |
| 71782403 | FIAT |
| 7597118 | FIAT |
| 7609068 | FIAT |
| 7692102 | FIAT |
| 7696102 | FIAT |
| 7716192 | FIAT |
| 7716766 | INNOCENTI |
| 7716766 | FIAT |
| 7770210 | FIAT |
| 8EA012526-641 | HELLA |
| 943226945010 | MAGNETI MARELLI |
| 944280168700 | MAGNETI MARELLI |
| CS1037 | HC PARTS |
| CST10148AS | CASCO |
| CST10148GS | CASCO |
| CST10148RS | CASCO |
| F032113752 | CARGO |
| LRT00150 | LUCAS |
| LRT150 | LUCAS |
| MRS16870 | MAGNETI MARELLI |
| MSR634 | MAGNETI MARELLI |
| PRSL007 | 3EFFE |
| SE138908000A | VW |
| SG0112 | GHIBAUDI |
| STR50113 | WOODAUTO |
| STRL007 | 3EFFE |
| STX200234 | STARDAX |
| STX200234R | STARDAX |
| STX200464 | STARDAX |
| STX200690 | STARDAX |
| UD101232S | AS-PL |
