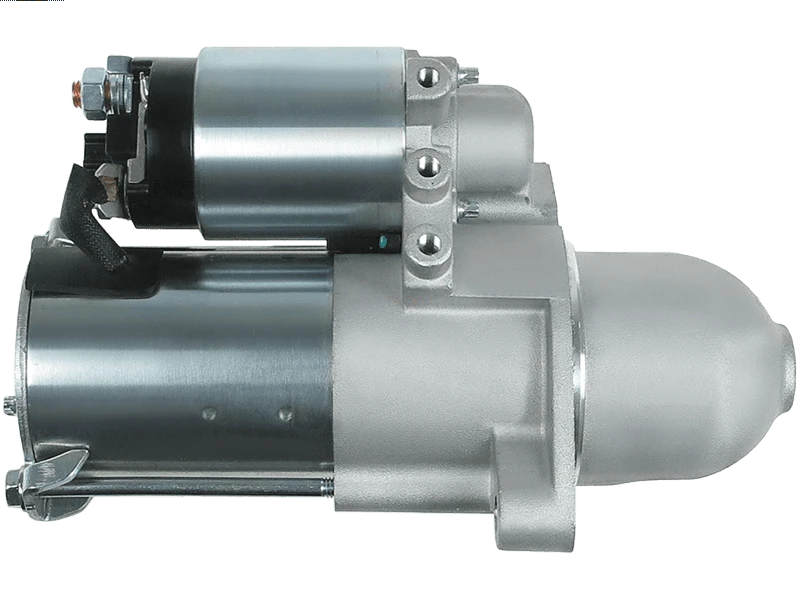

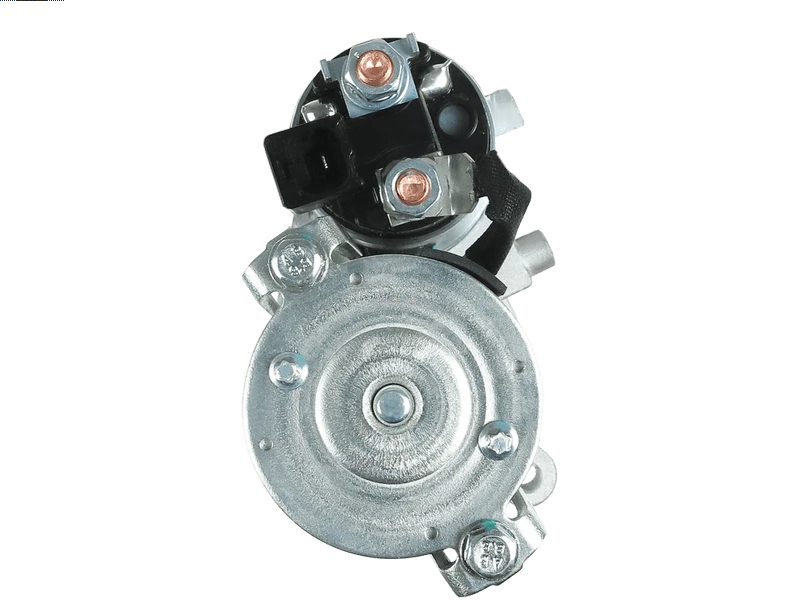

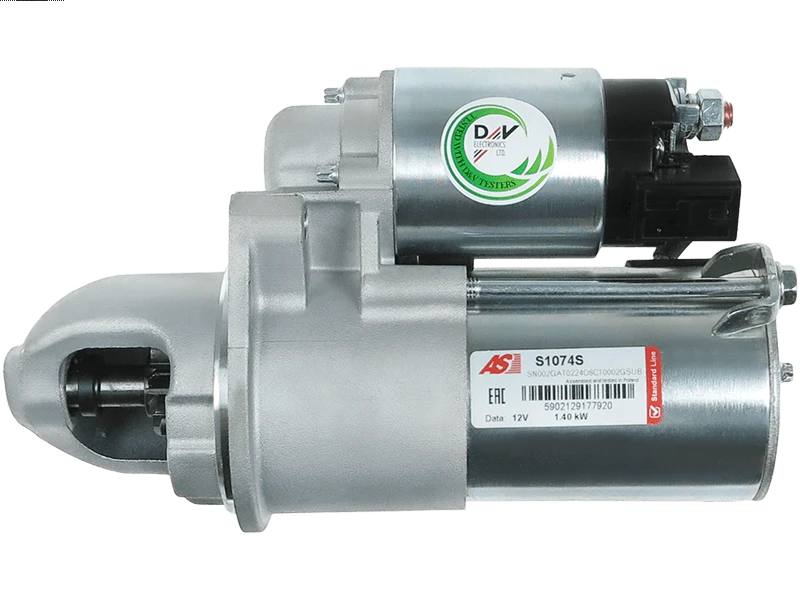

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 261.45 including GST
NZ$ 227.35 excluding GST
or four payments of $65.36
with
Learn More
UOM:
each
Product Code:
S1074S
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Information
36100-3C170Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 209 mm |
| Mount Hole Center - Center (O.1) | 100 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Genesis 3.8 V6 | [G6DA] | 01.2008-12.2014 |
| HYUNDAI | GENESIS (BH) 3.8 V6 | G6DA | 01.2008-12.2014 |
| KIA | Sorento 3.3 V6 4WD | [G6DB] | 02.2007-12.2011 |
| KIA | SORENTO I (JC) 3.3 V6 4WD | G6DB | 02.2007-12.2011 |
Reference Information
| 150.573.082.038 | WAI |
| 150.573.082.390 | WAI |
| 254916V | KUHNER |
| 25-5158 | ELSTOCK |
| 336095 | LOGISTIK |
| 361003C0200 | HYUNDAI / KIA |
| 36100-3C022 | HYUNDAI / KIA |
| 36100-3C023 | HYUNDAI / KIA |
| 36100-3C170 | HYUNDAI / KIA |
| 361003C170RU | HYUNDAI / KIA |
| 6046128.1 | SANDO |
| 6977N | WAI |
| 6977R | WAI |
| 8000308 | DELCO |
| 88215151 | POWERMAX |
| 91-01-4742 | WILSON |
| CST46128GS | CASCO |
| DRS0894 | DELCO |
| EX361003C170 | MANDO |
| LRS03996 | LUCAS |
| LRS3996 | LUCAS |
| MAV481280 | SIOM |
| PRSF020 | 3EFFE |
| S144.604 | WAI |
| STD6977 | KRAUF |
| STR2709 | ELECTROLOG |
| STR2710 | ELECTROLOG |
| STRF020 | 3EFFE |
| UD100723S | AS-PL |
