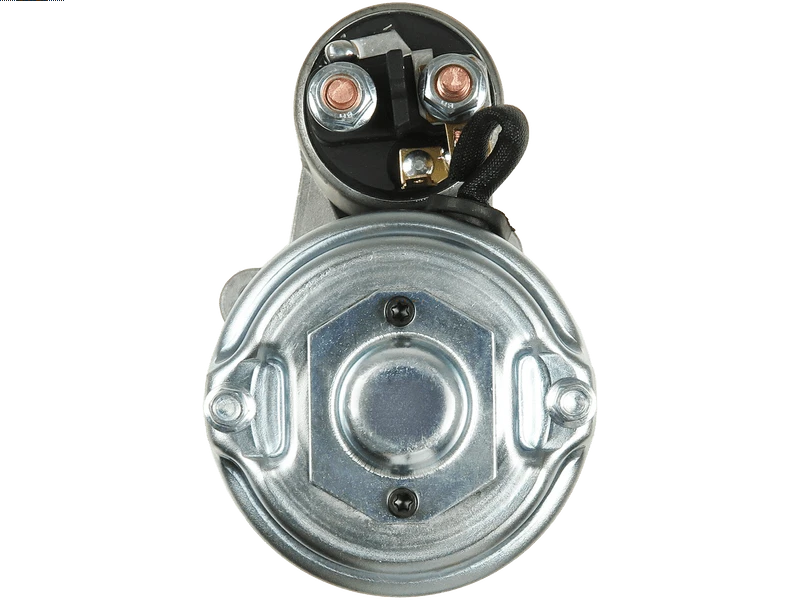

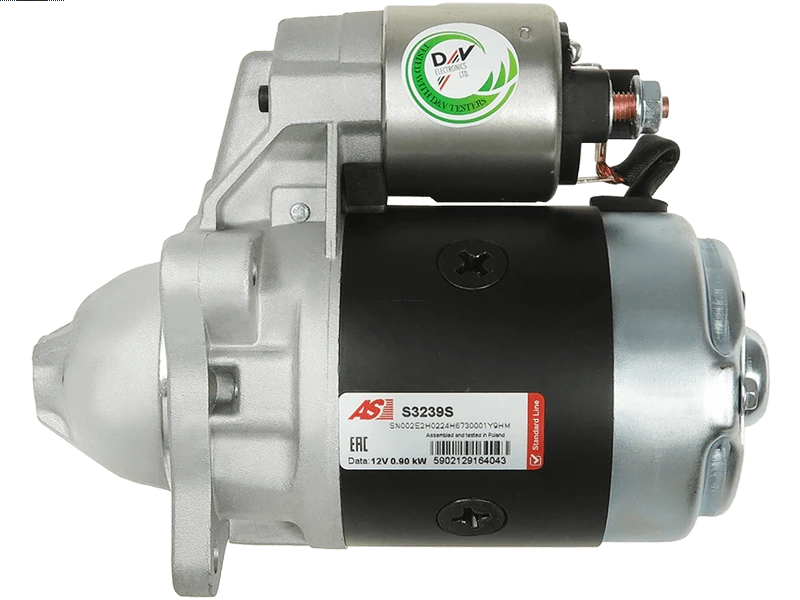

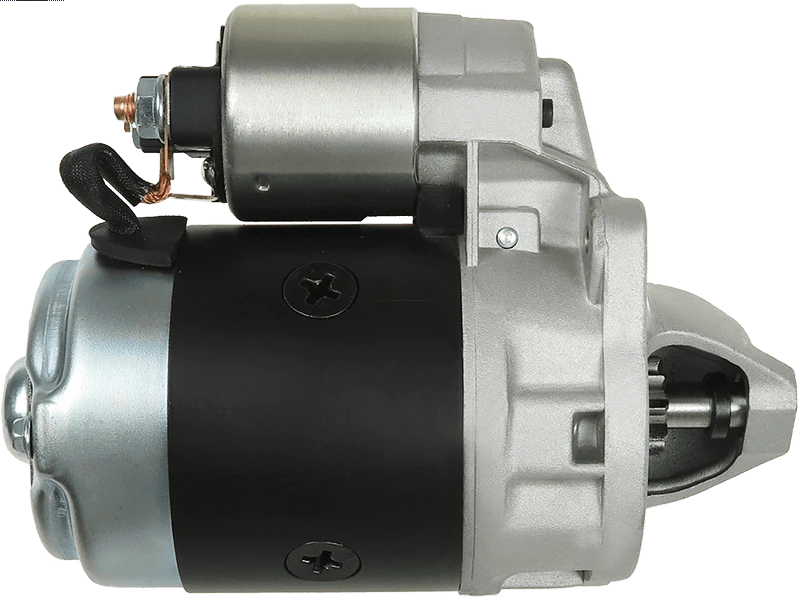

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 277.06 including GST
NZ$ 240.92 excluding GST
or four payments of $69.27
with
Learn More
each
S3239S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
D9E46Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 197 mm |
| Mount Hole Center - Center (O.1) | 75 mm |
| Mount Hole Center - Center (O.2) | 105 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 66 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | R12 1.3 | [810] | 06.1980-08.1980 |
| RENAULT | R12 1.3 | [810-06] | 06.1980-08.1980 |
| RENAULT | R12 1.3 Turbo TS | [810-06] | 06.1980-08.1980 |
| RENAULT | R4 1.1 | [688711] | 12.1981-07.1989 |
| RENAULT | R4 1.1 | [688712] | 12.1981-12.1993 |
| RENAULT | R4 1.1 | [C1E714] | 12.1981-12.1993 |
| RENAULT | R4 1.1 | [C1E718] | 12.1981-12.1993 |
| RENAULT | R4 1.1 | [C1E719] | 07.1982-12.1993 |
| RENAULT | R5 1.1 | [C1E726] | 10.1979-12.1985 |
| RENAULT | R5 1.4 | [847712] | 06.1982-09.1984 |
| RENAULT | R5 1.4 Alpine A5 | [840725] | 09.1977-09.1981 |
| RENAULT | R5 1.4 Turbo | [840730] | 06.1980-01.1985 |
| RENAULT | R5 1.4 Turbo Alpine | [840726] | 10.1981-01.1985 |
| RENAULT | R5 1.4 Turbo Alpine | [C6J750] | 10.1981-01.1985 |
| RENAULT | Trafic 1.4 | [847700] | 03.1980-04.1989 |
| RENAULT | Trafic 1.4 | [847701] | 03.1980-04.1989 |
| RENAULT | Trafic 1.4 | [C1J700] | 03.1980-10.1997 |
Reference Information
| 0986011651 | BOSCH |
| 0986011830 | BOSCH |
| 0986011838 | BOSCH |
| 10315 | KUHNER |
| 1095 | KUHNER |
| 110367 | CARGO |
| 110866 | CARGO |
| 11.130.193 | ISKRA / LETRIKA |
| 11.130.378 | ISKRA / LETRIKA |
| 11363 | EAI |
| 11364 | EAI |
| 1516730R | DAF |
| 1516822R | DAF |
| 16756R | WAI / TRANSPO |
| 20479391BN | REAL |
| 20479391RC | REAL |
| 20500463 | PRESTOLITE |
| 22.0315 | LAUBER |
| 220943 | ERA |
| 25-0319 | ELSTOCK |
| 25-1137 | ELSTOCK |
| 3500 | CEVAM |
| 432565 | VALEO |
| 433246 | VALEO |
| 433247 | VALEO |
| 5001668 | VOLVO |
| 5001669 | VOLVO |
| 534032 | DUCELLIER |
| 534047 | DUCELLIER |
| 570.010.093.008 | PSH |
| 6000559751 | DACIA |
| 6000559751 | RENAULT |
| 6015193.0 | SANDO |
| 6015193.2 | SANDO |
| 6021330030 | RENAULT |
| 7700509355 | RENAULT |
| 7700509855 | RENAULT |
| 7700543483 | RENAULT |
| 7700569256 | RENAULT |
| 7700569257 | RENAULT |
| 7700572689 | RENAULT |
| 7700622951 | RENAULT |
| 7700638420 | RENAULT |
| 7700650287 | RENAULT |
| 7700694095 | RENAULT |
| 7700694096 | RENAULT |
| 7700714640 | RENAULT |
| 7700750305 | RENAULT |
| 7700750306 | RENAULT |
| 7700751266 | RENAULT |
| 7701348964 | RENAULT |
| 7701349591 | RENAULT |
| 7701351394 | RENAULT |
| 7701351523 | RENAULT |
| 7701381633 | RENAULT |
| 7701499200 | RENAULT |
| 7701499468 | RENAULT |
| 7701499473 | RENAULT |
| 7701499649 | RENAULT |
| 7702004621 | RENAULT |
| 7702007262 | RENAULT |
| 7702046211 | RENAULT |
| 7702102137 | RENAULT |
| 7702106485 | RENAULT |
| 7702111083 | RENAULT |
| 77337430 | FIAT |
| 8011831 | FRIESEN |
| 88212926 | POWERMAX |
| 8EA726066-001 | HELLA |
| 90310434 | VOLVO |
| AES4153 | AUTOELECTRO |
| AES4163 | AUTOELECTRO |
| ANM14051X | ANDEL |
| AZF3509 | ISKRA / LETRIKA |
| AZF3545 | ISKRA / LETRIKA |
| CS315 | HC PARTS |
| CST15193AS | CASCO |
| CST15193RS | CASCO |
| D9E278 | VALEO |
| D9E46 | VALEO |
| D9E55 | VALEO |
| D9E63 | VALEO |
| D9E68 | VALEO |
| D9E78 | VALEO |
| D9E79 | VALEO |
| DM2140 | MAN |
| DM2146 | MAN |
| DM92140 | MAN |
| DRS1831 | DELCO |
| F032110367 | CARGO |
| F032110866 | CARGO |
| GS432565-A | GPARTS |
| LRS00453 | LUCAS |
| LRS00463 | LUCAS |
| LRS453 | LUCAS |
| LRS463 | LUCAS |
| MAV171510 | SIOM |
| MAV171930 | SIOM |
| MTS12-50 | FEMSA |
| ND057 | VALEO |
| PRSL074 | 3EFFE |
| RNL1183 | RNL |
| S12VA0812A2 | SIDAT |
| SS161 | SOVEREIGN |
| SS169 | SOVEREIGN |
| SS339 | SOVEREIGN |
| STR00133 | ELECTROLOG |
| STR54040 | WOODAUTO |
| STRL074 | 3EFFE |
| STX200636 | STARDAX |
| STX200690 | STARDAX |
| STX200705 | STARDAX |
| UD21378S | AS-PL |
| VS142 | VALEO |
