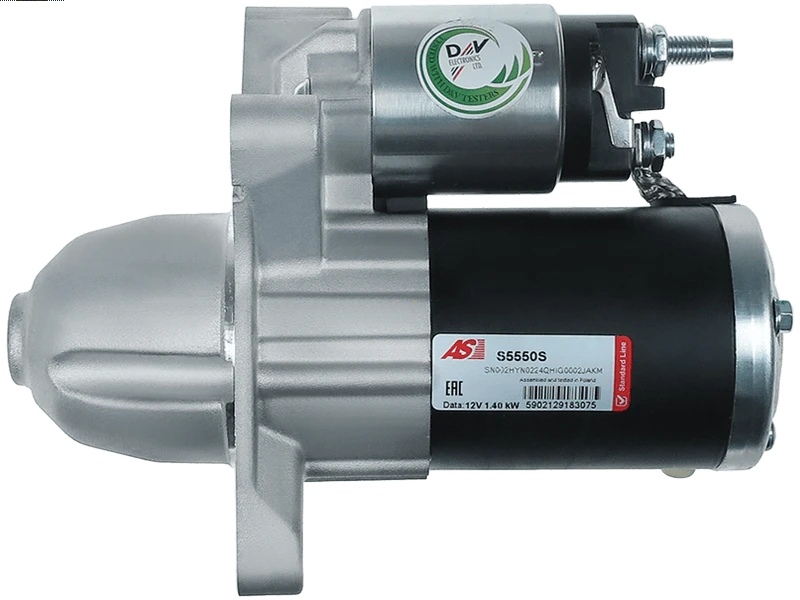

Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 207 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Center - Center (O.2) | 110 mm |
| Mount Hole Center - Center (O.3) | 143 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 29 mm |
| Spigot Diameter (A) | 70 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JEEP | Cherokee | 01.2016-12.2019 | |
| JEEP | Compass | 01.2017-12.2019 | |
| JEEP | Renegade | 01.2017-12.2019 |
Reference Information
M000T25171ZD M0T25171 M0T25171ZD 56029783AB UD100990S 56029783AA M000T25171 CST35415AS STB2690 MAV374150A 20437514BN 1172646 0001172646 56029712AB 91-27-3614 6035415Add Your Number
