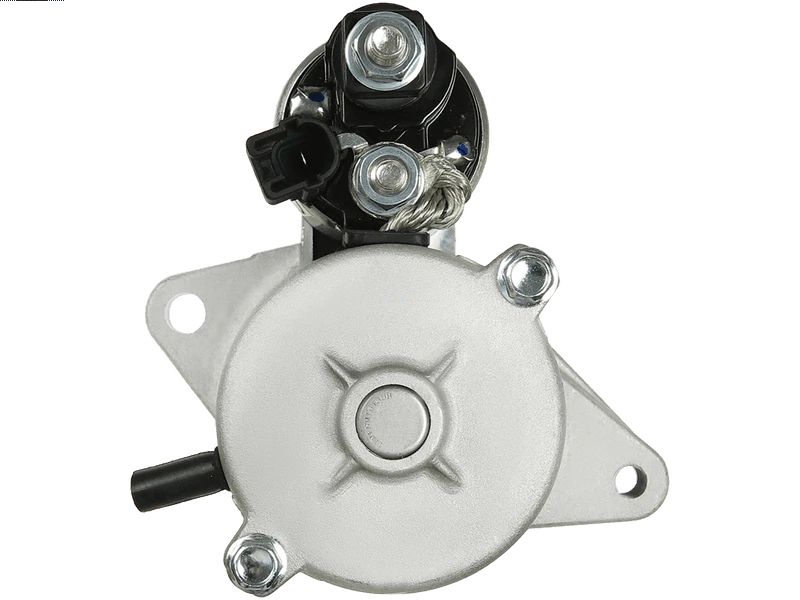

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 269.78 including GST
NZ$ 234.59 excluding GST
or four payments of $67.45
with
Learn More
each
S6477S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.70 kW |
| Length (L.1) | 181 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.0 | [1SZ-FE] | 03.2003-09.2005 |
| TOYOTA | Yaris 1.0 | [1SZ-FE] | 04.1999-09.2005 |
| TOYOTA | Yaris 1.3 | [2SZ-FE] | 04.2002-09.2005 |
Reference Information
| 113313 | CARGO |
| 12054 | EAI |
| 190.559.082.050 | PSH |
| 190.559.082.225 | PSH |
| 201299 | KUHNER |
| 228000-8350 | DENSO |
| 25-2381 | ELSTOCK |
| 28100-0J010 | TOYOTA |
| 281000J020 | TOYOTA |
| 28100-0J020 | TOYOTA |
| 28100-23020 | TOYOTA |
| 2810023030 | TOYOTA |
| 28100-23030 | TOYOTA |
| 2810023040 | TOYOTA |
| 28100-23040 | TOYOTA |
| 32452N | WAI / TRANSPO |
| 458327 | VALEO |
| 88212888 | POWERMAX |
| 8EA011610-741 | HELLA |
| 9703 | CEVAM |
| AES2215 | AUTOELECTRO |
| CGB-52381 | AINDE |
| DRS3864 | DELCO |
| F032113313 | CARGO |
| JS1299 | HC PARTS |
| LRS01452 | LUCAS |
| LRS1452 | LUCAS |
| SG0228 | GHIBAUDI |
| STM1140 | ROLLCO |
| STR6317 | ELECTROLOG |
| STR70189 | WOODAUTO |
| STX200295 | STARDAX |
| STX200295R | STARDAX |
| STX201027 | STARDAX |
| UD20945S | AS-PL |
