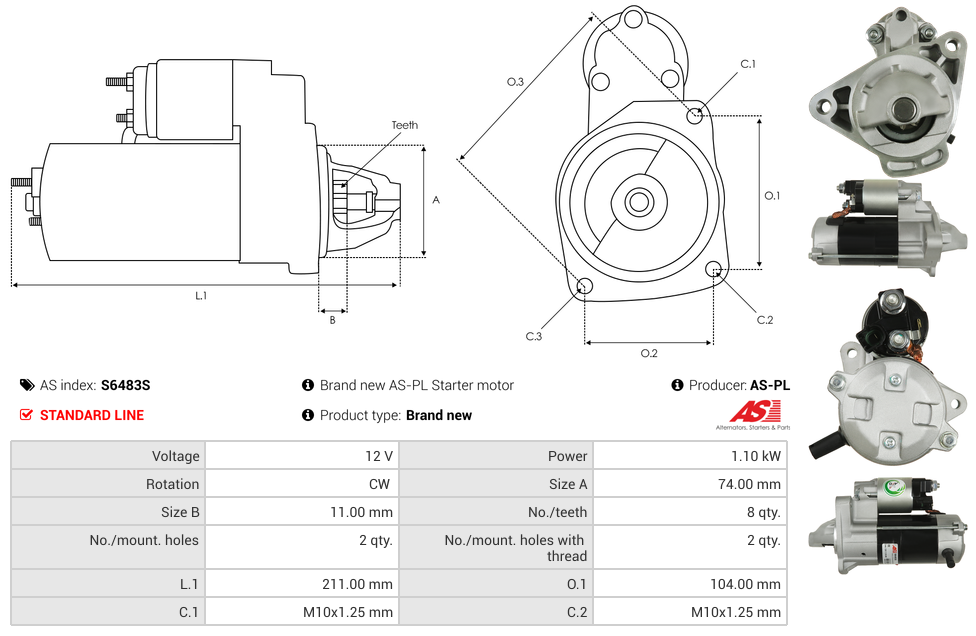

Specifications
Kilowatt | 1.1 kW |
Length (L.1) | 211 mm |
Mount Hole Center - Center (O.1) | 104 mm |
Mount Hole Diameter (C.1) | M10x1.25 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 2 qty |
No./Teeth | 8 qty |
Pinion at Rest (B) | 11 mm |
Rotation | CW |
Spigot Diameter (A) | 74 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Vios | 01.2006- |
Reference Information
428000-4330 STN2530 UD18547S 428000-4331 190.912.082.058 28100-0J041 28100-0J040Add Your Number
