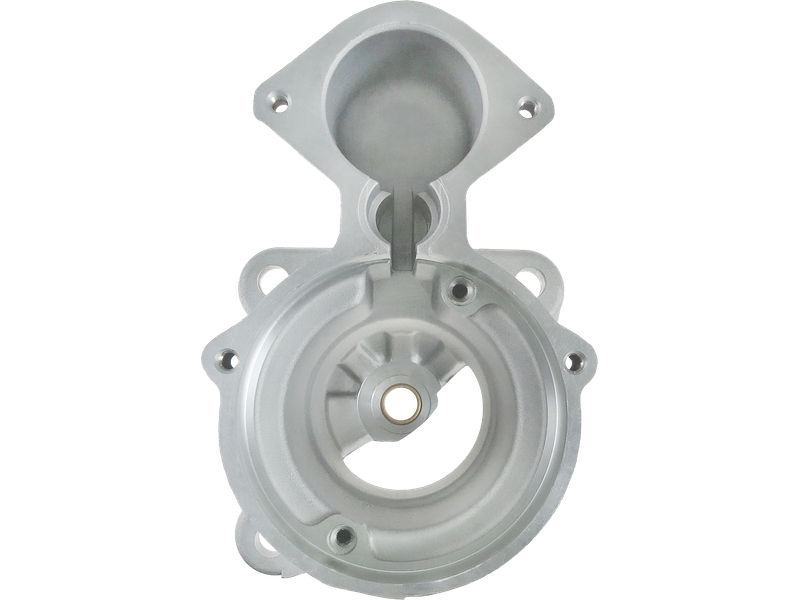

Brand new AS-PL Starter motor D.E. bracket
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 54.53 including GST
NZ$ 47.42 excluding GST
or four payments of $13.63
with
Learn More
each
SBR1030S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

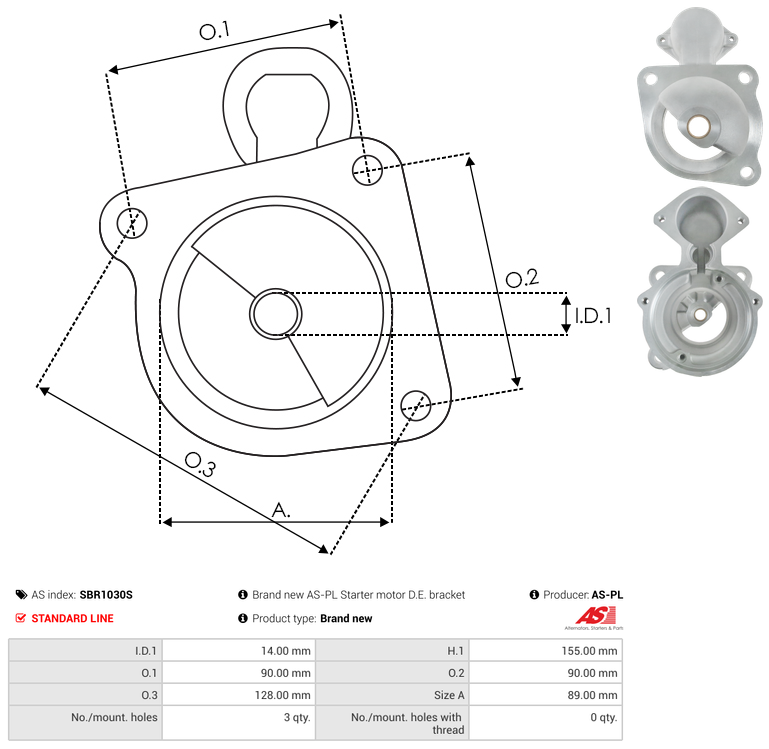

Specifications
| Height (H.1) | 155 mm |
| Inside Diameter (I.D.1) | 14 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
Reference Information
| 0-23310-1180 | NIKKO |
| 10457026 | DELCO |
| 231742 | CARGO |
| 51-8404 | WAI / TRANSPO |
| 54-01-2193 | WILSON |
| 81012391 | POWERMAX |
| BKT4442 | WOODAUTO |
| F032231742 | CARGO |
| SBD1742YJ | KRAUF |
| UD47405SBR | AS-PL |
Video/Publications
10461461 10461466 10479605 10479616 10479617 10479621 10479634 10479642 1113275 1113276 1113277 1113278 1113291 1113292 S1007 S1054 S1062View your shopping basket or Browse other items in Starter Bracket.
