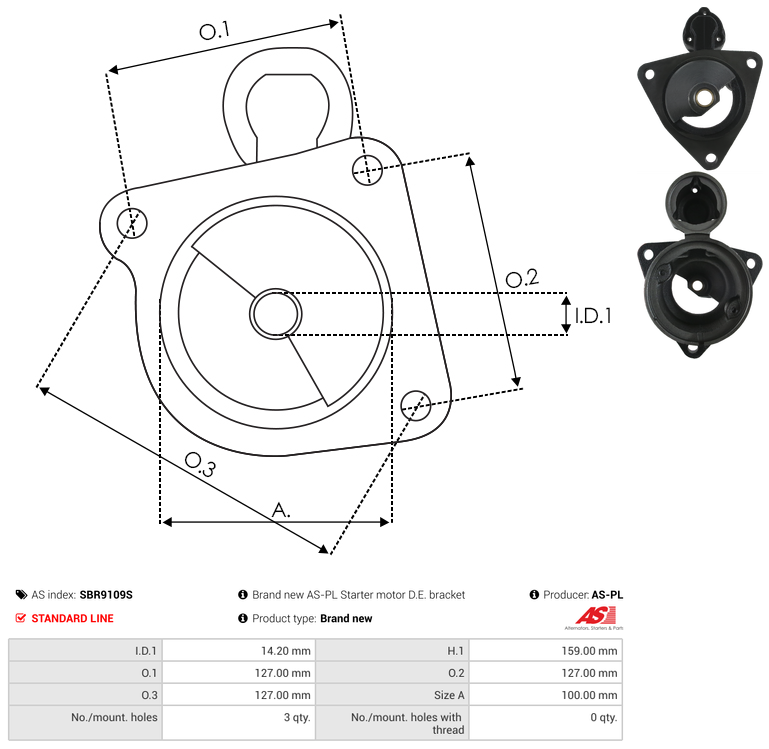

Specifications
Height (H.1) | 159 mm |
Inside Diameter (I.D.1) | 14.2 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 127 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
Spigot Diameter (A) | 100 mm |
Unit Type | ISKRA / LETRIKA |
Reference Information
UD49767SBR MSX1266 MAHMSX1266 SBI3382 16.283.287 72739965Video/Publications
S9093 11131006 AZJ3353 11132498 AZJ3484Add Your Number
