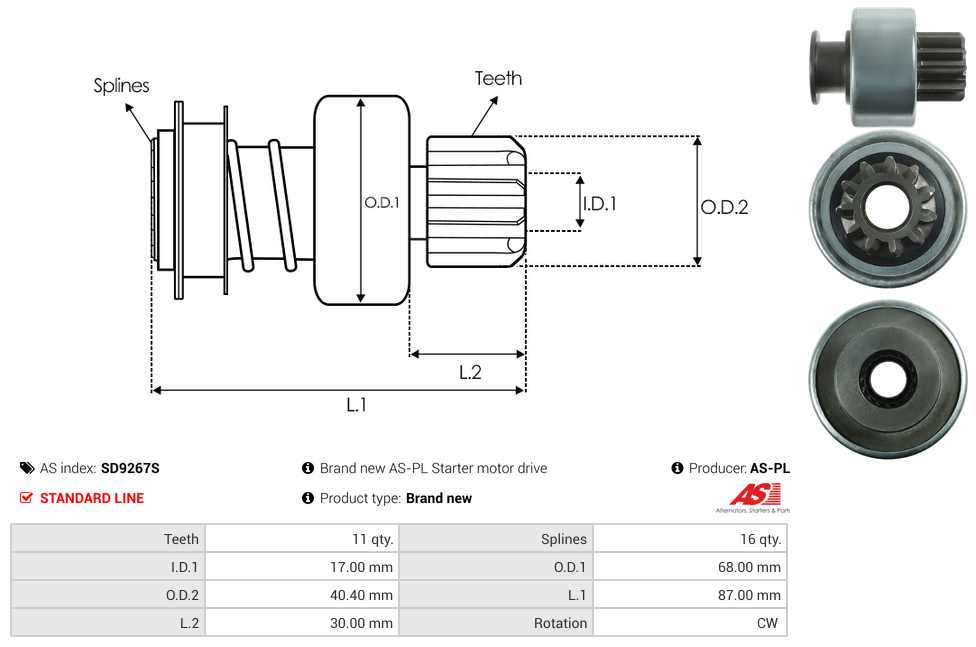

Specifications
Inside Diameter (I.D.1) | 17 mm |
Length (L.1) | 87 mm |
Length (L.2) | 30 mm |
No./Splines | 16 qty |
No./Teeth | 11 qty |
Outside Diameter (O.D.1) | 68 mm |
Outside Diameter (O.D.2) | 40.4 mm |
Rotation | CW |
Unit Type | SAWAFUJI |
Reference Information
28011-1490 UD48819SD SDW4816Video/Publications
S9124 S9264 3506020410 03506020610 3506020610 03506020410 3506020330Add Your Number
