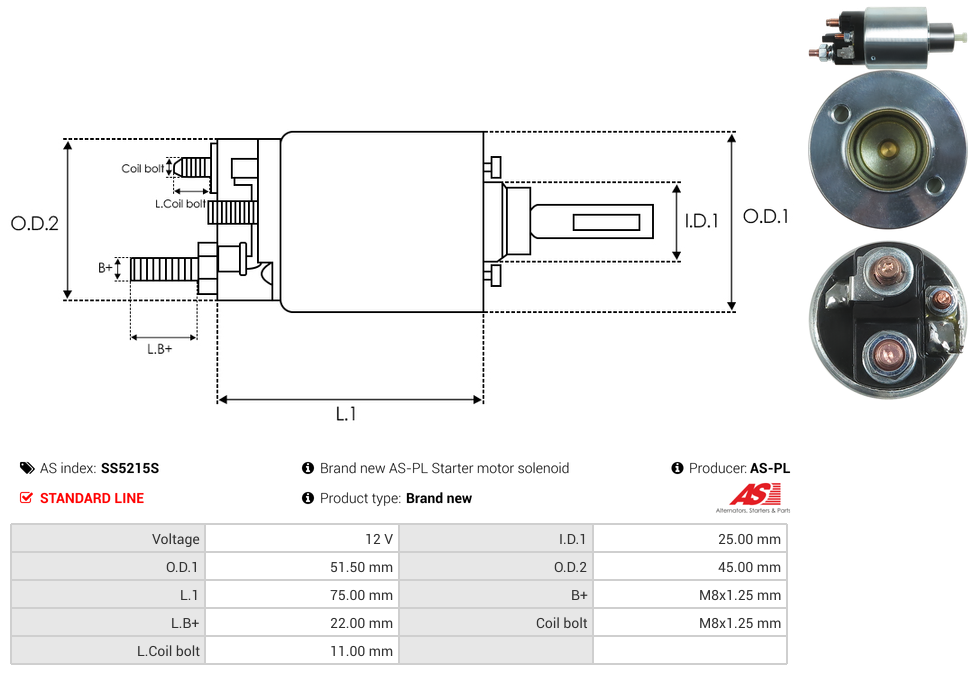

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 11 mm |
| Inside Diameter (I.D.1) | 25 mm |
| L.B+ | 22 mm |
| Length (L.1) | 75 mm |
| Outside Diameter (O.D.1) | 51.5 mm |
| Outside Diameter (O.D.2) | 45 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Reference Information
SSM0176 054.001.291.206 UD18634SS ZM8995 330176 054.001.291.590Video/Publications
M000T22472 M000T22473 M000T22471 S5494S M0T22471 M0T22472 M0T22473Add Your Number
