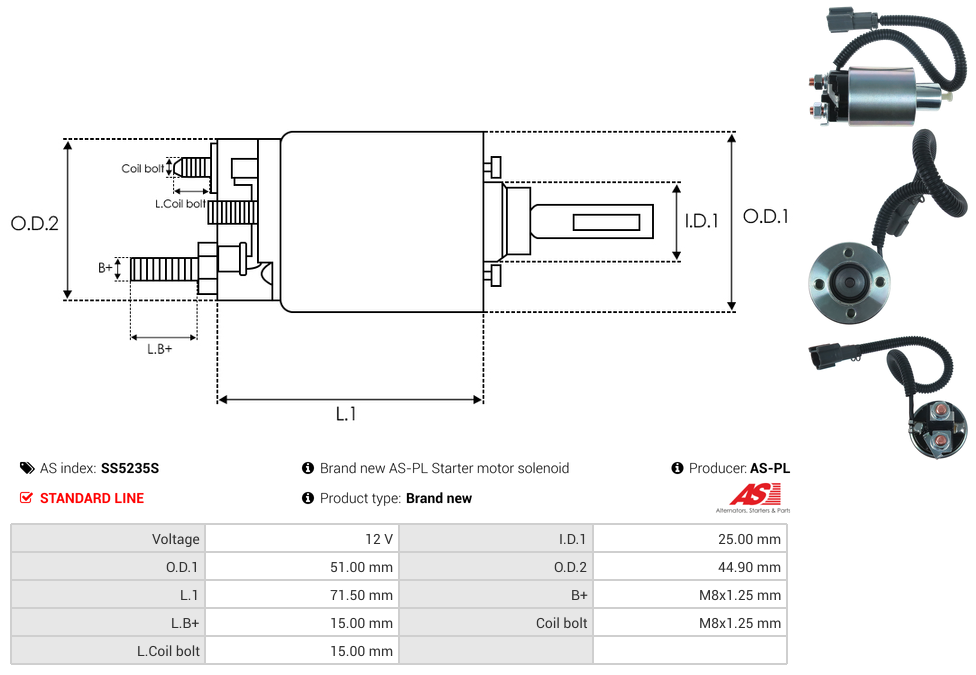

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 15 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 15 mm |
Length (L.1) | 71.5 mm |
Outside Diameter (O.D.1) | 51 mm |
Outside Diameter (O.D.2) | 44.9 mm |
Unit Type | MITSUBISHI |
Voltage | 12 V |
Reference Information
23343-4S100 SSM5571 UD101227SS UD101228SSVideo/Publications
M000T60187 M000T60186 M000T60185 M0T87481 M0T60186 M000T87481 M0T60187 M0T60187ZC M0T87481ZC M000T60187ZC M000T87481ZC M0T60185Add Your Number
