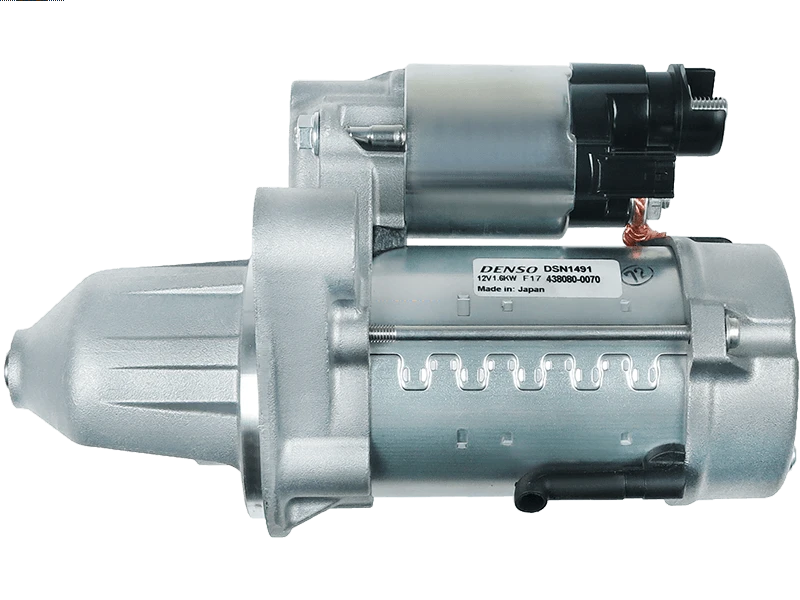

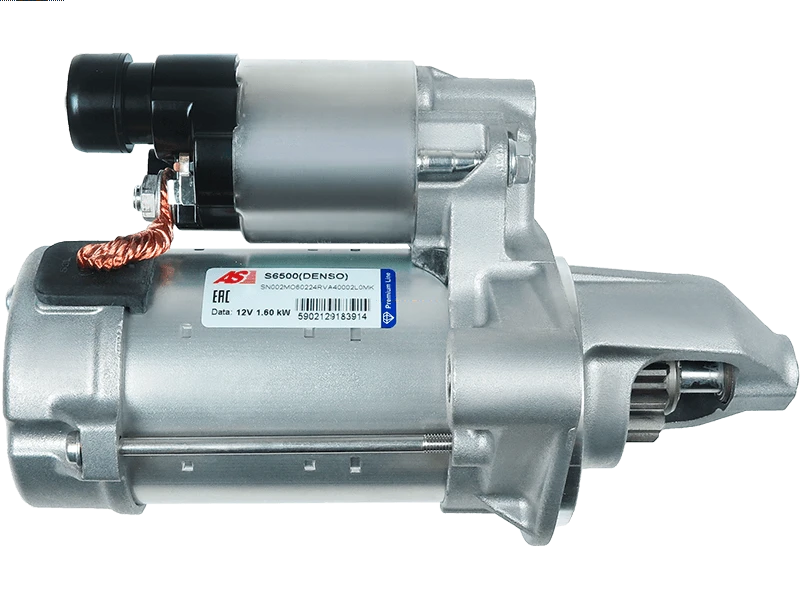

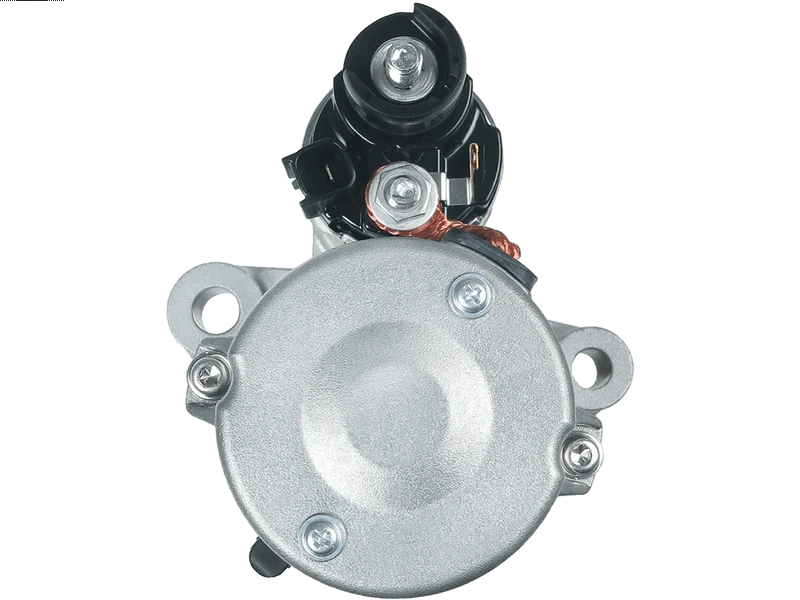

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 615.10 including GST
NZ$ 534.87 excluding GST
or four payments of $153.78
with
Learn More
each
S6500(DENSO)
No stock in NZ currently
No stock in NZ currently
Information
DSN1491Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 217 mm |
| Mount Hole Center - Center (O.1) | 107 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 33 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Civic 1.6 i-DTEC | [N16A1] | 01.2014- |
| HONDA | Civic 1.6 i-DTEC | [N16A1] | 01.2018- |
| HONDA | Civic 1.6 i-DTEC | [N16A1] | 02.2013- |
| HONDA | Civic 1.6 i-DTEC | [N16A1] | 05.2018- |
| HONDA | CR-V 1.6 i-DTEC | [N16A1] | 10.2013- |
| HONDA | CR-V 1.6 i-DTEC | [N16A2] | 10.2013- |
| HONDA | CR-V 1.6 i-DTEC 4WD | [N16A4] | 02.2015- |
| HONDA | HR-V 1.6 i-DTEC | [N16A3] | 08.2015- |
Reference Information
| 0986026720 | BOSCH |
| 11041025 | EUROTEC |
| 120.572.132.050 | PSH |
| 120.572.132.260 | PSH |
| 120.572.132.440 | PSH |
| 120.572.132.441 | PSH |
| 12586 | EAI |
| 1986S10197 | BOSCH |
| 20432510OE | REAL |
| 25-5103 | ELSTOCK |
| 256827D | KUHNER |
| 31030N | WAI / TRANSPO |
| 31030-OS | WAI / TRANSPO |
| 31200-RZ0-G01 | HONDA |
| 322075132 | DRI |
| 438000-0070 | DENSO |
| 438080-0070 | DENSO |
| 4726012 | NK |
| 586ST21 | STARTCAR |
| 6040015.1 | SANDO |
| 8026720 | FRIESEN |
| 88214940 | POWERMAX |
| 9768 | CEVAM |
| ANM99853 | ANDEL |
| BREF0321986S10197 | CARWOOD GROUP |
| CST40015GS | CASCO |
| DENDSN1491 | WOODAUTO |
| DRS0923 | DELCO |
| DSN1491 | DENSO |
| HO9035 | SNRA |
| LRS03940 | LUCAS |
| LRS3940 | LUCAS |
| MAV420150 | SIOM |
| PYDUJ | HONDA |
| PYDUJ-88 | HONDA |
| S103049 | BTS TURBO |
| S143.834 | PSH |
| ST02067 | TMI |
| STN3261 | KRAUF |
| UD816052(DENSO)S | AS-PL |
| WG2270703 | WILMINK GROUP |
| WST00795 | WALKER |
