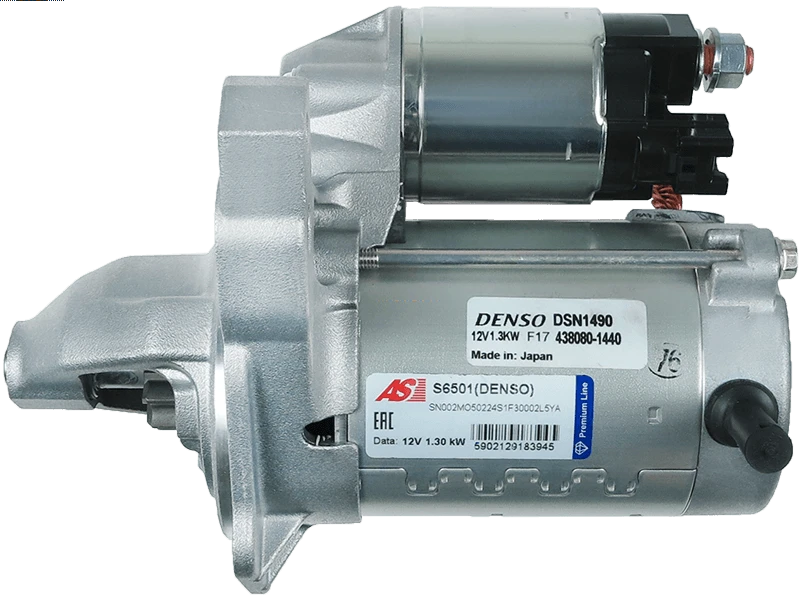

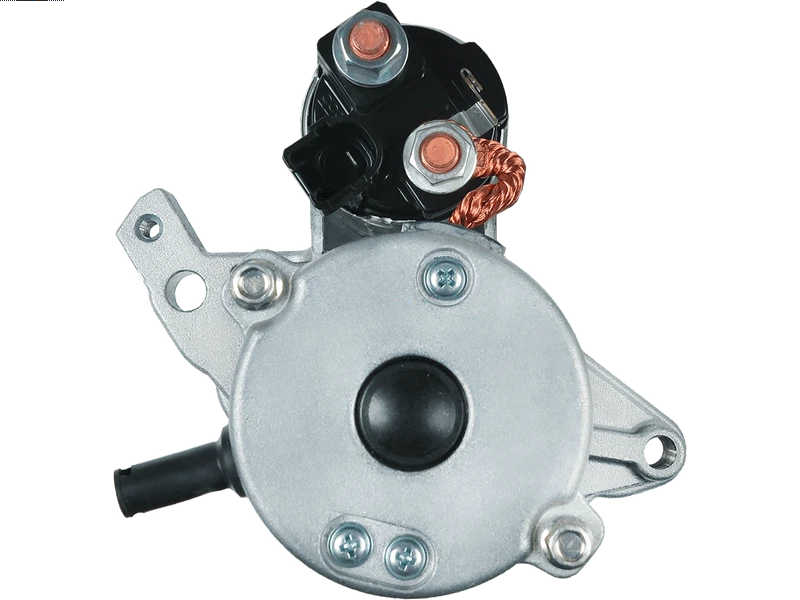

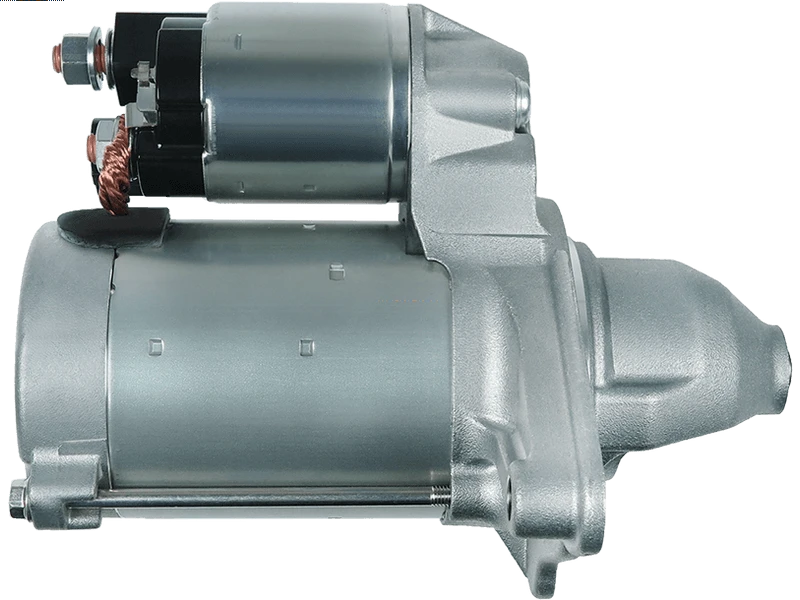

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 705.42 including GST
NZ$ 613.41 excluding GST
or four payments of $176.36
with
Learn More
each
S6501(DENSO)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
DSN1490Specifications
| Kilowatt | 1.30 kW |
| Length (L.1) | 180 mm |
| Mount Hole Center - Center (O.1) | 138 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 10 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 24 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.3 | [1NR-FE] | 09.2011- |
| TOYOTA | Yaris 1.3 | [1NR-FKE] | 09.2011- |
| TOYOTA | Yaris 1.3 VVTi | [1NR-FE] | 10.2012- |
| TOYOTA | Yaris 1.5 | [2NR-FKE] | 03.2017- |
| TOYOTA | Yaris 1.5 VVTi | [2NR-FKE] | 03.2017- |
Reference Information
| 041242 | DA SILVA |
| 190.963.102.050 | PSH |
| 190.963.102.261 | PSH |
| 20432610OE | REAL |
| 25-5268 | ELSTOCK |
| 257110D | KUHNER |
| 28100-0Y130 | TOYOTA |
| 28100-47240 | TOYOTA |
| 30-1996 | AIRSTAL |
| 31032N | WAI / TRANSPO |
| 31032N-OE | WAI / TRANSPO |
| 335262102 | DRI |
| 438000-1440 | DENSO |
| 438000-1900 | DENSO |
| 438080-1440 | DENSO |
| 4745026 | NK |
| 6040016.1 | SANDO |
| 828ST21 | STARTCAR |
| 830513023 | TRISCAN |
| 88215043 | POWERMAX |
| 9804 | CEVAM |
| AC-CBS6097 | ACAUTO |
| AEY4105 | AUTOELECTRO |
| DENDSN1490 | WOODAUTO |
| DRS1302 | DELCO |
| DSN1490 | DENSO |
| LRS04105 | LUCAS |
| LRS4105 | LE PART |
| LRS4106 | LUCAS |
| MAV420160 | SIOM |
| S103048 | BTS TURBO |
| S145.561 | PSH |
| ST02222 | TMI |
| STX201539R | STARDAX |
| TO9117 | SNRA |
| UD816051(DENSO)S | AS-PL |
| UD90838S | AS-PL |
| WRM40016OE | WROOM |
| WST00633 | WALKER |
