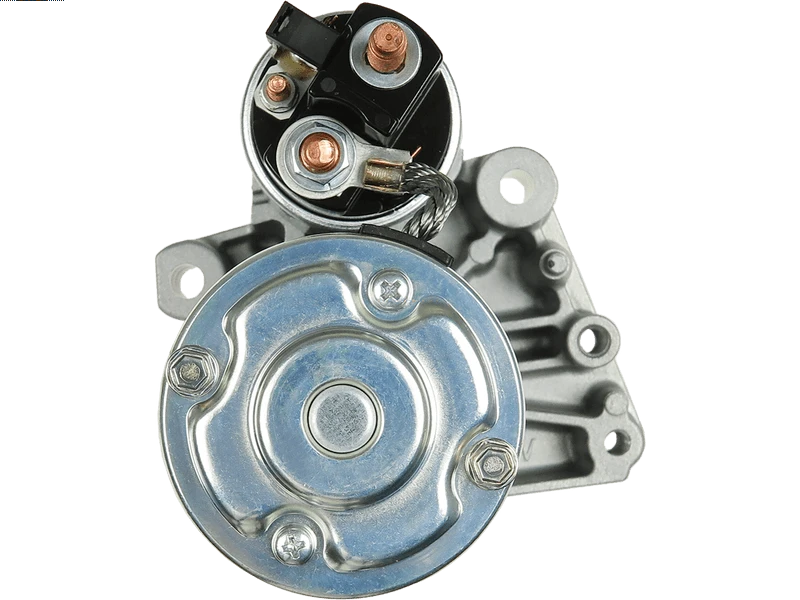

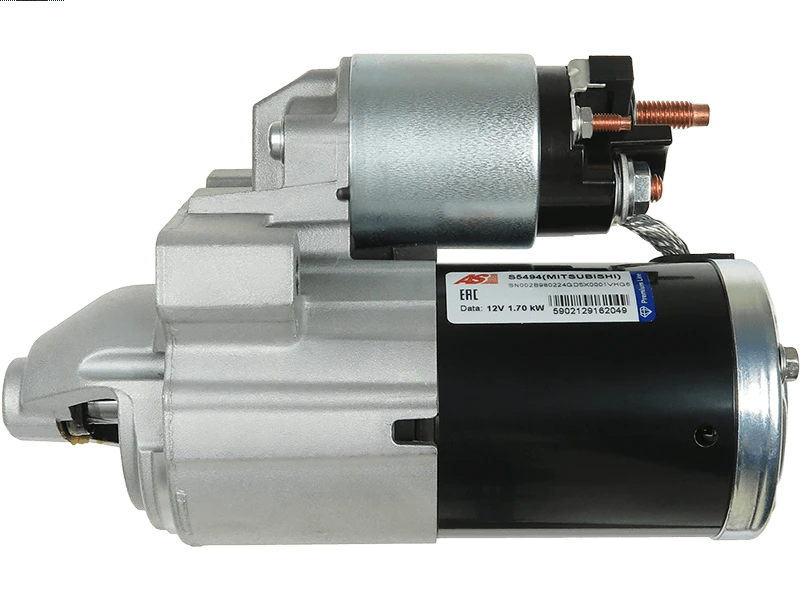

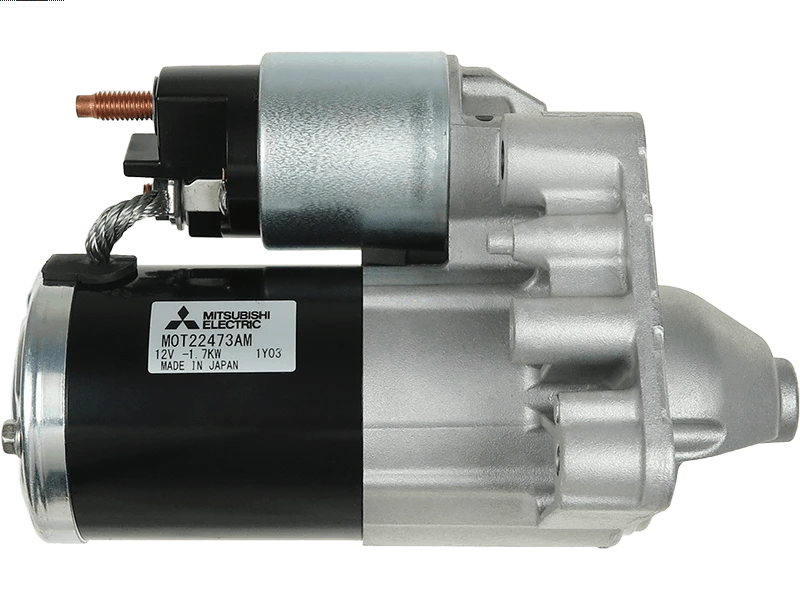

S5494(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Name: Brand new OEM MITSUBISHI Starter motor
Brand: AS GROUP NZ
SKU: S5494(MITSUBISHI)
Price: 447.20 NZD
Availability: SoldOut

Brand new OEM MITSUBISHI Starter motor

PREMIUM LINE

Manufacturer:

Mitsubishi

Replacement For:

MITSUBISHI

Price:

NZ$ 447.20 including GST

NZ$ 388.87 excluding GST

or four payments of $111.80 with
Learn More

UOM:

each

Product Code:

S5494(MITSUBISHI)

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

No stock in NZ currently

Specifications
Vehicle Applications
Reference Information
Video/Publications

Kilowatt	1.70 kW
Length (L.1)	197 mm
Mount Hole Center - Center (O.1)	125 mm
Mount Hole Center - Center (O.2)	30 mm
Mount Hole Center - Center (O.3)	46 mm
Mount Hole Center - Center (O.4)	91 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
Mount Hole Diameter (C.4)	9 mm
No./Mount holes	4 qty
No./Mount holes with thread	2 qty
No./Teeth	12 qty
OEM Product	Yes
Pinion at Rest (B)	14 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	65.50 mm
Unit Type	MITSUBISHI
Voltage	12 V

Make	Model	Type	Year
CITROEN	Berlingo 1.6 BlueHDi 100	[BHY(DV6FD)]	12.2014-
CITROEN	Berlingo 1.6 BlueHDi 120	[BHZ(DV6FC)]	12.2014-
CITROEN	Berlingo 1.6 BlueHDi 75	[9HN(DV6ETED)]	04.2008-
CITROEN	Berlingo 1.6 BlueHDi 75	[9HN(DV6ETED)]	07.2010-
CITROEN	Berlingo 1.6 BlueHDi 75	[BHW(DV6FE)]	04.2008-
CITROEN	Berlingo 1.6 BlueHDi 75	[BHW(DV6FE)]	07.2010-
CITROEN	Berlingo 1.6 HDi	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 110	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 110	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 115	[9HL(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 115	[9HR(DV6C)]	07.2010-
CITROEN	Berlingo 1.6 HDi 4x4	[9HF(DV6DTED)]	02.2012-
CITROEN	Berlingo 1.6 HDi 4x4	[BHY(DV6FD)]	12.2014-
CITROEN	Berlingo 1.6 HDi 4x4		02.2012-
CITROEN	Berlingo 1.6 HDi 90	[9HF(DV6DTED)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HP(DV6DTED)]	07.2010-
CITROEN	Berlingo 1.6 HDi 90	[9HX(DV6ATED4)]	07.2010-
CITROEN	Berlingo Multispace MPV 1.6 HDi 4x4	[9HF(DV6DTED)]	02.2012-12.2014
CITROEN	Berlingo Multispace MPV 1.6 HDi 4x4	[9HR(DV6C)]	02.2012-
CITROEN	C1 1.4 HDi	[DV4D]	06.2005-09.2014
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	07.2003-12.2009
CITROEN	C2 1.4 HDi	[8HX(DV4TD)]	09.2003-04.2005
CITROEN	C2 1.4 HDi	[8HZ(DV4TD)]	07.2003-12.2009
CITROEN	C3 1.4 HDi	[8HR(DV4C)]	06.2010-09.2016
CITROEN	C3 1.4 HDi	[8HR(DV4C)]	11.2009-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	02.2002-
CITROEN	C3 1.4 HDi	[8HX(DV4TD)]	04.2004-
CITROEN	C3 1.4 HDi 16V	[8HY(DV4TED4)]	02.2002-
CITROEN	C3 1.6 BlueHDi 100	[BHY(DV6FD)]	01.2015-
CITROEN	C3 1.6 HDi	[9HP(DV6DTED)]	11.2009-09.2016
CITROEN	C3 1.6 HDi 16V	[9HX(DV6ATED4)]	10.2005-
CITROEN	C3 1.6 HDi 16V	[9HZ(DV6TED4)]	09.2005-
CITROEN	C3 Picasso 1.6 HDi	[9HZ(DV6TED4)]	02.2009-
CITROEN	C3 Picasso 1.6 HDi 110	[9HR(DV6C)]	05.2010-
CITROEN	C3 Picasso 1.6 HDi 115	[9HD(DV6C)]	01.2013-
CITROEN	C4 1.6 BlueHDi	[BHZ(DV6FC)]	02.2015-
CITROEN	C4 1.6 BlueHDi 120	[BHZ(DV6FC)]	02.2015-
CITROEN	C4 1.6 CDTi 16V 115	[BHX(DV6FC)]	08.2014-
CITROEN	C4 1.6 HDi	[9HP(DV6DTED)]	06.2010-
CITROEN	C4 1.6 HDi	[9HR(DV6C)]	11.2009-
CITROEN	C4 1.6 HDi	[9HX(DV6ATED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi	[9HY(DV6ATED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi	[9HY(DV6TED4)]	07.2006-07.2011
CITROEN	C4 1.6 HDi	[9HZ(DV6ATED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	07.2006-07.2011
CITROEN	C4 1.6 HDi	[9HZ(DV6TED4)]	11.2004-07.2011
CITROEN	C4 1.6 HDi 115	[9HC(DV6C)]	09.2013-
CITROEN	C4 1.6 HDi 115	[BHX(DV6FC)]	09.2013-
CITROEN	C4 Grand Picasso 1.6 HDi	[9HY(DV6TED4)]	10.2006-06.2011
CITROEN	C4 Grand Picasso 1.6 HDi	[9HZ(DV6TED4)]	10.2006-06.2011
CITROEN	C4 Grand Spacetourer 1.6 HDi	[9HC(DV6C)]	04.2018-
CITROEN	C4 Picasso 1.6 e-HDi	[9HC(DV6C)]	02.2013-
CITROEN	C4 Picasso 1.6 e-HDi	[9HP(DV6DTED)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi	[9HY(DV6TED4)]	02.2007-08.2013
CITROEN	C4 Picasso 1.6 HDi	[9HZ(DV6TED4)]	02.2007-08.2013
CITROEN	C4 Picasso 1.6 HDi 110	[9HL(DV6C)]	09.2010-08.2013
CITROEN	C4 Picasso 1.6 HDi 110	[9HR(DV6C)]	09.2010-08.2013
CITROEN	C4 Picasso 1.6 HDi 115	[9HC(DV6C)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 115	[BHX(DV6FC)]	02.2013-
CITROEN	C4 Picasso 1.6 HDi 90	[9HP(DV6DTED)]	02.2013-
CITROEN	C4 Spacetourer 1.6 BlueHDi 120	[BHZ(DV6FC)]	05.2019-
CITROEN	C5 1.6 HDi	[9HR(DV6C)]	07.2010-
CITROEN	C5 1.6 HDi	[9HY(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	02.2008-
CITROEN	C5 1.6 HDi	[9HZ(DV6TED4)]	09.2004-
CITROEN	C5 1.6 HDi 115	[9HR(DV6C)]	01.2012-
CITROEN	DS3 1.4 HDi 70	[8HR(DV4C)]	04.2010-07.2015
CITROEN	DS3 1.6 HDi	[9HP(DV6DTED)]	11.2009-07.2015
CITROEN	DS3 1.6 HDi	[9HR(DV6C)]	11.2009-07.2015
CITROEN	DS3 1.6 HDi 115	[9HL(DV6C)]	08.2012-07.2015
CITROEN	DS3 1.6 HDi 90	[9HP(DV6DTED)]	01.2013-07.2015
CITROEN	DS4 1.6 BlueHDi 115	[BHX(DV6FC)]	07.2014-07.2015
CITROEN	DS4 1.6 BlueHDi 120	[BHZ(DV6FC)]	07.2014-07.2015
CITROEN	DS4 1.6 HDi 110	[9HR(DV6C)]	04.2011-07.2015
CITROEN	DS4 1.6 HDi 115	[9HL(DV6C)]	08.2012-07.2015
CITROEN	DS4 1.6 HDi 90	[9HP(DV6DTED)]	05.2011-07.2015
CITROEN	DS4 1.6 THP 200	[5FU(EP6DTX)]	04.2011-07.2015
CITROEN	DS5 1.6 HDi 110	[9HR(DV6C)]	11.2011-07.2015
CITROEN	DS5 1.6 HDi 115	[9HD(DV6C)]	06.2012-07.2015
CITROEN	Nemo 1.4 HDi	[8HS(DV4TD)]	02.2008-
CITROEN	Nemo 1.4 HDi	[8HS(DV4TED)]	04.2009-
CITROEN	Xsara Picasso 1.6 HDi	[9HY(DV6TED4)]	05.2004-12.2011
CITROEN	Xsara Picasso 1.6 HDi	[9HZ(DV6TED4)]	05.2004-12.2011
PEUGEOT	1007 1.4 HDi	[8HX(DV4TD)]	04.2005-
PEUGEOT	1007 1.4 HDi	[8HZ(DV4TD)]	04.2005-
PEUGEOT	107 1.4 HDi	[8HT(DV4TD)]	06.2005-05.2014
PEUGEOT	2008 1.4 HDi	[8HR(DV4C)]	06.2013-
PEUGEOT	2008 1.6 HDi	[9HD(DV6CTED)]	03.2013-
PEUGEOT	206 1.4 HDi	[8HX(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi	[8HZ(DV4TD)]	09.2001-03.2009
PEUGEOT	206 1.4 HDi eco	[8HX(DV4TD)]	09.2001-04.2009
PEUGEOT	206 1.4 HDi eco	[8HZ(DV4TD)]	09.2001-04.2009
PEUGEOT	206 1.4 HDi eco 70	[8HZ(DV4TD)]	09.2008-
PEUGEOT	206 1.6 HDi	[9HZ(DV6TED4)]	04.2005-02.2007
PEUGEOT	206 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-02.2007
PEUGEOT	206 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-
PEUGEOT	206 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-02.2007
PEUGEOT	207 1.4 HDi	[8HR(DV4C)]	02.2006-12.2015
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	02.2006-12.2015
PEUGEOT	207 1.4 HDi	[8HZ(DV4TD)]	04.2007-
PEUGEOT	207 1.6 HDi	[9HP(DV6DTED)]	11.2009-
PEUGEOT	207 1.6 HDi	[9HP(DV6DTED)]	11.2009-12.2012
PEUGEOT	207 1.6 HDi	[9HR(DV6C)]	08.2009-12.2012
PEUGEOT	207 1.6 HDi	[9HV(DV6ATED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HV(DV6TED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HX(DV6ATED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HY(DV6TED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2006-10.2013
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	02.2007-01.2015
PEUGEOT	207 1.6 HDi	[9HZ(DV6TED4)]	06.2007-12.2012
PEUGEOT	207 SW 1.6 HDi	[9HP(DV6DTED)]	11.2009-12.2012
PEUGEOT	207 SW 1.6 HDi	[9HR(DV6C)]	08.2009-10.2013
PEUGEOT	208 1.4 HDi	[8HP(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	03.2012-
PEUGEOT	208 1.4 HDi	[8HR(DV4C)]	10.2012-
PEUGEOT	208 1.6 HDi	[9HD(DV6CTED)]	03.2012-
PEUGEOT	208 1.6 HDi	[9HP(DV6DTED)]	03.2012-
PEUGEOT	208 1.6 HDi	[9HR(DV6C)]	07.2015-
PEUGEOT	270 CC 1.6 HDi	[9HR(DV6C)]	08.2009-10.2013
PEUGEOT	3008 1.6 HDi	[9HD(DV6CTED)]	03.2013-08.2016
PEUGEOT	3008 1.6 HDi	[9HR(DV6C)]	12.2009-08.2016
PEUGEOT	3008 1.6 HDi	[9HZ(DV6ATED4)]	06.2009-08.2016
PEUGEOT	3008 1.6 HDi 110	[9HZ(DV6TED4)]	06.2009-08.2016
PEUGEOT	3008 1.6 HDi BlueHDi 115	[BHX(DV6FC)]	02.2013-08.2016
PEUGEOT	3008 1.6 HDi BlueHDi 120	[BHZ(DV6FC)]	05.2016-
PEUGEOT	307 1.6 HDi FAP	[9HY(DV6TED4)]	02.2004-03.2009
PEUGEOT	307 1.6 HDi FAP	[9HY(DV6TED4)]	02.2004-04.2008
PEUGEOT	307 1.6 HDi FAP	[9HY(DV6TED4)]	11.2003-12.2007
PEUGEOT	307 1.6 HDi FAP	[9HZ(DV6TED4)]	02.2004-03.2009
PEUGEOT	307 1.6 HDi FAP	[9HZ(DV6TED4)]	02.2004-04.2008
PEUGEOT	307 1.6 HDi FAP	[9HZ(DV6TED4)]	11.2003-12.2007
PEUGEOT	308 1.6 HDi	[9HC(DV6C)]	09.2013-
PEUGEOT	308 1.6 HDi	[9HD(DV6C)]	03.2013-10.2014
PEUGEOT	308 1.6 HDi	[9HD(DV6C),9HG(DV6CM)]	03.2013-10.2014
PEUGEOT	308 1.6 HDi	[9HP(DV6DTED)]	09.2013-
PEUGEOT	308 1.6 HDi	[9HP(DV6DTED)]	11.2009-10.2014
PEUGEOT	308 1.6 HDi	[9HR(DV6C)]	12.2009-10.2014
PEUGEOT	308 1.6 HDi	[9HV(DV6ATED4)]	09.2007-10.2014
PEUGEOT	308 1.6 HDi	[9HX(DV6ATED4)]	09.2007-10.2014
PEUGEOT	308 1.6 HDi	[BHZ(DV6FC)]	09.2013-
PEUGEOT	308 1.6 HDi	[DV6TED4]	09.2007-10.2014
PEUGEOT	308 1.6 HDi 115	[9HC(DV6C)]	03.2015-
PEUGEOT	308 2.0 HDi	[RHR(DW10BTED4)]	07.2010-12.2012
PEUGEOT	308 CC 1.6 HDi	[9HZ(DV6TED4)]	03.2013-12.2014
PEUGEOT	308 SW 1.6 HDi	[9HD(DV6C)]	03.2014-
PEUGEOT	308 SW 1.6 HDi	[9HP(DV6DTED)]	03.2014-
PEUGEOT	308 SW 1.6 HDi	[9HR(DV6C)]	12.2009-10.2014
PEUGEOT	308 SW 1.6 HDi	[9HZ(DV6TED4)]	01.2008-12.2012
PEUGEOT	308 SW 1.6 HDi	[BHZ(DV6FC)]	03.2014-
PEUGEOT	380 SW 1.6 HDi	[9HP(DV6DTED)]	11.2009-10.2014
PEUGEOT	407 1.6 HDi FAP	[9HY(DV6TED4)]	05.2004-12.2010
PEUGEOT	407 1.6 HDi FAP	[9HZ(DV6TED4)]	05.2004-12.2010
PEUGEOT	407 SW 1.6 HDi	[9HZ(DV6TED4)]	08.2004-12.2010
PEUGEOT	5008 1.6 e-HDi	[9HD(DV6C)]	03.2013-03.2017
PEUGEOT	5008 1.6 HDi	[9HD(DV6CTED)]	03.2013-03.2017
PEUGEOT	5008 1.6 HDi	[9HR(DV6C)]	08.2010-03.2017
PEUGEOT	5008 1.6 HDi	[9HZ(DV6TED4)]	09.2009-03.2017
PEUGEOT	5008 1.6 HDi	[9HZP(DV6TED4)]	09.2009-03.2017
PEUGEOT	5008 1.6 HDi BlueHDi 115	[BHX(DV6FC)]	12.2016-
PEUGEOT	5008 1.6 HDi BlueHDi 120	[BHZ(DV6FC)]	12.2016-
PEUGEOT	508 1.6 BlueHDi 120	[BHZ(DV6FC)]	03.2014-12.2018
PEUGEOT	508 1.6 HDi	[9HD(DV6CTED)]	02.2012-12.2018
PEUGEOT	508 1.6 HDi	[9HL(DV6C)]	03.2013-
PEUGEOT	508 1.6 HDi	[9HR(DV6C)]	11.2010-12.2018
PEUGEOT	508 1.6 HDi	[BHX(DV6FC)]	09.2014-12.2018
PEUGEOT	508 SW 1.6 HDi	[9HD(DV6CTED)]	02.2012-12.2018
PEUGEOT	508 SW 1.6 HDi	[9HR(DV6C)]	11.2010-12.2018
PEUGEOT	508 SW 1.6 HDi	[BHX(DV6FC)]	09.2014-12.2018
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	02.2008-
PEUGEOT	Bipper 1.4 HDi	[8HS(DV4TD)]	04.2008-
PEUGEOT	Grand Raid 1.6 HDi	[9HL(DV6C)]	08.2010-
PEUGEOT	Partner 1.6 BlueHDi 100	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 120	[BHZ(DV6FC)]	04.2015-
PEUGEOT	Partner 1.6 BlueHDi 75	[BHW(DV6FE)]	07.2011-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHW(DV6FE)]	06.2008-12.2018
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHY(DV6FD)]	12.2014-
PEUGEOT	Partner 1.6 BlueHDi Tepee	[BHZ(DV6FC)]	12.2014-
PEUGEOT	Partner 1.6 HDi	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi	[9HF(DV6DTED)]	12.2011-
PEUGEOT	Partner 1.6 HDi	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi BlueHDi 110 4x4	[BHY(DV6FD)]	04.2015-
PEUGEOT	Partner 1.6 HDi Tepee	[9HF(DV6DTED)]	03.2013-
PEUGEOT	Partner 1.6 HDi Tepee	[9HL(DV6C)]	03.2013-
PEUGEOT	Partner 1.6 HDi Tepee	[9HL(DV6C)]	08.2010-
PEUGEOT	Partner 1.6 HDi Tepee	[9HP(DV6DTED)]	04.2010-
PEUGEOT	Partner 1.6 HDi Tepee	[9HX(DV6ATED4)]	04.2010-

11997	EAI
20437642OE	REAL
220.524.113.000	PSH
220.524.113.008	PSH
220.524.113.009	PSH
220.524.113.130	PSH
220.524.113.265	PSH
220.524.113.370	PSH
220.524.113.372	PSH
220.524.113.500	PSH
220.524.113.505	PSH
28100YV020	TOYOTA
3105	CEVAM
5015008	MEAT & DORIA
5802AA	PEUGEOT
5802EG	PEUGEOT
5802Z9	PEUGEOT
5802ZB	PEUGEOT
6035246.1	SANDO
9645100680	PEUGEOT
9662854080	PEUGEOT
9663528880	PEUGEOT
966352888001	PEUGEOT
9801667780	PEUGEOT
980166778000	PEUGEOT
CST35246GS	CASCO
M000T22471	MITSUBISHI
M000T22471AM	MITSUBISHI
M000T22472	MITSUBISHI
M000T22472AM	MITSUBISHI
M000T22473	MITSUBISHI
M000T22473AM	MITSUBISHI
M000T22473ZZ9	MITSUBISHI
M0T22471	MITSUBISHI
M0T22471AM	MITSUBISHI
M0T22472	MITSUBISHI
M0T22472AM	MITSUBISHI
M0T22473	MITSUBISHI
M0T22473AM	MITSUBISHI
M0T22473ZZ9	MITSUBISHI
MITM0T22473	WOODAUTO
S12MH0014A2	SIDAT
STR5339	ELECTROLOG
STX200013	STARDAX
STX200013R	STARDAX
STX200099	STARDAX
STX200099R	STARDAX
UD100038(MITSUBISHI)S	AS-PL

S5494(MITSUBISHI)

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
