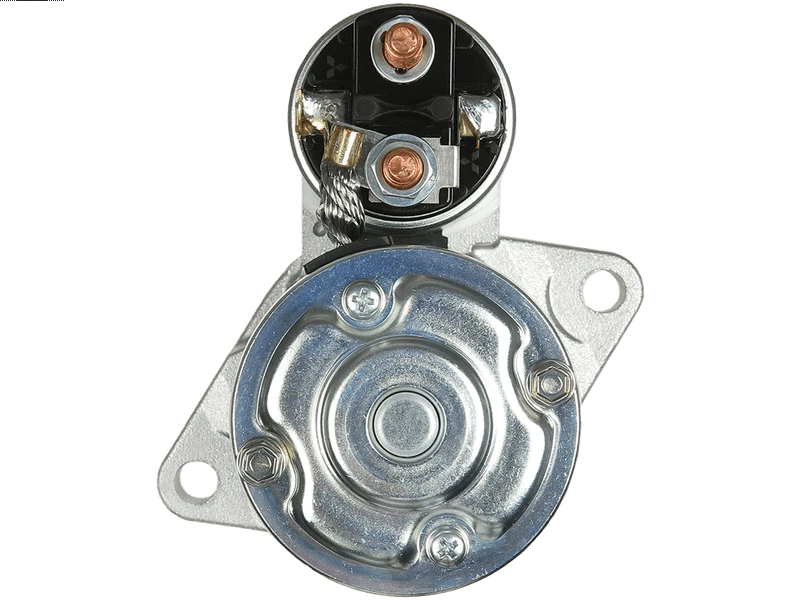

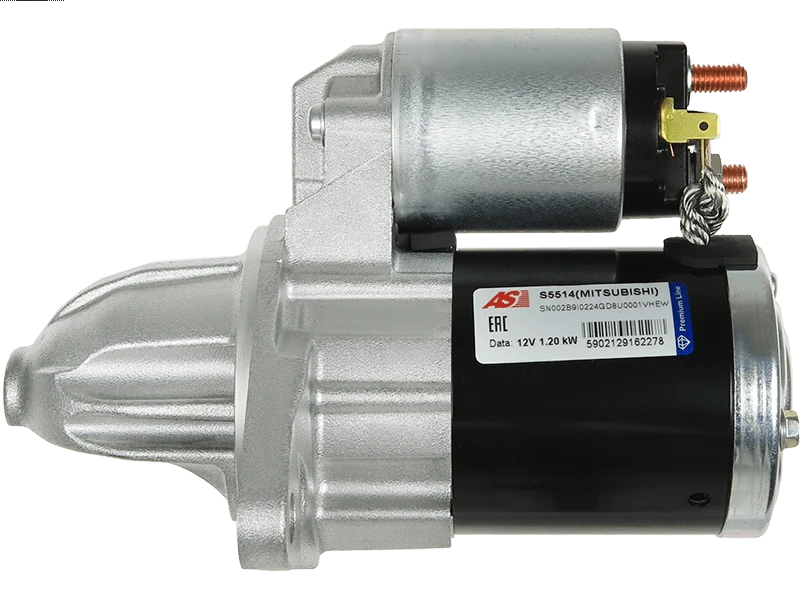

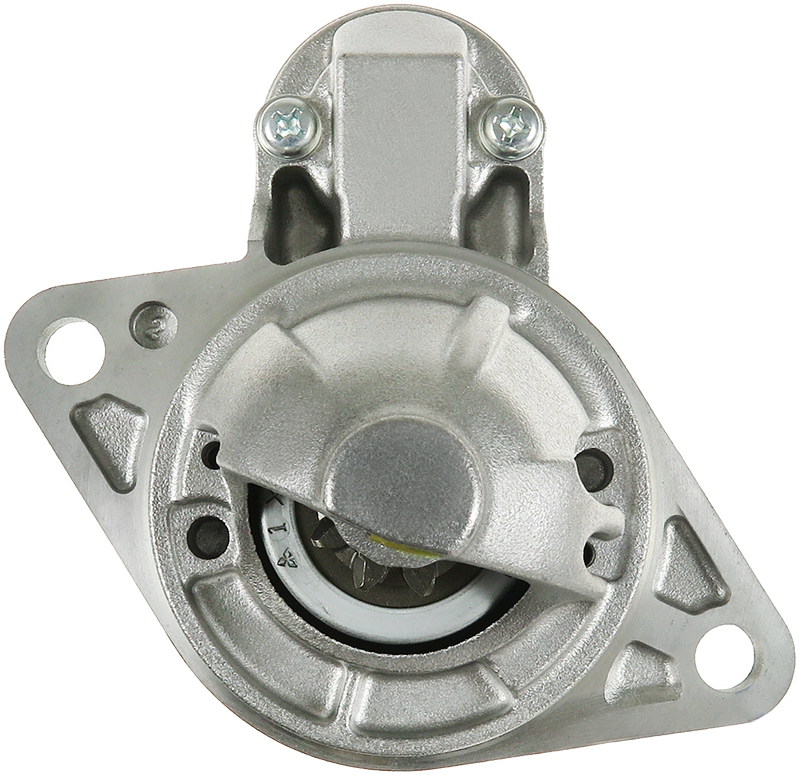

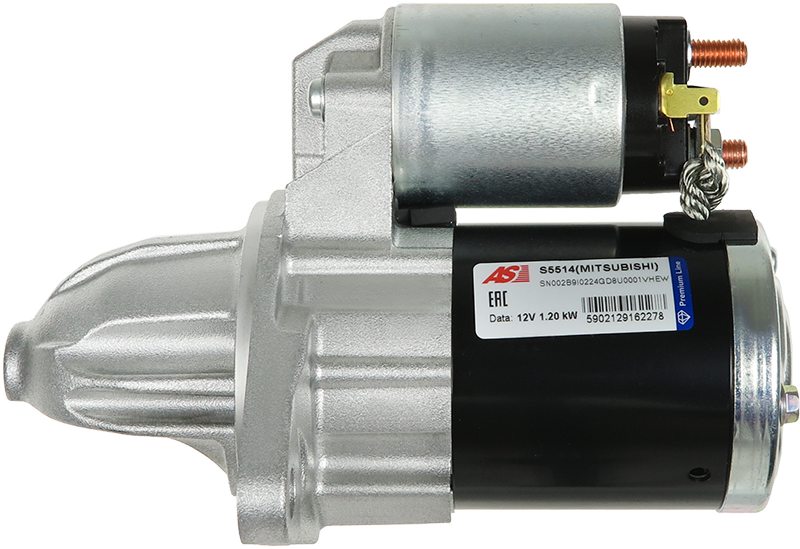

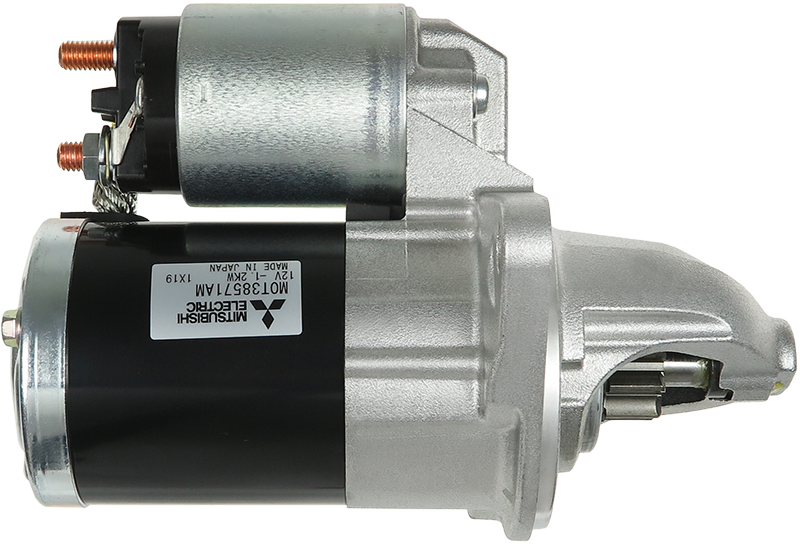

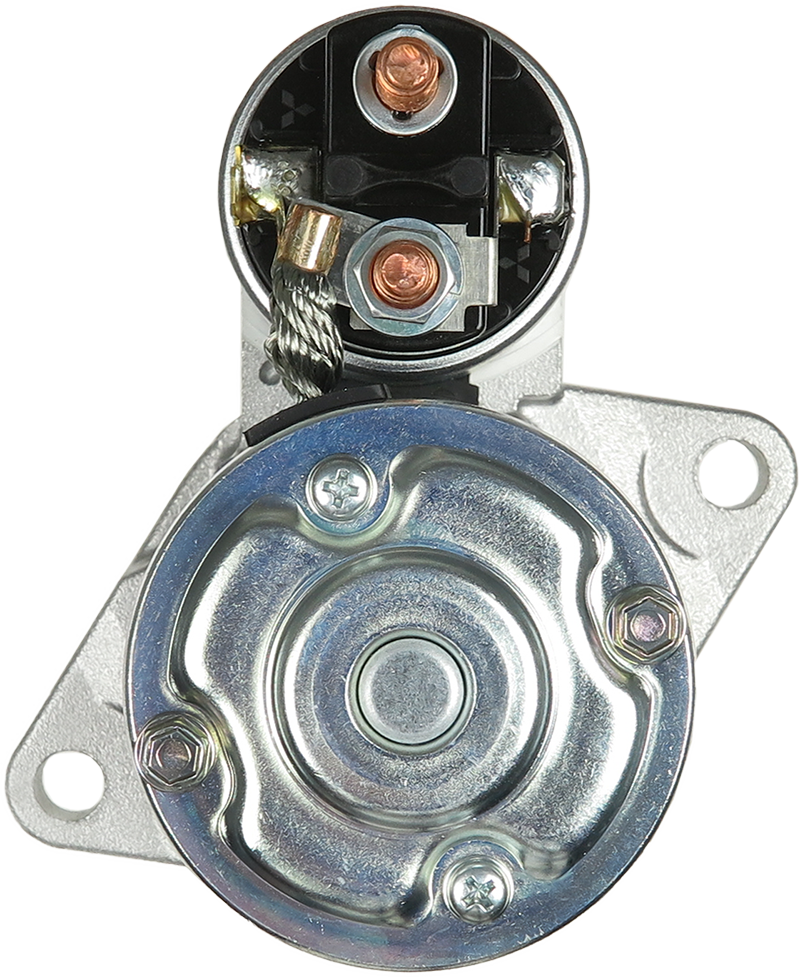

Brand new OEM MITSUBISHI Starter motor
PREMIUM LINE
Mitsubishi
MITSUBISHI
Price:
NZ$ 351.72 including GST
NZ$ 305.84 excluding GST
or four payments of $87.93
with
Learn More
each
S5514(MITSUBISHI)
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T38571Associated Numbers
1035332 PIC
170521092 PSH
23300AA710 Subaru
255322 Elstock
333031092 DRI
LRS04159 Lucas
M000T38571 Mitsubishi
M000T38571AM Mitsubishi
M0T38571 Mitsubishi
M0T38571AM Mitsubishi
R5217013 Herth Buss
RNLM0T38571 RNL
S80491 Dixie
ARROWHEAD SMT0435
LESTER 19268
MITSUBISHI M0T38571, M0T38571ZC
SUBARU 23300-AA710, 23300-AA71A
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 192 mm |
| Mount Hole Center - Center (O.1) | 121 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 34 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUBARU | Forester 2.0 i AWD | [FB20] | 03.2013- |
| SUBARU | Forester 2.5 AWD | [FB25] | 11.2012- |
| SUBARU | Impreza 2.0 AWD | [FB20] | 01.2012- |
| SUBARU | Impreza 2.0 AWD | [FB20B] | 07.2011- |
| SUBARU | Legacy 2.0 i AWD | [FB20] | 06.2012-12.2014 |
| SUBARU | Legacy 2.5 i AWD | [FB25] | 01.2015- |
| SUBARU | Legacy 2.5 i AWD | [FB25] | 07.2012-12.2014 |
| SUBARU | Legacy 2.5 i AWD | [FB25A] | 07.2012-12.2014 |
| SUBARU | Legacy 2.5 i AWD | [FB25B] | 07.2012-12.2014 |
| SUBARU | Legacy 3.6 i AWD | [EZ36D] | 01.2015- |
| SUBARU | Outback 2.5 AWD | [FB25] | 03.2015- |
| SUBARU | Outback 2.5 AWD | 07.2020- | |
| SUBARU | Outback 2.5 i AWD | [FB25B] | 01.2013- |
Reference Information
| 170.521.092.138 | PSH |
| 170.521.092.370 | PSH |
| 19268N | WAI / TRANSPO |
| 20437492OE | REAL |
| 23300-AA710 | SUBARU |
| 23300-AA710A | SUBARU |
| 25-5322 | ELSTOCK |
| 256404M | KUHNER |
| 335912 | LOGISTIK |
| 6035294.1 | SANDO |
| 91-27-3346 | WILSON |
| 9863 | CEVAM |
| CST35294GS | CASCO |
| LRS04159 | LUCAS |
| LRS4159 | LUCAS |
| M000T38571 | MITSUBISHI |
| M000T38571AM | MITSUBISHI |
| M000T38571ZC | MITSUBISHI |
| M0T38571 | MITSUBISHI |
| M0T38571AM | MITSUBISHI |
| M0T38571ZC | MITSUBISHI |
| MAV372940 | SIOM |
| MITM0T38571 | WOODAUTO |
| S145.339 | PSH |
| STM8571 | KRAUF |
| STR5474 | ELECTROLOG |
| UD100048(MITSUBISHI)S | AS-PL |
