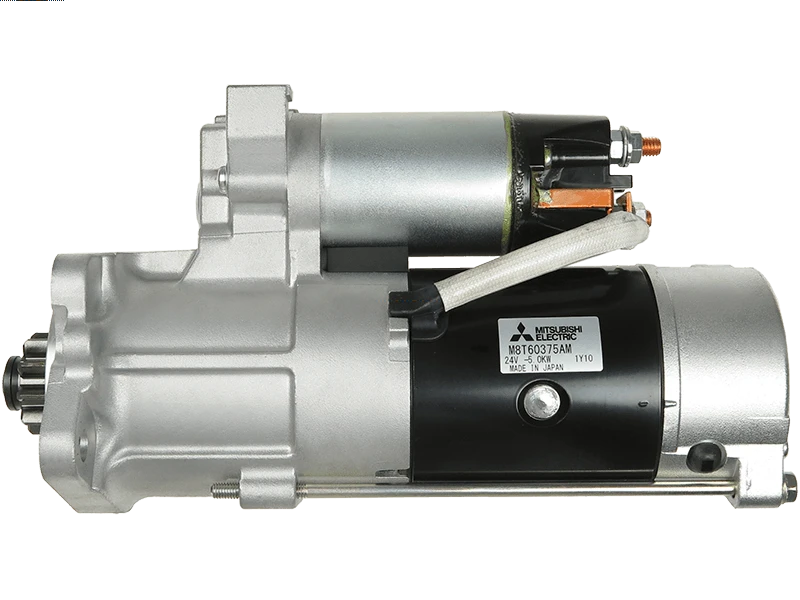

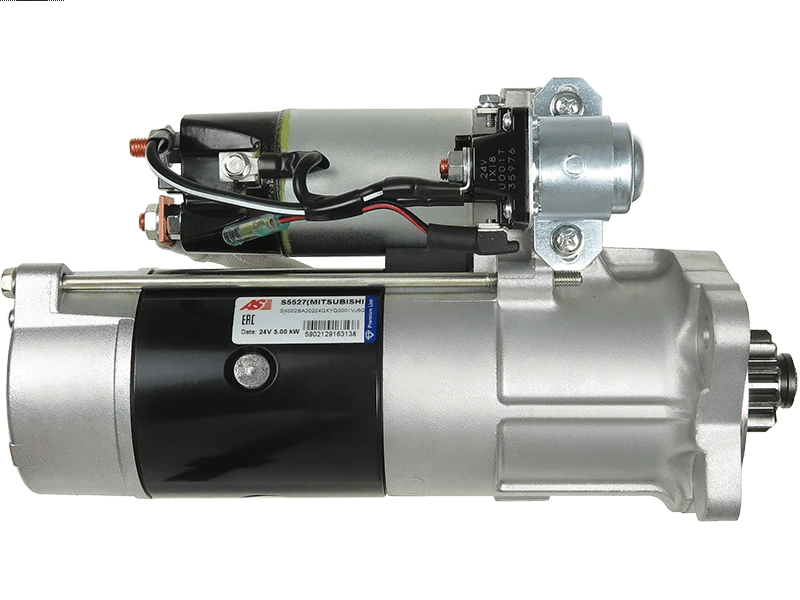

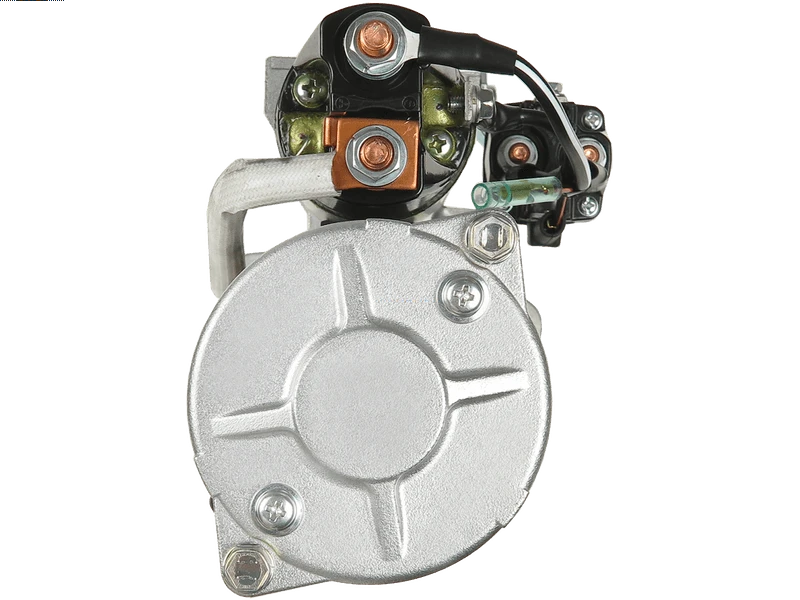

Specifications
Kilowatt | 5 kW |
Length (L.1) | 288 mm |
Mount Hole Center - Center (O.1) | 115 mm |
Mount Hole Diameter (C.1) | 10.5 mm |
Mount Hole Diameter (C.2) | 10.5 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 20 mm |
Rotation | CW |
Spigot Diameter (A) | 82 mm |
Unit Type | MITSUBISHI |
Voltage | 24 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CATERPILLAR | DP40 | [S6E] | |
MITSUBISHI | DP40 | [S6S] | |
MITSUBISHI | FD35D | [S6E] | |
MITSUBISHI | FD35D2 | [S6E] | |
MITSUBISHI | FD35DS | [S6E] | |
MITSUBISHI | FD38 | [S6E] | |
MITSUBISHI | FD40D | [S6E] | |
MITSUBISHI | FD45D | [S6E] | |
MITSUBISHI | FD50C | [S6E] | |
MITSUBISHI | FD50D | [S6E] |
Reference Information
32B6620102 MITM8T60384 M008T60384AM 32B6620100 130-80114 F042001189 M008T60384 M8T60384AM STR5459 32B6620104 STM4169BA M8T60384 UD100069(MITSUBISHI)S 130-80114NOE CST35613GS 20437316OE 32B6610200 M003T58771 M008T60375AM M008T60375 M8T60375AM M008T60374 M008T60373 32B6600202 M008T60372 M008T60371 32B6600402 32B6602302 M8T60375 32B6600101 32B6600200 M8T60373 336222 M8T60374 M3T58771 M8T60371 M8T60372 STM4169MN 6035613.1 130-80114N 000F042001189 151.538.102.370Add Your Number
