S9490(NIKKO) - Brand new OEM NIKKO Starter motor

Name: Brand new OEM NIKKO Starter motor
Brand: AS GROUP NZ
SKU: S9490(NIKKO)
Price: 1462.62 NZD
Availability: BackOrder

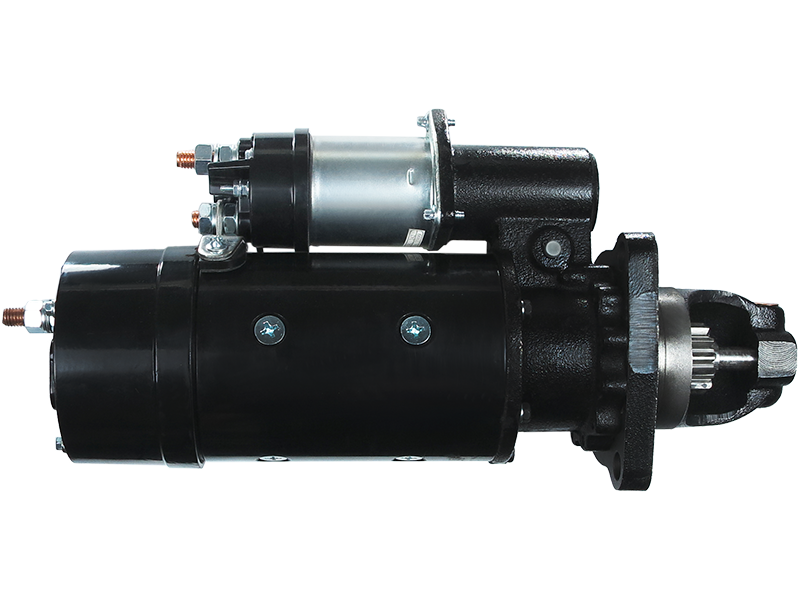

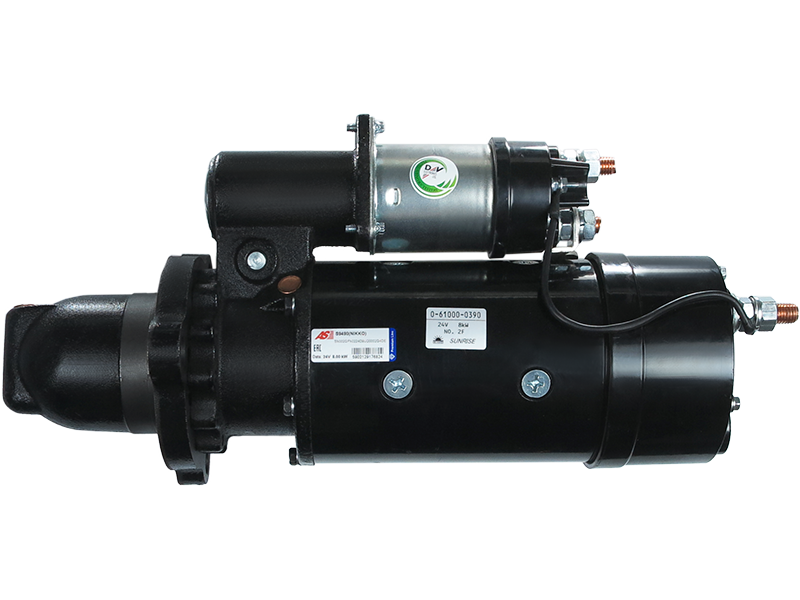

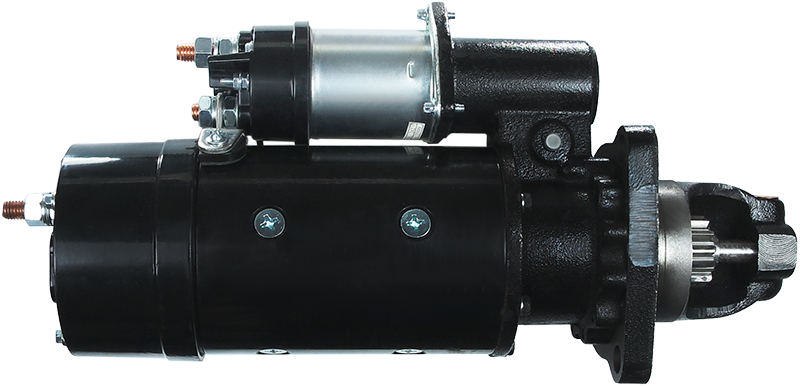

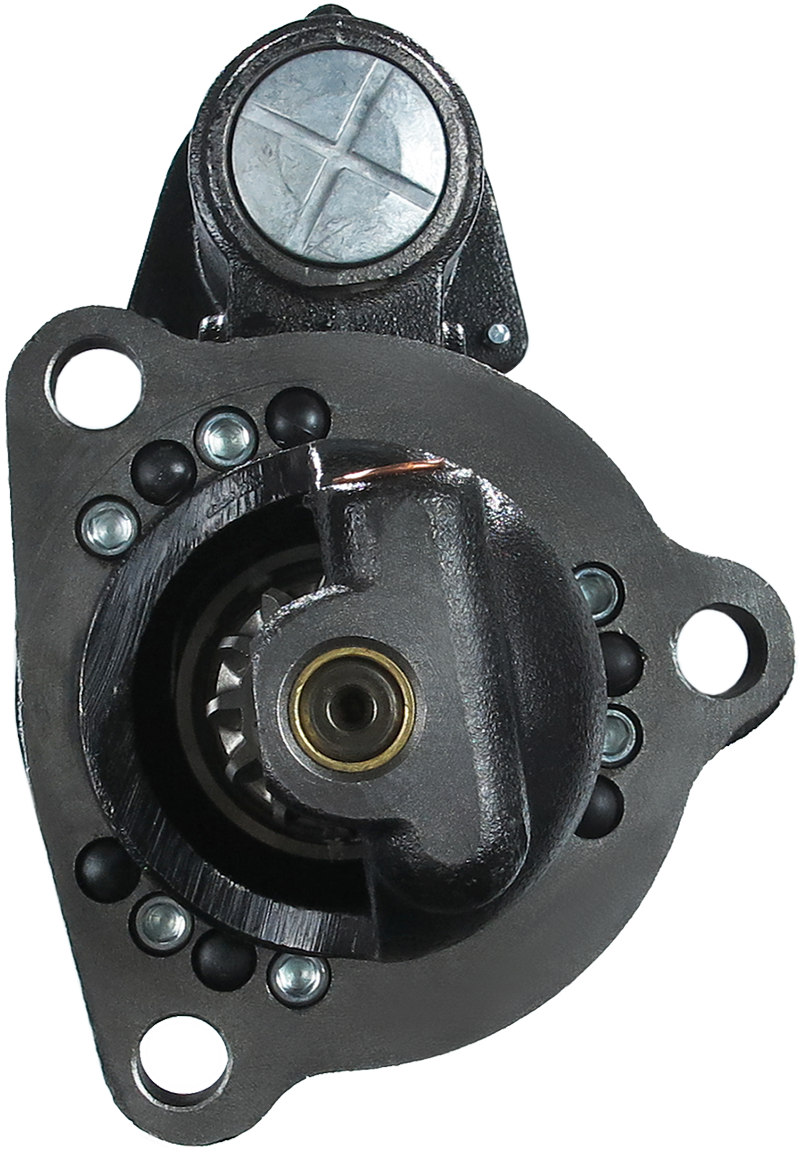

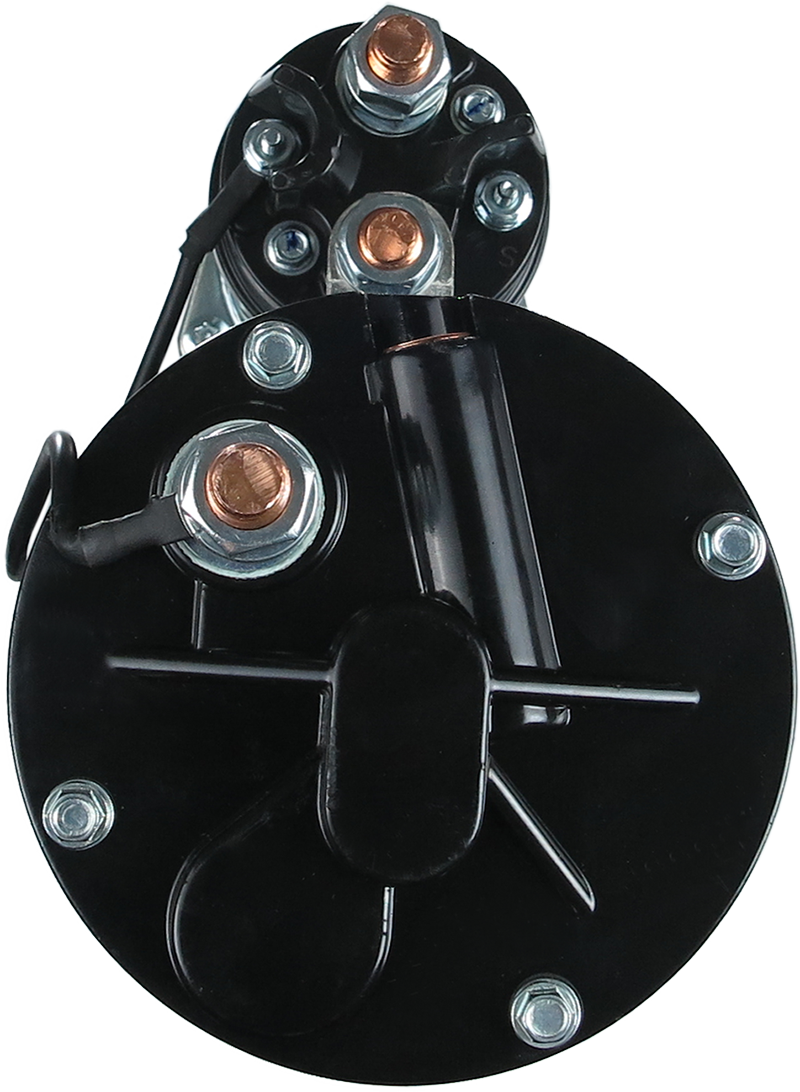

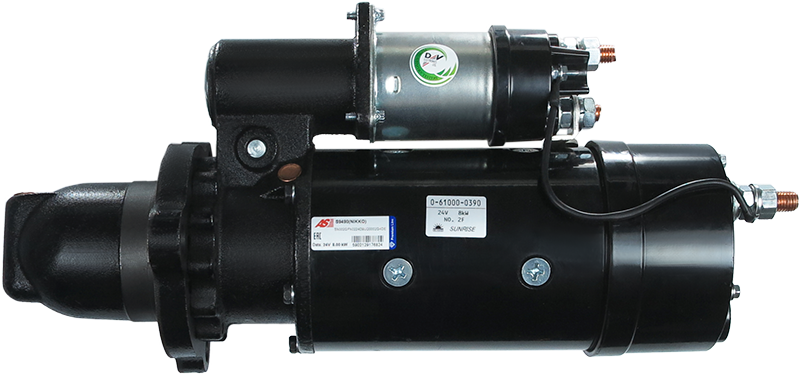

Brand new OEM NIKKO Starter motor

PREMIUM LINE

Manufacturer:

Nikko

Replacement For:

NIKKO

Price:

NZ$ 1,462.62 including GST

NZ$ 1,271.84 excluding GST

or four payments of $365.66 with
Learn More

UOM:

each

Product Code:

S9490(NIKKO)

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information
Video/Publications

Kilowatt	8 kW
Length (L.1)	501 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	127 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Center - Center (O.4)	16.50 mm
Mount Hole Diameter (C.1)	16.50 mm
Mount Hole Diameter (C.2)	16.50 mm
Mount Hole Diameter (C.3)	16.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	12 qty
OEM Product	Yes
Pinion at Rest (B)	48 mm
Product Line	Premium Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	NIKKO
Voltage	24 V

Make	Model	Type	Year
CASE	1080	[504]	01.1987-12.1987
CASE	1080B	[504]	01.1985-12.1988
CASE	1150	[451]	01.1985-12.1988
CASE	1150	[504]	01.1985-12.1988
CASE	1150E	[6-830]	01.1985-12.1996
CASE	1150E	[6-830]	01.1990-12.1996
CASE	1155D	[504]	01.1985-12.1992
CASE	1155E	[504]	01.1985-12.1994
CASE	1155E	[6-830]	01.1990-12.1993
CASE	1187B	[504]	01.1985-12.1988
CASE	1187C	[504]	01.1989-12.1994
CASE	1285	[504]	01.1985-12.1985
CASE	1286	[504]	01.1985-12.1985
CASE	1450	[504]	01.1985-12.1988
CASE	1450B	[504]	01.1979-12.1987
CASE	1450B	[504]	01.1980-12.1987
CASE	1550	[6-830]	01.1985-12.1990
CASE	1550D		01.1987-12.1990
CASE	40D	[504]	01.1986-12.1986
CASE	40DR	[4-53]	01.1985-12.1995
CASE	45B		01.1985-12.1995
CASE	45DR	[504]	01.1986-12.1986
CASE	45DR	[6-504]	01.1986-12.1996
CASE	45R	[6-504]	01.1986-12.1986
CASE	50D	[504]	01.1986-12.1986
CASE	50EC	[504]	01.1985-12.1995
CASE	50LC	[504]	01.1986-12.1986
CASE	80B		01.1985-12.1995
CASE	821	[6T-830]	01.1989-12.1993
CASE	855D	[504]	01.1985-12.1994
CASE	880C	[504]	01.1980-12.1985
CASE	880D		01.1985-12.1992
CASE	980	[504]	01.1986-12.1986
CASE	W18B	[A504BD]	01.1985-12.1988
CASE	W20C	[A504BD]	01.1985-12.1992
CASE	W24	[A504BD]	01.1985-12.1988
CASE	W24C	[A504BD]	01.1985-12.1992
CASE	W30	[A504BD]	01.1983-12.1992
CASE	W36	[A504BD]	01.1985-12.1988
CATERPILLAR	120G	[3304]	01.1985-12.1995
CATERPILLAR	12G	[3306]	01.1985-12.1995
CATERPILLAR	130G	[3304]	01.1985-12.1995
CATERPILLAR	140G	[3306]	01.1985-12.1995
CATERPILLAR	140H	[3306]	01.1994-12.2010
CATERPILLAR	143H	[3306]	01.1994-12.2003
CATERPILLAR	14G	[3306]	01.1985-12.1995
CATERPILLAR	14H	[3306]	01.1995-12.2002
CATERPILLAR	160H	[3306]	01.1994-12.2003
CATERPILLAR	163H	[3306]	01.1994-12.2003
CATERPILLAR	215C		01.1987-12.1992
CATERPILLAR	215D 7.0	[3304]	01.1989-12.1993
CATERPILLAR	219		01.1987-12.1992
CATERPILLAR	219D		01.1987-12.1992
CATERPILLAR	225	[3208]	01.1985-12.1986
CATERPILLAR	225B 7.0	[3304]	01.1986-12.1992
CATERPILLAR	225D 7.0	[3304]	01.1986-12.1992
CATERPILLAR	227	[3208]	01.1986-12.1992
CATERPILLAR	229	[3208]	01.1986-12.1989
CATERPILLAR	229A 7.0	[3304]	01.1986-12.1992
CATERPILLAR	229D 7.0	[3304]	01.1986-12.1992
CATERPILLAR	231D	[3208]	01.1989-12.1993
CATERPILLAR	235	[3306]	01.1985-12.1986
CATERPILLAR	235B	[3306]	01.1985-12.1992
CATERPILLAR	235C	[3306]	01.1988-12.1992
CATERPILLAR	235C	[3306]	01.1991-12.1992
CATERPILLAR	235D	[3306]	01.1988-12.1994
CATERPILLAR	245B	[3406]	01.1988-12.1992
CATERPILLAR	245B	[3406]	01.1990-12.1992
CATERPILLAR	245D	[3406]	01.1989-12.1994
CATERPILLAR	3208	[3208]	01.1985-12.1995
CATERPILLAR	330	[3306]	01.1992-12.1996
CATERPILLAR	3304	[3304]	01.1985-12.1995
CATERPILLAR	3306	[3306]	01.1985-12.1997
CATERPILLAR	330B	[3306]	01.1995-12.2002
CATERPILLAR	330B L	[3306]	01.1995-12.2002
CATERPILLAR	330B LN	[3306]	01.1995-12.2002
CATERPILLAR	330 L	[3306]	01.1992-12.1996
CATERPILLAR	330 LN	[3306]	01.1992-12.1996
CATERPILLAR	350	[3306]	01.1993-12.1999
CATERPILLAR	350 L	[3306]	01.1993-12.1999
CATERPILLAR	508	[3204]	01.1987-12.1989
CATERPILLAR	518	[3304]	01.1985-12.1995
CATERPILLAR	525C 7.2	[C7]	01.2010-12.2010
CATERPILLAR	528	[3306]	01.1985-12.1995
CATERPILLAR	561D	[3306]	01.1985-12.1992
CATERPILLAR	571G	[3306]	01.1986-12.1992
CATERPILLAR	572G	[3306]	01.1986-12.1992
CATERPILLAR	613C	[3208]	01.1985-12.1993
CATERPILLAR	615	[3306]	01.1985-12.1987
CATERPILLAR	615C	[3306]	01.1985-12.1993
CATERPILLAR	627B	[3306]	01.1985-12.1986
CATERPILLAR	627E	[3306]	01.1986-12.1993
CATERPILLAR	637D	[3306]	01.1985-12.1985
CATERPILLAR	637E	[3306]	01.1986-12.1991
CATERPILLAR	814B	[3306]	01.1985-12.1995
CATERPILLAR	815B	[3306]	01.1985-12.1996
CATERPILLAR	815F	[3176]	01.1996-12.2002
CATERPILLAR	815F	[3306]	01.1995-12.1996
CATERPILLAR	816B	[3306]	01.1985-12.1996
CATERPILLAR	816B 10.5	[3306]	01.1985-12.1996
CATERPILLAR	816F	[3176C]	01.1995-12.2001
CATERPILLAR	816F	[3306]	01.1995-12.1996
CATERPILLAR	816F 10.5	[3306]	01.1996-12.2003
CATERPILLAR	930	[3304]	01.1985-12.1985
CATERPILLAR	936	[3304]	01.1985-12.1987
CATERPILLAR	936E	[3304]	01.1987-12.1992
CATERPILLAR	950B	[3304]	01.1985-12.1987
CATERPILLAR	950E	[3304]	01.1987-12.1991
CATERPILLAR	963	[3304]	01.1985-12.1995
CATERPILLAR	963B	[3306]	01.1995-12.1996
CATERPILLAR	966D	[3306]	01.1985-12.1987
CATERPILLAR	966E	[3306]	01.1987-12.1990
CATERPILLAR	966F	[3306]	01.1990-12.1996
CATERPILLAR	966G	[3306]	01.1999-12.2003
CATERPILLAR	973	[3306]	01.1985-12.1995
CATERPILLAR	D25D	[3306]
CATERPILLAR	D300B	[3306]
CATERPILLAR	D300D	[3306]
CATERPILLAR	D30D	[3306]
CATERPILLAR	D350D	[3306]
CATERPILLAR	D4E	[3304]	01.1985-12.1986
CATERPILLAR	D4H	[3304]	01.1985-12.1996
CATERPILLAR	D5B	[3306]	01.1985-12.1987
CATERPILLAR	D5H	[3304]	01.1985-12.1996
CATERPILLAR	D6D	[3306]	01.1985-12.1997
CATERPILLAR	D6H	[3306]	01.1985-12.1995
CATERPILLAR	D6R	[3306]	01.1995-12.2002
CATERPILLAR	D6R LGP	[3306]	01.1995-12.2002
CATERPILLAR	D6R XL	[3306]	01.1995-12.2002
CATERPILLAR	D7G	[3306]	01.1985-12.2004
CATERPILLAR	D7H	[3306]	01.1985-12.1995
CATERPILLAR	D7R	[3306]	01.1995-12.2002
CATERPILLAR	D7R LGP	[3306]	01.1995-12.2002
CATERPILLAR	D7R XR	[3306]	01.1995-12.2002
CATERPILLAR	FB227	[3208]	01.1985-12.1993
CATERPILLAR	R1300	[3306]	01.1999-12.2004
CATERPILLAR	R1300G	[3306]	01.2005-12.2015
CEDAR RAPIDS	3042JP	[C8.3C]	01.1997-12.2007
CHANGLIN	ZL50G-5 8.3	[6CTA]	01.2002-12.2012
CUMMINS	C Series 8.3		01.1985-12.1988
CUMMINS	Engine 14.0		01.1994-12.2004
CUMMINS	Engine 8.3		01.1985-12.1988
CUMMINS	Engine 9.1		01.1985-12.1985
CUMMINS	L Series 14.0		01.1994-12.2004
CUMMINS	N Series	[N-14]	01.1994-12.1994
CUMMINS	N Series 8.3		01.1999-12.2009
CUMMINS	V903	[V903]	01.1994-12.1994
CUMMINS	V Series	[V903]	01.1994-12.1994
CUMMINS	V Series 9.1		01.1985-12.1985
DRESSER	412B 8.3	[6CT]	01.1987-12.1992
DRESSER	530 8.3	[6CT]	01.1984-12.1992
DRESSER	540 8.3	[6CT]	01.1984-12.1992
DRESSER	TD-12 8.3	[6C]	01.1987-12.1993
DRESSER	TD-15C 8.3	[6CT]	01.1987-12.1993
DRESSER	TD-7E	[4B]	01.1990-12.1993
DRESSER	TD-8E	[4B]	01.1990-12.1993
FIAT-ALLIS	10C	[8365]	01.1984-12.1986
FIAT-ALLIS	10CL	[8365]	01.1984-12.1986
FIAT-ALLIS	10CTA	[8365]	01.1984-12.1985
FIAT-ALLIS	FD10C	[8365]	01.1984-12.1985
FIAT-ALLIS	FG75	[8365]	01.1984-12.1985
FIAT-ALLIS	FG85	[8365]	01.1984-12.1985
FIAT-ALLIS	FG95	[8365]	01.1984-12.1985
FIAT-ALLIS	FL10C	[8365]	01.1984-12.1986
FIAT-ALLIS	FR15	[8365]	01.1984-12.1986
FIAT-ALLIS	FR15B	[8365]	01.1985-12.1995
FIAT-ALLIS	FR75	[8365]	01.1984-12.1986
FORD	7000 11.1		01.1996-12.1999
FORD	8000 11.1		01.1996-12.1999
FORD	9000 11.1		01.1996-12.1999
FORD	L6000 11.1		01.1996-12.1999
JCB	446 8.3	[6CTAA]	01.1997-12.2001
JOHN DEERE	1263 8.3	[6CT]	01.2001-12.2003
JOHN DEERE	1758 8.3	[6CT]	01.2001-12.2002
JOHN DEERE	6619	[6619]
JOHN DEERE	753G 8.3	[6CTA]	01.2000-12.2004
JOHN DEERE	753GL 8.3	[6CTA]	01.2000-12.2004
JOHN DEERE	770A 7.6	[6-466]	01.1978-12.1986
JOHN DEERE	770A 8.7	[6-531]	01.1978-12.1986
JOHN DEERE	772A 7.6	[6-466]	01.1978-12.1986
JOHN DEERE	772A 8.7	[6-531]	01.1978-12.1986
JOHN DEERE	850B 7.6	[6076]	01.1990-12.1996
JOHN DEERE	850B 7.6	[6-466]	01.1985-12.1990
JOHN DEERE	853G 8.3	[6CTA]	01.2000-12.2003
JOHN DEERE	953G 8.3	[6CTA]	01.2001-12.2003
KENWORTH	C500 10.5	[3306]	01.1984-12.1985
KENWORTH	K100 10.5	[3306]	01.1984-12.1984
KENWORTH	L700 10.5	[3306]	01.1984-12.1984
KENWORTH	W900 10.5	[3306]	01.1984-12.1984
KOMATSU	GD655-3A 8.3	[SAA6D114E]	01.2006-12.2010
KOMATSU	GD655-3C 8.3	[S6D114E]	01.2003-12.2011
KOMATSU	GD655-3C 8.3	[SAA6D114E]	01.2003-12.2011
KOMATSU	GD675-3 8.3	[SAA6D114E]	01.2003-12.2011
KOMATSU	GD675-3A 8.3	[SA6D114E]	01.2007-12.2009
KOMATSU	PC450LC-6K 10.8	[MTA11]	01.1997-12.2004
KOMATSU	WA320-3 8.3	[6CT]	01.1989-12.1993
KOMATSU	WA320-3 8.3	[S6D114E]	01.1992-12.2000
KOMATSU	WA380-3 8.3	[S6D114E]	01.1995-12.1999
KOMATSU	WA420-3 8.3	[6CTA]	01.1997-12.1999
KOMATSU	WA420-3 8.3	[SAA6D114E]	01.2000-12.2002
KOMATSU	WA500-1LC 14.0	[NTA855]	01.1994-12.1998
KOMATSU	WA500-3L 14.0	[N14]	01.1997-12.2006
LISTER PETTER	Engine	[JA6]	01.1986-12.1988
LISTER PETTER	Engine	[JAS6]	01.1986-12.1988
LISTER PETTER	Engine	[JAT6]	01.1986-12.1988
PERKINS	640	[640]	01.1986-12.1986
PRENTICE	730FB 8.3	[6CTA]	01.1997-12.2007
TIMBERJACK	1270B	[1306-8TI]	01.1996-12.2006
TIMBERJACK	2618 8.3	[6CTA]	01.1992-12.2000
TIMBERJACK	2628 8.3	[6CTA]	01.1992-12.2000
TIMBERJACK	608L 8.3	[6CTA]	01.2000-12.2004
TIMBERJACK	608S 8.3	[6CTA]	01.2000-12.2004
TIMBERJACK	618 8.3	[6CTA]	01.1989-12.2000
TIMBERJACK	628 8.3	[6CTA]	01.1989-12.2000
TIMBERJACK	850 8.3	[6CTA]	01.1998-12.2003
TIMBERJACK	950 8.3	[6CTA]	01.1998-12.2003

0-61000-0390	NIKKO
0R2186	CATERPILLAR
0R4256	CATERPILLAR
0R4257	CATERPILLAR
0R5207	CATERPILLAR
0R5270	CATERPILLAR
106-8552	CATERPILLAR
1068555	CATERPILLAR
10R0399	CATERPILLAR
110999	CARGO
1243215H92	KOMATSU
1516810R	DAF
1990453	DELCO
20409106BN	REAL
20409106OE	REAL
2071545	CATERPILLAR
207-1554	CATERPILLAR
207-1555	CATERPILLAR
207-1560	CATERPILLAR
25900	CATERPILLAR
2P2501	CATERPILLAR
2S0900	CATERPILLAR
2S900	CATERPILLAR
3011895	CUMMINS
3604233RX	CUMMINS
3604321RX	CUMMINS
3604484RX	CUMMINS
3604784RX	CUMMINS
3675120RX	CUMMINS
3902661	CUMMINS
3910646	CUMMINS
3938502	CUMMINS
3A1872	CATERPILLAR
3A1872H	CATERPILLAR
3P0006	CATERPILLAR
3P0007	CATERPILLAR
3P0110	CATERPILLAR
3P3006	CATERPILLAR
3P3007	CATERPILLAR
3R7356	CATERPILLAR
3T2371	CATERPILLAR
3T2579	CATERPILLAR
3T2647	CATERPILLAR
3T2652	CATERPILLAR
3T2660	CATERPILLAR
3T2764	CATERPILLAR
3T2772	CATERPILLAR
3T4581	CATERPILLAR
3T4582	CATERPILLAR
3T4583	CATERPILLAR
3T4584	CATERPILLAR
3T4586	CATERPILLAR
3T6305	CATERPILLAR
3Y8852	CATERPILLAR
4816170	FIAT
4816170	IVECO
4822105	CUMMINS
4N3181	CATERPILLAR
4N3182	CATERPILLAR
4N3347	CATERPILLAR
4N3348	CATERPILLAR
4N3350	CATERPILLAR
4N7752	CATERPILLAR
4N7901	CATERPILLAR
4N7905	CATERPILLAR
5284105	CUMMINS
5284106	CUMMINS
5A6494	CATERPILLAR
5A6495	CATERPILLAR
5A6522	CATERPILLAR
5R3155	CATERPILLAR
5R3857	CATERPILLAR
6060601.0	SANDO
6060601.1	SANDO
60863	KUHNER
60863D	KUHNER
60863K	KUHNER
60863M	KUHNER
60863P	KUHNER
641.008.123.030	PSH
641.008.123.710	PSH
673782C91	CASE
6V5207	CATERPILLAR
6V5226	CATERPILLAR
6V5227	CATERPILLAR
6V5537	CATERPILLAR
6V6707	CATERPILLAR
73130192	CATERPILLAR
7T0798	CATERPILLAR
7T0799	CATERPILLAR
7T1082	CATERPILLAR
7T1799	CATERPILLAR
8824	CEVAM
8C3597	CATERPILLAR
8C3647	CATERPILLAR
8C3650	CATERPILLAR
8C3651	CATERPILLAR
8N2145	CATERPILLAR
9G4337	CATERPILLAR
9G4339	CATERPILLAR
9M1662	CATERPILLAR
9X4447	CATERPILLAR
CST60601AS	CASCO
CST60601GS	CASCO
F032110999	CARGO
F048972	JOHN DEERE
M007T03774	MITSUBISHI
M007T03777	MITSUBISHI
M7T03774	MITSUBISHI
M7T03777	MITSUBISHI
OR2186	CATERPILLAR
OR4256	CATERPILLAR
OR4257	CATERPILLAR
RE38634	JOHN DEERE
RE43047	JOHN DEERE
RE63094	JOHN DEERE
RE69591	JOHN DEERE
REM1990453	WOODAUTO
S134.825	PSH
S24DR0089A2	SIDAT
STD0863	KRAUF
STX201301	STARDAX
UD100826(NIKKO)S	AS-PL

S9490(NIKKO)

View your shopping basket or Browse other items in Starter Motors.

AS GROUP NZ

Note: We have moved to a private property and no longer allow pick ups to non account holders -, Paraparaumu, Wellington

5032, New Zealand

0800 727 000 (Domestic Calls)

Shipping Policy: All paid orders are shipped within 24 hours (Monday - Friday)

Returns: Items returned for refund must be unopen/unused in original packaging and within 30 days of date of sale. All Returns must have a Return Form accompanying the goods.

PLEASE NOTE: PRODUCT BOXES ARE NOT SHIPPING BOXES, ANY PRODUCT RETURNED WITH TAPE/LABELS OVER THE PRODUCT BOX WILL BE CHARGED A RESTOCKING FEE

[Terms and Conditions]

[Warranty procedure]

Warranty Form Parts Return Form

[Privacy Policy] [Disclaimer]
