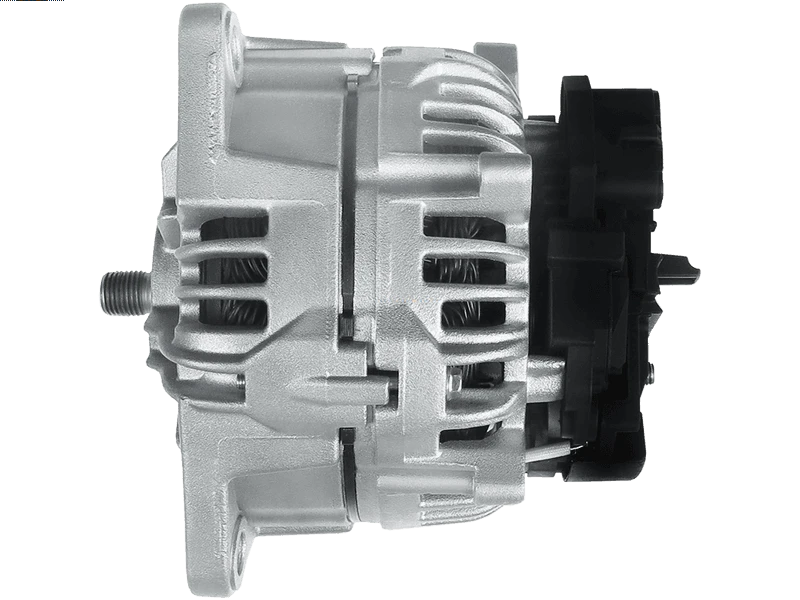

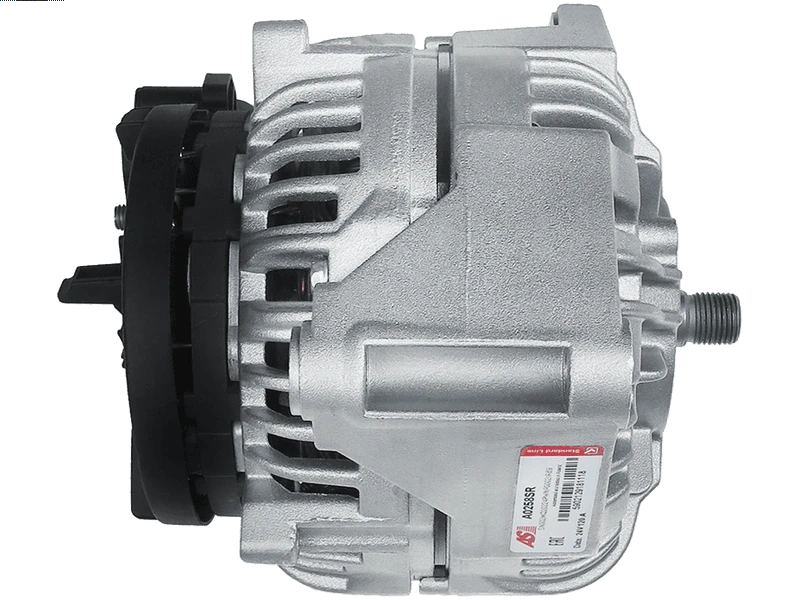

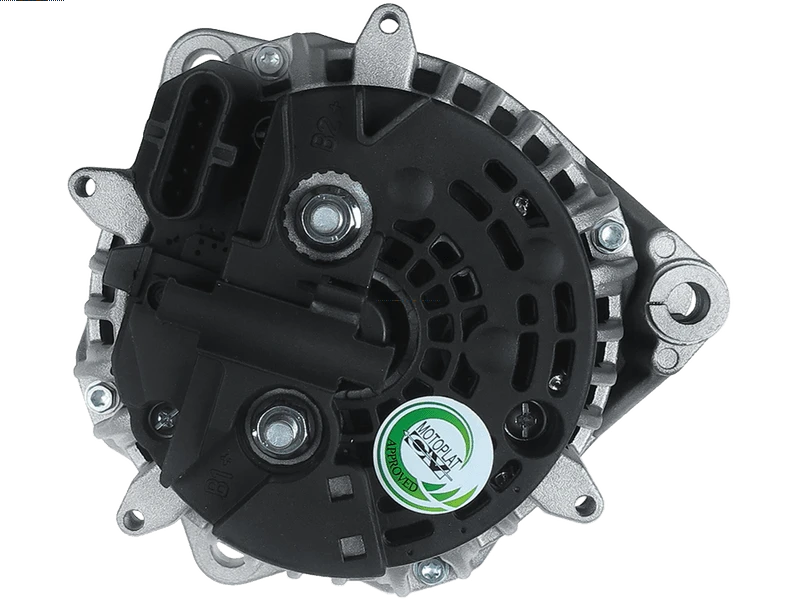

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 503.30 including GST
NZ$ 437.65 excluding GST
or four payments of $125.83
with
Learn More
each
A0258SR
No stock in NZ currently
No stock in NZ currently
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 80 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 12.50 mm |
| Length (L.1) | 199 mm |
| OEM Product | No |
| Plug Code | PL_5003 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Type | No Pulley |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAN | 18310 10.5 | (TGA)[D2066LF04] | 05.2004- |
| MAN | 18310 10.5 | (TGA)[D2066LF14] | 05.2004- |
| MAN | 18310 10.5 | (TGA)[D2066LF35] | 05.2004- |
| MAN | 18320 10.5 | (TGA)[D2066LF04] | 05.2004- |
| MAN | 18320 10.5 | (TGA)[D2066LF14] | 05.2004- |
| MAN | 18320 10.5 | (TGA)[D2066LF35] | 05.2004- |
| MAN | 18320 10.5 | (TGS)[D2066LF39] | 10.2007- |
| MAN | 18350 10.5 | (TGA)[D2066LF03] | 05.2004-09.2006 |
| MAN | 18350 10.5 | (TGA)[D2066LF13] | 05.2004-09.2006 |
| MAN | 18350 10.5 | (TGA)[D2066LF33] | 05.2004-09.2006 |
| MAN | 18390 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 18390 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 18390 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 18400 10.5 | 10.2007- | |
| MAN | 18430 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 18430 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 18430 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 18480 12.4 | (TGA)[D2676LF01] | 01.2006- |
| MAN | 18680 16.2 | (TGX)[D2868LF02] | 10.2007- |
| MAN | 18680 16.2 | (TGX)[D2868LF03] | 10.2007- |
| MAN | 24350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 24350 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 24350 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 24360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 24360 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 24360 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 24390 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 24390 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 24390 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 24400 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 24400 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 24400 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 24400 10.5 | 10.2007- | |
| MAN | 24430 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 24430 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 24430 10.5 | (TGA)[D2066LF23] | 05.2004- |
| MAN | 24430 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 24440 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 24440 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 24440 10.5 | (TGA)[D2066LF23] | 05.2004- |
| MAN | 24440 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 26310 10.5 | (TGA)[D2066LF04] | 02.2004-09.2006 |
| MAN | 26310 10.5 | (TGA)[D2066LF14] | 02.2004- |
| MAN | 26310 10.5 | (TGA)[D2066LF35] | 02.2004- |
| MAN | 26320 10.5 | (TGA)[D2066LF04] | 02.2004- |
| MAN | 26320 10.5 | (TGA)[D2066LF14] | 02.2004- |
| MAN | 26320 10.5 | (TGA)[D2066LF35] | 02.2004- |
| MAN | 26350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 26350 10.5 | (TGA)[D2066LF13] | 02.2004-09.2006 |
| MAN | 26350 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 26360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 26360 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 26360 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 26390 10.5 | (TGA)[D2066LF02] | 02.2004- |
| MAN | 26390 10.5 | (TGA)[D2066LF12] | 02.2004- |
| MAN | 26390 10.5 | (TGA)[D2066LF24] | 05.2004- |
| MAN | 26390 10.5 | (TGA)[D2066LF32] | 02.2004- |
| MAN | 26400 10.5 | (TGA)[D2066LF02] | 02.2004- |
| MAN | 26400 10.5 | (TGA)[D2066LF12] | 02.2004- |
| MAN | 26400 10.5 | (TGA)[D2066LF24] | 05.2004- |
| MAN | 26400 10.5 | (TGA)[D2066LF32] | 02.2004- |
| MAN | 26400 10.5 | (TGX)[D2066LF37] | 10.2007- |
| MAN | 26430 10.5 | (TGA)[D2066LF01] | 02.2004-09.2006 |
| MAN | 26430 10.5 | (TGA)[D2066LF11] | 02.2004- |
| MAN | 26430 10.5 | (TGA)[D2066LF23] | 05.2004- |
| MAN | 26430 10.5 | (TGA)[D2066LF31] | 02.2004- |
| MAN | 26440 10.5 | (TGA)[D2066LF01] | 02.2004- |
| MAN | 26440 10.5 | (TGA)[D2066LF11] | 02.2004- |
| MAN | 26440 10.5 | (TGA)[D2066LF23] | 05.2004- |
| MAN | 26440 10.5 | (TGA)[D2066LF31] | 02.2004- |
| MAN | 28310 10.5 | (TGA)[D2066LF04] | 07.2006- |
| MAN | 28310 10.5 | (TGA)[D2066LF14] | 07.2006- |
| MAN | 28310 10.5 | (TGA)[D2066LF28] | 07.2006- |
| MAN | 28310 10.5 | (TGA)[D2066LF39] | 07.2006- |
| MAN | 28320 10.5 | (TGA)[D2066LF04] | 07.2006- |
| MAN | 28320 10.5 | (TGA)[D2066LF14] | 07.2006- |
| MAN | 28320 10.5 | (TGA)[D2066LF28] | 07.2006- |
| MAN | 28320 10.5 | (TGA)[D2066LF39] | 07.2006- |
| MAN | 28390 10.5 | (TGA)[D2066LF37] | 06.2004- |
| MAN | 28400 10.5 | 10.2007- | |
| MAN | 32350 10.5 | (TGA)[D2066LF03] | 02.2004- |
| MAN | 32350 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 32350 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 32360 10.5 | (TGA)[D2066LF03] | 02.2004- |
| MAN | 32360 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 32360 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 32390 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 32390 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 32390 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 32400 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 32400 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 32400 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 32430 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 32430 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 32430 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 32440 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 32440 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 32440 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 33350 10.5 | (TGA)[D2066LF03] | 05.2004- |
| MAN | 33350 10.5 | (TGA)[D2066LF13] | 05.2004- |
| MAN | 33350 10.5 | (TGA)[D2066LF33] | 05.2004- |
| MAN | 33360 10.5 | (TGA)[D2066LF03] | 05.2004- |
| MAN | 33360 10.5 | (TGA)[D2066LF13] | 05.2004- |
| MAN | 33360 10.5 | (TGA)[D2066LF33] | 05.2004- |
| MAN | 33390 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 33390 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 33390 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 33400 10.5 | (TGA)[D2066LF02] | 05.2004- |
| MAN | 33400 10.5 | (TGA)[D2066LF12] | 05.2004- |
| MAN | 33400 10.5 | (TGA)[D2066LF32] | 05.2004- |
| MAN | 33400 10.5 | (TGX)[D2066LF37] | 10.2007- |
| MAN | 33430 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 33430 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 33430 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 33440 10.5 | (TGA)[D2066LF01] | 05.2004- |
| MAN | 33440 10.5 | (TGA)[D2066LF11] | 05.2004- |
| MAN | 33440 10.5 | (TGA)[D2066LF31] | 05.2004- |
| MAN | 33680 16.2 | 10.2007- | |
| MAN | 35.310 10.5 | (TGA)[D2066LF04] | 02.2004- |
| MAN | 35.310 10.5 | (TGA)[D2066LF35] | 02.2004- |
| MAN | 35.320 10.5 | (TGA)[D2066LF04] | 02.2004- |
| MAN | 35.320 10.5 | (TGA)[D2066LF35] | 02.2004- |
| MAN | 35.350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 35.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 |
| MAN | 35.350 10.5 | (TGA)[D2066LF33] | 02.2004- |
| MAN | 35.360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 35.360 10.5 | (TGA)[D2066LF13] | 02.2004- |
| MAN | 35.360 10.5 | (TGA)[D2066LF33] | 07.2006- |
| MAN | 35.390 10.5 | (TGA)[D2066LF02] | 06.2004-09.2006 |
| MAN | 35.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 |
| MAN | 35.390 10.5 | (TGA)[D2066LF32] | 02.2004- |
| MAN | 35.400 10.5 | (TGA)[D2066LF02] | 02.2004- |
| MAN | 35.400 10.5 | (TGA)[D2066LF12] | 02.2004- |
| MAN | 35.400 10.5 | (TGA)[D2066LF32] | 07.2006- |
| MAN | 35.430 10.5 | (TGA)[D2066LF01] | 02.2004-09.2006 |
| MAN | 35.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 |
| MAN | 35.430 10.5 | (TGA)[D2066LF31] | 02.2004- |
| MAN | 35.440 10.5 | (TGA)[D2066LF01] | 02.2004- |
| MAN | 35.440 10.5 | (TGA)[D2066LF11] | 02.2004- |
| MAN | 35.440 10.5 | (TGA)[D2066LF31] | 07.2006- |
| MAN | 37.310 10.5 | (TGA)[D2066LF04] | 12.2004- |
| MAN | 37.310 10.5 | (TGA)[D2066LF35] | 12.2004- |
| MAN | 37.320 10.5 | (TGA)[D2066LF04] | 12.2004- |
| MAN | 37.320 10.5 | (TGA)[D2066LF35] | 12.2004- |
| MAN | 37.350 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 |
| MAN | 37.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 |
| MAN | 37.350 10.5 | (TGA)[D2066LF33] | 12.2004- |
| MAN | 37.360 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 |
| MAN | 37.360 10.5 | (TGA)[D2066LF13] | 12.2004- |
| MAN | 37.360 10.5 | (TGA)[D2066LF33] | 07.2006- |
| MAN | 37.390 10.5 | (TGA)[D2066LF02] | 03.2004-09.2006 |
| MAN | 37.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 |
| MAN | 37.390 10.5 | (TGA)[D2066LF32] | 12.2004- |
| MAN | 37.400 10.5 | (TGA)[D2066LF02] | 12.2004- |
| MAN | 37.400 10.5 | (TGA)[D2066LF12] | 12.2004- |
| MAN | 37.400 10.5 | (TGA)[D2066LF32] | 12.2004- |
| MAN | 37.430 10.5 | (TGA)[D2066LF01] | 03.2004-09.2006 |
| MAN | 37.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 |
| MAN | 37.430 10.5 | (TGA)[D2066LF31] | 12.2004- |
| MAN | 37.440 10.5 | (TGA)[D2066LF01] | 12.2004- |
| MAN | 37.440 10.5 | (TGA)[D2066LF11] | 12.2004- |
| MAN | 37.440 10.5 | (TGA)[D2066LF31] | 07.2006- |
| MAN | 37.480 12.4 | (TGA)[D2676LF01] | 02.2006- |
| MAN | 40.390 10.5 | (TGA)[D2066LF02] | 01.2005-09.2006 |
| MAN | 40.390 10.5 | (TGA)[D2066LF06] | 06.2005- |
| MAN | 40.390 10.5 | (TGA)[D2066LF37] | 06.2005- |
| MAN | 40.400 10.5 | (TGA)[D2066LF02] | 06.2005- |
| MAN | 40.400 10.5 | (TGA)[D2066LF06] | 06.2005- |
| MAN | 40.400 10.5 | (TGA)[D2066LF37] | 06.2005- |
| MAN | 40.430 10.5 | (TGA)[D2066LF01] | 01.2005-09.2006 |
| MAN | 40.430 10.5 | (TGA)[D2066LF36] | 06.2005- |
| MAN | 40.440 10.5 | (TGA)[D2066LF01] | 06.2005- |
| MAN | 40.440 10.5 | (TGA)[D2066LF36] | 06.2005- |
| MAN | 40.480 12.4 | (TGA)[D2676LF02] | 06.2005- |
| MAN | 40.480 12.4 | (TGA)[D2676LF03] | 06.2005- |
| MAN | 41.350 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 |
| MAN | 41.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 |
| MAN | 41.350 10.5 | (TGA)[D2066LF33] | 12.2004- |
| MAN | 41.360 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 |
| MAN | 41.360 10.5 | (TGA)[D2066LF13] | 12.2004- |
| MAN | 41.360 10.5 | (TGA)[D2066LF33] | 07.2003- |
| MAN | 41.390 10.5 | (TGA)[D2066LF02] | 03.2004-09.2006 |
| MAN | 41.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 |
| MAN | 41.390 10.5 | (TGA)[D2066LF32] | 12.2004- |
| MAN | 41.400 10.5 | (TGA)[D2066LF02] | 12.2004- |
| MAN | 41.400 10.5 | (TGA)[D2066LF12] | 12.2004- |
| MAN | 41.400 10.5 | (TGA)[D2066LF32] | 07.2006- |
| MAN | 41.430 10.5 | (TGA)[D2066LF01] | 06.2004-09.2006 |
| MAN | 41.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 |
| MAN | 41.430 10.5 | (TGA)[D2066LF31] | 12.2004- |
| MAN | 41.440 10.5 | (TGA)[D2066LF01] | 12.2004- |
| MAN | 41.440 10.5 | (TGA)[D2066LF11] | 12.2004- |
| MAN | 41.440 10.5 | (TGA)[D2066LF31] | 07.2006- |
| MAN | 41.480 12.4 | (TGA)[D2676LF01] | 02.2006- |
| MAN | 41.680 16.2 | (TGX)[D2868LF03] | 10.2007- |
| NEOPLAN | N 2216 10.5 | [D2066LOH04] | 06.2006- |
| TEMSA | 14 10.5 | [D2066LOH04] | 01.2006- |
Reference Information
| 011-003-001087R | REMANTE |
| 0124655025 | BOSCH |
| 0124655028 | BOSCH |
| 0399901011 | BOSCH |
| 063731997010 | MAGNETI MARELLI |
| 0986049820 | BOSCH |
| 10443426 | ALANKO |
| 111790 | FARCOM |
| 11.209.658 | ISKRA / LETRIKA |
| 114528 | CARGO |
| 115496 | CARGO |
| 12049820 | EUROTEC |
| 124655025Y | TEMSA |
| 180637 | FEBI BILSTEIN |
| 18.1997 | CQ |
| 18.1997M | CQ |
| 19092059 | DELCO |
| 1986A00517 | BOSCH |
| 1986A00974 | BOSCH |
| 20010607AV | ITAB AUTOMOTIVE |
| 20010607IV | ITAB AUTOMOTIVE |
| 20010607OV | ITAB AUTOMOTIVE |
| 20010607RV | ITAB AUTOMOTIVE |
| 20101706BN | REAL |
| 20101706IT | REAL |
| 20101706OE | REAL |
| 20101706RC | REAL |
| 2010607.0 | SANDO |
| 2010607.1 | SANDO |
| 2010607.2 | SANDO |
| 2010607.5 | SANDO |
| 20617N | WAI / TRANSPO |
| 209019 | ERA |
| 2511 | CEVAM |
| 301997RI | KUHNER |
| 301997RIB | KUHNER |
| 301997RIM | KUHNER |
| 3121288 | HENKEL PARTS |
| 3121289 | HENKEL PARTS |
| 3121291 | HENKEL PARTS |
| 387025047001 | ISUZU |
| 442015 | LOGISTIK |
| 48-5795 | ELSTOCK |
| 51261017278 | MAN |
| 51261017283 | MAN |
| 51261017287 | MAN |
| 51261017296 | MAN |
| 51261019278 | MAN |
| 51261019278 | MAN |
| 51261019283 | MAN |
| 51261019296 | MAN |
| 556.507.120.010 | PSH |
| 556.507.120.014 | PSH |
| 556.507.120.018 | PSH |
| 556.507.120.019 | PSH |
| 556.507.120.215 | PSH |
| 556.507.120.280 | PSH |
| 556.507.120.382 | PSH |
| 556.507.120.770 | PSH |
| 5610046 | MEAT & DORIA |
| 5711041204 | DRI |
| 6.8051.1 | IKA |
| 72525339 | MAHLE |
| 860812 | PRESTOLITE |
| 861297GB | PRESTOLITE |
| 89213386 | POWERMAX |
| 8EL012584-461 | HELLA |
| 8EL738212-291 | HELLA |
| 943319971010 | MAGNETI MARELLI |
| 9949820 | FRIESEN |
| A-10299 | DTS |
| A133.924 | PSH |
| A147.528 | PSH |
| A24BH0044 | SIDAT |
| A24BH0044AS | SIDAT |
| AAN8244 | ISKRA / LETRIKA |
| ABO607 | AUTOTEAM |
| ABO607A | AUTOTEAM |
| AC-CBA1997 | ACAUTO |
| AG0004 | GHIBAUDI |
| AL04065 | TMI |
| ALT10704 | WOODAUTO |
| ALT126070 | SIOM |
| ALT126070A | SIOM |
| ALT126070I | SIOM |
| ALT126070R | SIOM |
| ALT1338 | ELECTROLOG |
| ALTS382 | 3EFFE |
| ALTS382B | 3EFFE |
| ANM32462X | ANDEL |
| AVI147S3003HD | PRESTOLITE |
| AVI147S3103HD | PRESTOLITE |
| BOS0124655003R | WOODAUTO |
| CA1997IR | HC PARTS |
| CAL10607AS | CASCO |
| CAL10607GS | CASCO |
| CAL10607IS | CASCO |
| CAL10607RS | CASCO |
| CGB-14659 | AINDE |
| CGB-14659R | AINDE |
| DRA0242 | DELCO |
| F032114528 | CARGO |
| F032115496 | CARGO |
| H5610046 | HOFFER |
| IA9456 | ISKRA / LETRIKA |
| L49820 | ATL AUTOTECHNIK |
| LEA0973 | LE PART |
| LRA03183 | LUCAS |
| LRA3183 | LUCAS |
| MARC1997 | MAGNETI MARELLI |
| MG804 | MAHLE |
| MQA1997 | MAGNETI MARELLI |
| PRAS382 | 3EFFE |
| PRAS382B | 3EFFE |
| PTC-3081 | POWER TRUCK |
| TT12414 | TESLA |
| WG2010968 | WILMINK GROUP |
| WG2044002 | WILMINK GROUP |
| WG2280976 | WILMINK GROUP |
| WG2283005 | WILMINK GROUP |
| WG2371660 | WILMINK GROUP |
| WOOALT10299 | WOODAUTO |
| WOOALT10704 | WOODAUTO |
Video/Publications
A0258SRRelated Items
View your shopping basket or Browse other items in Alternators.
