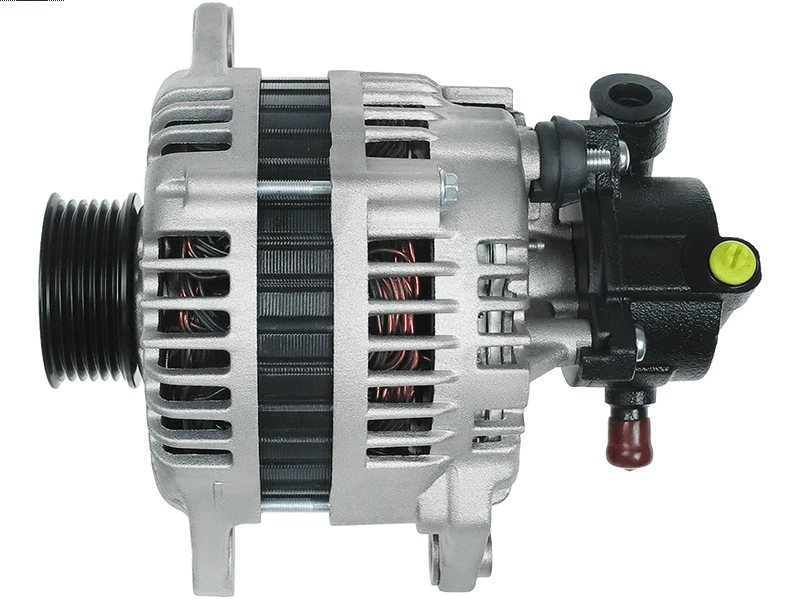

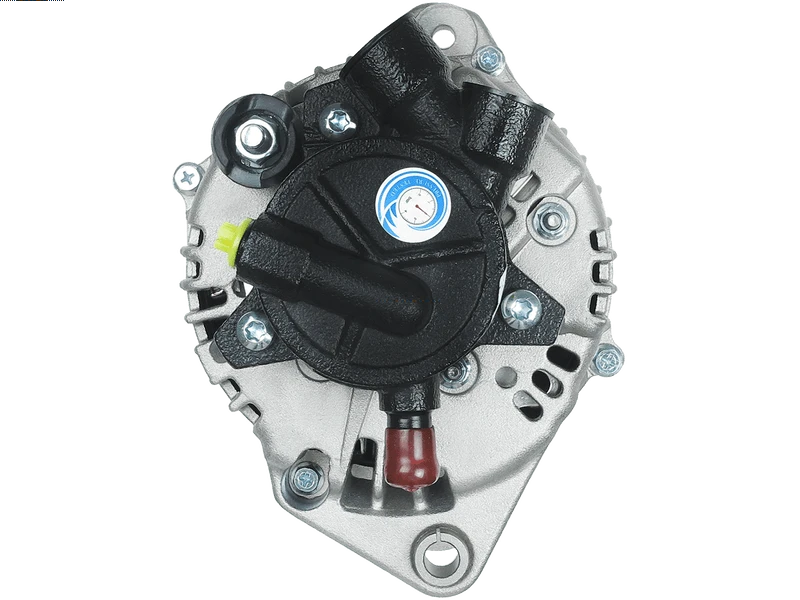

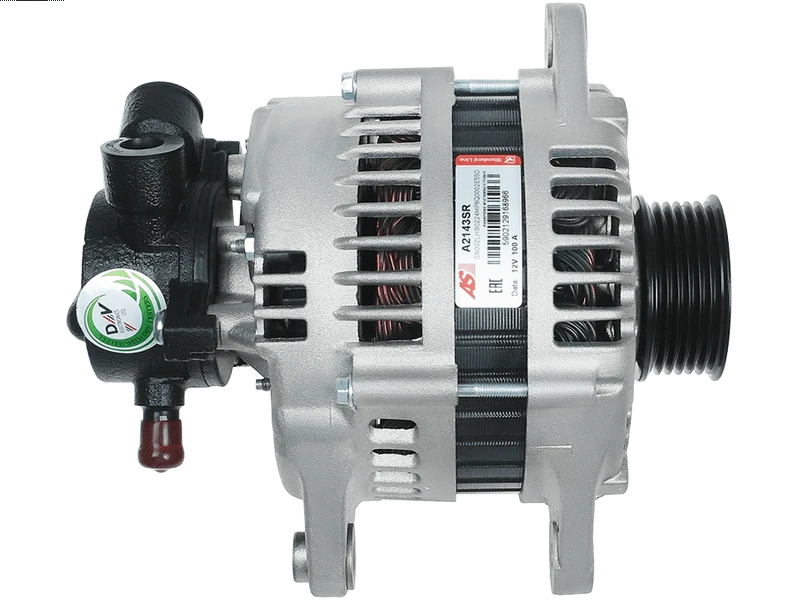

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 402.65 including GST
NZ$ 350.13 excluding GST
or four payments of $100.66
with
Learn More
each
A2143SR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 224 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66 mm |
| OEM Product | No |
| Plug Code | PL_2001 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 35.50 mm |
| Pulley Type | Solid |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra 1.7 CDTi | [D17DTL] | 08.2004- |
| OPEL | Astra 1.7 CDTi | [Z17DTH] | 02.2007- |
| OPEL | Astra 1.7 CDTi | [Z17DTH] | 03.2004- |
| OPEL | Astra 1.7 CDTi | [Z17DTH] | 08.2004- |
| OPEL | Astra 1.7 CDTi Ecotec | [Z17DTL] | 03.2005-03.2007 |
| OPEL | Astra 1.7 CDTi GTC | [Z17DTH] | 03.2005- |
| VAUXHALL | Astra 1.7 CDTi | [Z17DTH] | 02.2005-11.2010 |
| VAUXHALL | Astra 1.7 CDTi | [Z17DTH] | 03.2004-03.2007 |
| VAUXHALL | Astra 1.7 CDTi | [Z17DTH] | 08.2004-03.2007 |
| VAUXHALL | Astra 1.7 CDTi | [Z17DTL] | 03.2004-03.2007 |
| VAUXHALL | Astra 1.7 CDTi | [Z17DTL] | 08.2004-05.2009 |
| VAUXHALL | Astravan 1.7 CDTi | [Z17DTL] | 03.2005-07.2006 |
| VAUXHALL | Astravan 1.7 CDTi | [Z17DTL] | 04.2004-08.2006 |
| VAUXHALL | Astravan 1.7 CDTi 16V | [Z17DTH] | 03.2005-11.2011 |
Reference Information
| 002-U918I | ASHIKA |
| 063731899010 | MAGNETI MARELLI |
| 0986048320 | BOSCH |
| 113956 | CARGO |
| 1204619 | OPEL |
| 135.603.100.080 | PSH |
| 135.603.100.086 | PSH |
| 135.603.100.089 | PSH |
| 135.603.100.208 | PSH |
| 135.603.100.275 | PSH |
| 136103 | HITACHI |
| 20145631BN | REAL |
| 20145631OE | REAL |
| 20145631RE | REAL |
| 2020136.0 | SANDO |
| 2020136.1 | SANDO |
| 2020136.4 | SANDO |
| 210322 | ERA |
| 23802N | WAI / TRANSPO |
| 2506102 | HITACHI |
| 2506103 | HITACHI |
| 28-4992 | ELSTOCK |
| 2U918I | JAPKO |
| 32100507 | HERTH+BUSS |
| 401899RI | KUHNER |
| 401899RIL | KUHNER |
| 440652 | VALEO |
| 446956 | LOGISTIK |
| 6204183 | OPEL |
| 6204199 | OPEL |
| 6204200 | OPEL |
| 6204254 | OPEL |
| 6204255 | OPEL |
| 6204288 | OPEL |
| 6204289 | OPEL |
| 89212169 | POWERMAX |
| 8973695010 | ISUZU |
| 8973695011 | ISUZU |
| 8973695012 | ISUZU |
| 8973695013 | ISUZU |
| 8973695070 | ISUZU |
| 8973695071 | ISUZU |
| 8973695072 | ISUZU |
| 8973695073 | ISUZU |
| 8973695080 | ISUZU |
| 8-97369-508-0 | ISUZU |
| 8973695081 | ISUZU |
| 8-97369-508-1 | ISUZU |
| 8973695082 | ISUZU |
| 8-97369-508-2 | ISUZU |
| 8980564410 | ISUZU |
| 8-98056-441-0 | ISUZU |
| 8EL011711-761 | HELLA |
| 8EL738211-591 | HELLA |
| 9090335 | FRIESEN |
| 9181 | CEVAM |
| 93189497 | VAUXHALL |
| 93189498 | OPEL |
| 93189499 | OPEL |
| 93189499 | VAUXHALL |
| 93189504 | OPEL |
| 93189505 | OPEL |
| 943318099010 | MAGNETI MARELLI |
| 943358377010 | MAGNETI MARELLI |
| 944390903350 | MAGNETI MARELLI |
| 944390903360 | MAGNETI MARELLI |
| 95520890 | OPEL |
| 95520890 | VAUXHALL |
| 95521473 | GM |
| 9562191 | OPEL |
| 9562192 | OPEL |
| 97369507 | OPEL |
| 97369508 | GM |
| 98056441 | VAUXHALL |
| 98056441 | OPEL |
| 98056441 | GM |
| 98056442 | OPEL |
| A12HT0463A2 | SIDAT |
| A130.258 | PSH |
| A149.565 | PSH |
| AEG1044 | AUTOELECTRO |
| ALH1899 | KRAUF |
| ALT221360 | SIOM |
| ALT32100 | WOODAUTO |
| ALT358CP | ROLLCO |
| ALTL133 | 3EFFE |
| ALTL133LU | 3EFFE |
| ALTL133M | 3EFFE |
| ALTL133NE | 3EFFE |
| ALU918I | JAPANPARTS |
| CAL20136AS | CASCO |
| CAL20136GS | CASCO |
| CAL20136OS | CASCO |
| CGB-10508 | AINDE |
| CGB-10508R | AINDE |
| CGB-84923 | AINDE |
| DA5338 | DELCO |
| DRA4228 | DELCO |
| DRA4228N | DELCO |
| F032113956 | CARGO |
| HITLR1100-508 | WOODAUTO |
| JA1899IR | HC PARTS |
| LR100508 | HITACHI |
| LR1100507 | HITACHI |
| LR1100-507 | HITACHI |
| LR1100507A | HITACHI |
| LR1100-507A | HITACHI |
| LR1100507B | HITACHI |
| LR1100-507B | HITACHI |
| LR1100507C | HITACHI |
| LR1100-507C | HITACHI |
| LR1100-507D | HITACHI |
| LR1100507E | HITACHI |
| LR1100-507E | HITACHI |
| LR1100-508 | HITACHI |
| LR1100-508A | HITACHI |
| LR1100-508B | HITACHI |
| LR1100-508C | HITACHI |
| LR1100-508D | HITACHI |
| LR1100-508E | HITACHI |
| LR1100-508F | HITACHI |
| LRA02876 | LUCAS |
| LRA2876 | LUCAS |
| MAR1899 | MAGNETI MARELLI |
| MAR5178 | MAGNETI MARELLI |
| MQA1899 | MAGNETI MARELLI |
| MRA90336 | MAGNETI MARELLI |
| NEG1044 | AUTOELECTRO |
| PRAL133 | 3EFFE |
| PRAL133LU | 3EFFE |
| R1530092 | VAUXHALL |
| R1530092 | OPEL |
| R1530093 | VAUXHALL |
| STX100003 | STARDAX |
| STX100003R | STARDAX |
| STX100157 | STARDAX |
| STX100157R | STARDAX |
