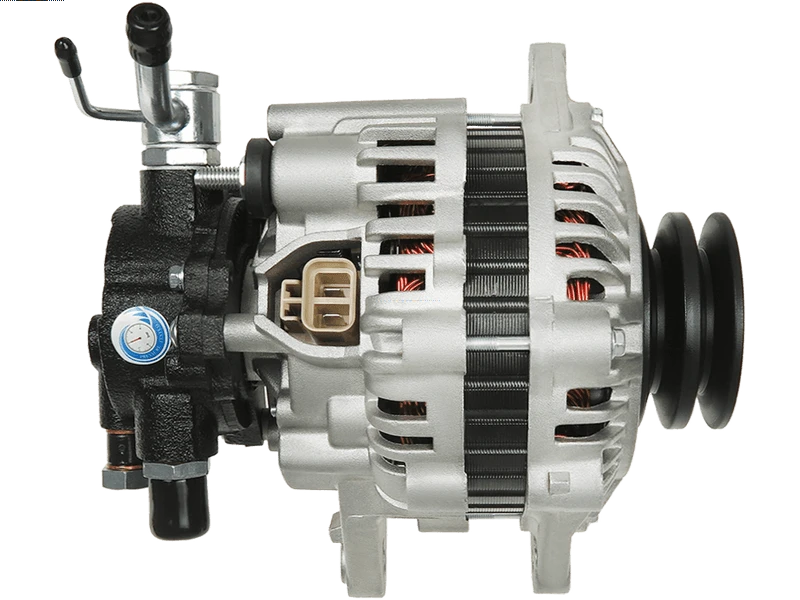

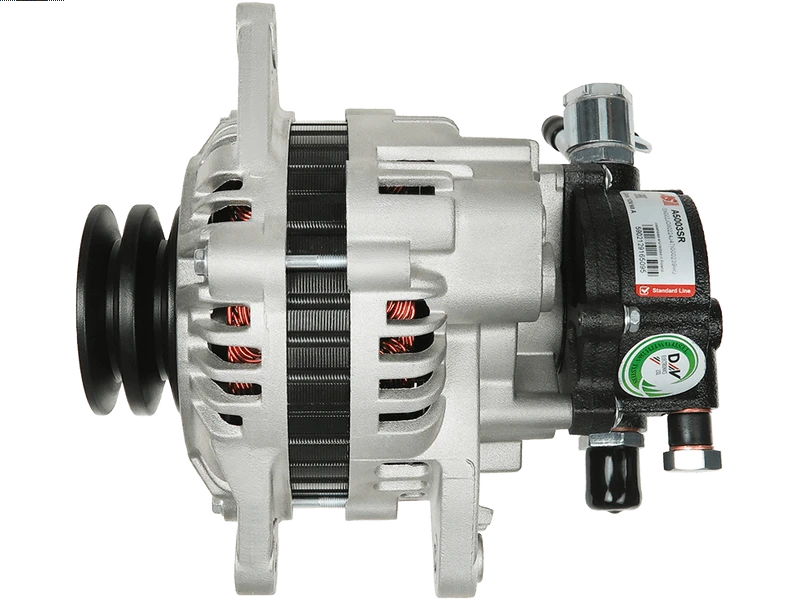

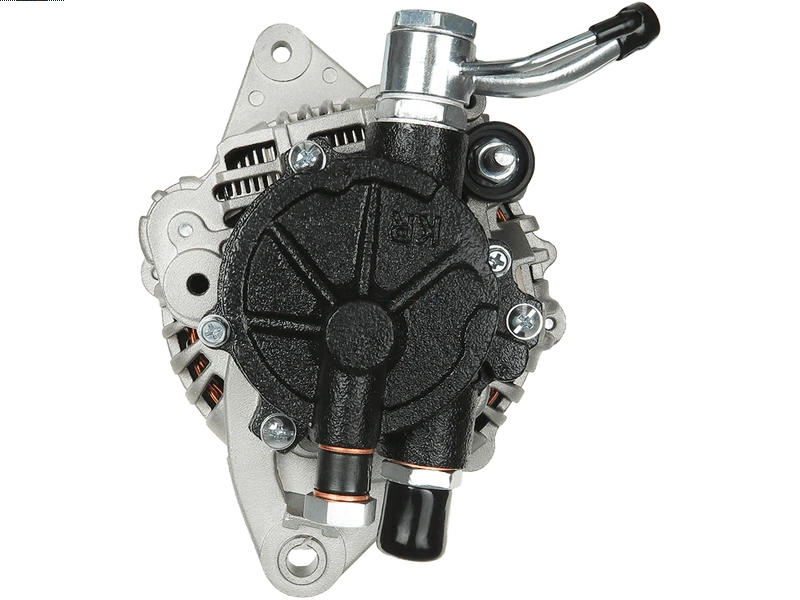

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 469.74 including GST
NZ$ 408.47 excluding GST
or four payments of $117.44
with
Learn More
each
A5003SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 228 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 2 qty |
| Pulley Outside Diameter (O.D.1) | 51 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | H-1 2.5 TD | [D4BH] | 03.2000- |
| HYUNDAI | H-1 2.5 TD Starex 4WD | 03.2001- | |
| HYUNDAI | Starex 2.5 TD | [D4BF] | 06.1997- |
| HYUNDAI | Starex 2.5 TD 4WD | [D4BF] | 02.1998- |
| MITSUBISHI | L 200 2.5 TD 4WD | [4D56] | 01.1996- |
| MITSUBISHI | Pajero 2.5 TD | (V24C,W)[4D56TD] | 11.1993-04.2000 |
Reference Information
| 002-C980 | ASHIKA |
| 0986045561 | BOSCH |
| 0986049930 | BOSCH |
| 112205 | CARGO |
| 12667N | WAI / TRANSPO |
| 155.604.090.130 | PSH |
| 155.604.090.360 | PSH |
| 1800A005 | MITSUBISHI |
| 20110236 | PRESTOLITE |
| 20137011BN | REAL |
| 20137011OE | REAL |
| 2035110.0 | SANDO |
| 2035110.1 | SANDO |
| 210114 | ERA |
| 28-2848 | ELSTOCK |
| 2C980 | JAPKO |
| 401419RI | KUHNER |
| 401419RIV | KUHNER |
| 446468 | LOGISTIK |
| 56953 | EAI |
| 89213908 | POWERMAX |
| 8EL737675-001 | HELLA |
| 9341 | CEVAM |
| A002T82899 | MITSUBISHI |
| A002T82899A | MITSUBISHI |
| A002T82899AT | MITSUBISHI |
| A002T82899ZT | MITSUBISHI |
| A002TN0499 | MITSUBISHI |
| A002TN0499AT | MITSUBISHI |
| A002TN0499ZT | MITSUBISHI |
| A003TN0699 | MITSUBISHI |
| A003TN0699A | MITSUBISHI |
| A003TN0699AM | MITSUBISHI |
| A003TN0899 | MITSUBISHI |
| A003TN1199 | MITSUBISHI |
| A12MH0044A2 | SIDAT |
| A2T82899 | MITSUBISHI |
| A2T82899A | MITSUBISHI |
| A2T82899AT | MITSUBISHI |
| A2T82899ZT | MITSUBISHI |
| A2TN0499 | MITSUBISHI |
| A2TN0499AT | MITSUBISHI |
| A2TN0499ZT | MITSUBISHI |
| A3TN0699 | MITSUBISHI |
| A3TN0699A | MITSUBISHI |
| A3TN0699AM | MITSUBISHI |
| A3TN0899 | MITSUBISHI |
| A3TN1199 | MITSUBISHI |
| AAL1750 | APEC |
| AEB1419 | AUTOELECTRO |
| ALC980 | JAPANPARTS |
| ALM1419 | KRAUF |
| ALT5428 | ELECTROLOG |
| ALT6240 | SIOM |
| ALT6320 | SIOM |
| ALTL049 | 3EFFE |
| ANM36089X | ANDEL |
| CAL35110AS | CASCO |
| CAL35110GS | CASCO |
| CGB-13869 | AINDE |
| DRA3869 | DELCO |
| F032112205 | CARGO |
| F042303112 | BOSCH |
| JA1419IR | HC PARTS |
| LRA01648 | LUCAS |
| LRA1648 | LUCAS |
| MD230359 | MITSUBISHI |
| MD306649 | MITSUBISHI |
| MD313939 | MITSUBISHI |
| MD320354 | MITSUBISHI |
| MD334176 | MITSUBISHI |
| MD335227 | MITSUBISHI |
| MD366050 | MITSUBISHI |
| MN137866 | MITSUBISHI |
| MN137867 | MITSUBISHI |
| NPANAL1750 | NAPA |
| PRAL049 | 3EFFE |
| RNL980CA | RNL |
| STX100123 | STARDAX |
| STX100123R | STARDAX |
| STX100173 | STARDAX |
| STX100173R | STARDAX |
| STX100432 | STARDAX |
| STX101598 | STARDAX |
