A5030SR - Remanufactured AS-PL Alternator

Name: Remanufactured AS-PL Alternator
Brand: AS GROUP NZ
SKU: A5030SR
Price: 375.71 NZD
Availability: InStock

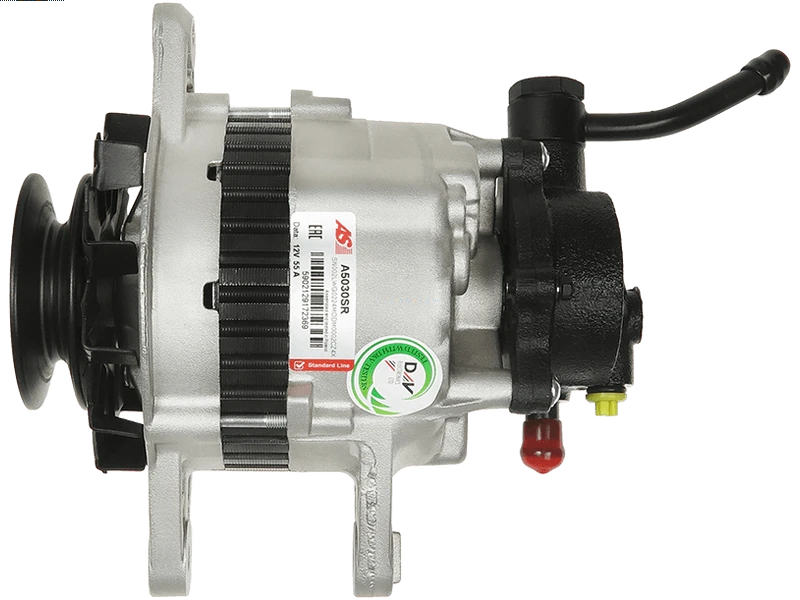

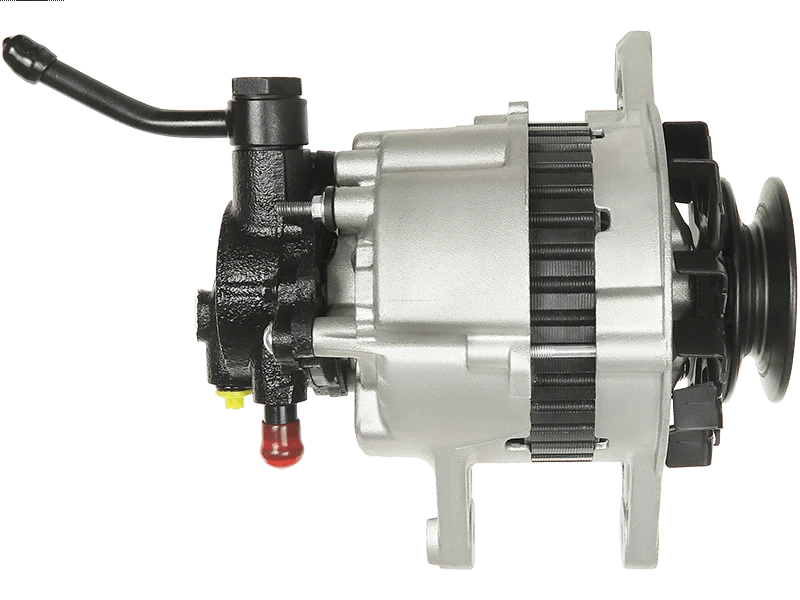

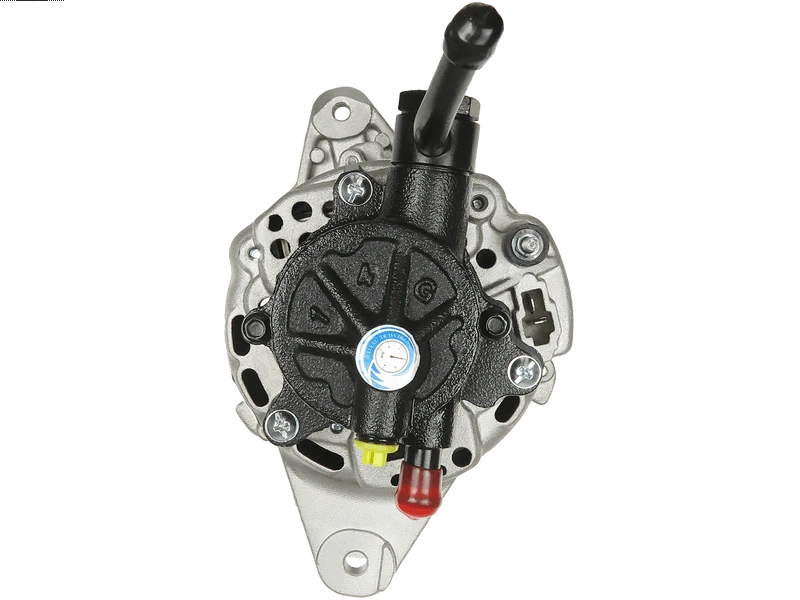

Remanufactured AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 375.71 including GST

NZ$ 326.70 excluding GST

UOM:

each

Product Code:

A5030SR

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Specifications
Vehicle Applications
Reference Information
Add Your Number

Amp	55 A
Bottom Mounting Foot Width (B)	12.5 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	8.5 mm
Grooves	1 qty
Groove Width (W.1)	15 mm
Length (L.1)	213 mm
Mount Inside Length or Pad Mount C-C (C)	55 mm
OEM Product	No
Outside Diameter (O.D.1)	48 mm
Outside Diameter (O.D.2)	82 mm
Plug Code	PL_2500
Product Line	Standard Line
Product Type	Remanufactured
Pulley to Mount Distance (A)	45.5 mm
Pulley Type	SOLID
Unit Type	MITSUBISHI
Vacuum Pump	Yes
Voltage	12 V

Make	Model	Type	Year
MITSUBISHI	Delica 2.3 D	[4D55]	04.1983-10.1986
MITSUBISHI	Galant 2.3 Turbo-D	[4D55-T]	07.1980-05.1984
MITSUBISHI	L200 2.5 D	[4D56(8V)]	11.1986-10.1996
MITSUBISHI	L200 2.5 D 4WD	[4D56(8V)]	12.1987-05.1993
MITSUBISHI	L200 2.5 TD 4WD	[4D56-T]	11.1992-08.1996
MITSUBISHI	L300 2.3 D	[4D55]	09.1983-10.1986
MITSUBISHI	Pajero 2.3 TD	[4D55-T]	12.1982-04.1986

A2T16472 9120690078 40148RI MD068565 A5T15371 A003T21371 MD022572 A005T21684 A2T24771 AQ2250G MD022576 MD022579 MD022578 A005T20481 AQ2250G1 A005T21171 A002T22784 A5T15884 A005T16384 56143 A005T20484A AQ2250G7 MD013740 MD013742 A005T15784 MD061818 A5T22484 MD025679 A005T20484 A005T22784 MDO60793 MD102865 A2T41371 MD086015 MD064066 MD064067 MD064068 MD086016 MDO50190 A002T16472 A2T15884 AQ2245G1 CGB-13035 37300-42012 AH2250HG1 A3T21371 A002T24771 A5T21684 210728 A2T49377 A005T21984 A2T41377 1516870R A005T21071 CAL35135GS MD060793 LRA00501 9017 A5T21171 A5T20481 A005T15884 MD304139 20137531OE A5T15584 A5T20484 A5T22784 A2T44071 MD050190 MD095741 A005T21077 155.801.060.607 A2T23271 A2T24884 437143 A2T23277 A2T40671 A002T15884 MD092877 28-0836 445197 A2T15584 A002T49377 A5T16384 A5T21984 A5T20484AM A5T20484A MD027661 A002T41371 2035135.1 155.801.060.138 A005T20434 155.801.060.139 A005T23784 A2T42671 A002T40671 AEA4199 MD070310 89213517 MD067411R A5T21071 AM21-18-300 A002T44071 A005T15584 A002T23277 A5T21077 A5T15684 A3T35577 AD150421 ALT5165 MD041701 CAL35135AS MD069859 ALM0148 MD041700 A5T21984A MD061150 MD061151 JA148IR A5T21984B A002T15584 MD067411 LRA501 AM15-18-300 8EL726378-001 MD013742R A5T20434 A5T23784 A005T21984B A5T16084 AD150413 3730042014 A2T49577 A2T22784 155.801.060.130 A005T16084 MD086049 MD087246R 20137531BN 110318 09120690078 A005T15684 ALT31007 AQ2245G 2035135 A5T15784 A005T20484AM A002T42671 A12MH0168A2 A005T22484 A002T25271 A003T35577
