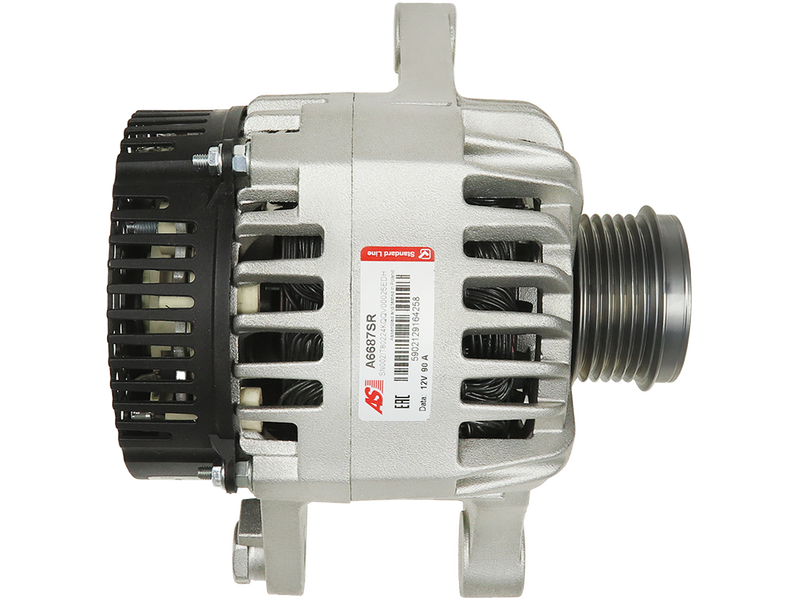

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 469.74 including GST
NZ$ 408.47 excluding GST
or four payments of $117.44
with
Learn More
each
A6687SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 171 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51.50 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.6 | [1ZR-FE] | 03.2007-09.2012 |
| TOYOTA | Corolla 1.6 | [1ZR-FAE] | 11.2006-11.2013 |
| TOYOTA | Corolla 1.6 | [1ZR-FE] | 11.2006-11.2013 |
| TOYOTA | Corolla 1.6 Dual VVTi | [1ZR-FE] | 01.2007-07.2014 |
Reference Information
| 101210-0910 | DENSO |
| 101210-0911 | DENSO |
| 101210-0912 | DENSO |
| 114455 | CARGO |
| 195.937.090.260 | PSH |
| 20132763OE | REAL |
| 2040367.1 | SANDO |
| 20487R | WAI / TRANSPO |
| 209435 | ERA |
| 27060-0T010 | TOYOTA |
| 27060-0T011 | TOYOTA |
| 27060-0T012 | TOYOTA |
| 28-5968 | ELSTOCK |
| 4271 | CEVAM |
| 447081 | LOGISTIK |
| 554664RID | KUHNER |
| 63377565010 | MAGNETI MARELLI |
| 89215773 | POWERMAX |
| 8EL012240-691 | HELLA |
| AEC2027 | AUTOELECTRO |
| ALN6110 | KRAUF |
| ALT423670 | SIOM |
| ALT6151 | ELECTROLOG |
| ALTF398 | 3EFFE |
| CAL40367GS | CASCO |
| DA2014 | DELCO |
| DAN1061 | DENSO |
| DENDAN1061 | WOODAUTO |
| DRA0904 | DELCO |
| F032114455 | CARGO |
| LRA03356 | LUCAS |
| LRA3356 | LUCAS |
| MAN7565 | MAGNETI MARELLI |
| PRAF398 | 3EFFE |
