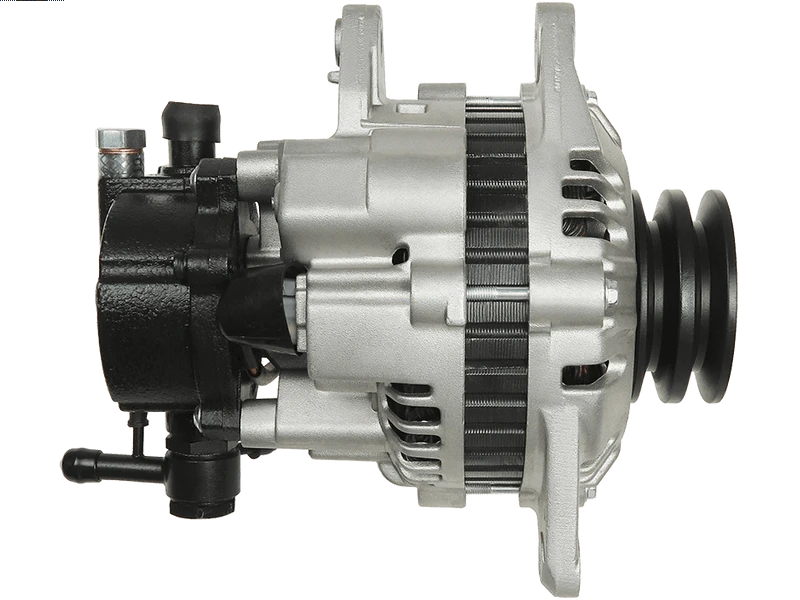

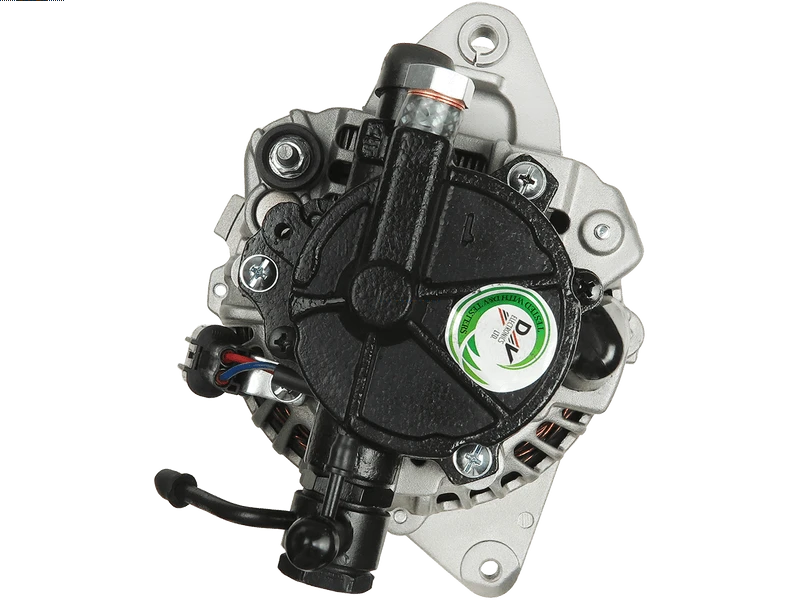

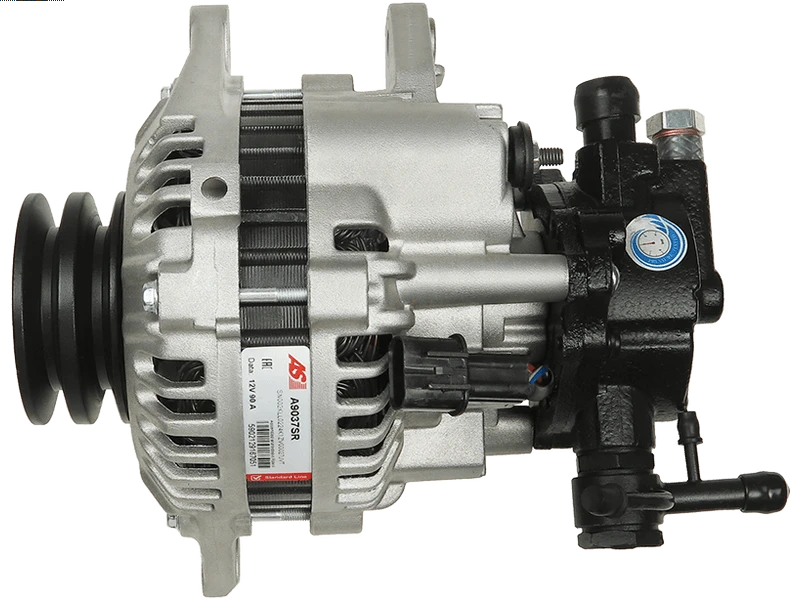

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 603.95 including GST
NZ$ 525.17 excluding GST
or four payments of $150.99
with
Learn More
each
A9037SR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 227 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Plug Code | PL_2811 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 54.50 mm |
| Pulley Outside Diameter (O.D.2) | 77.50 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | HYUNDAI / KIA |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Galloper 2.5 TCi D | [D4BH] | 08.1998-12.2003 |
| HYUNDAI | Galloper 2.5 TD | [D4BA] | 08.1998-12.2003 |
| HYUNDAI | Galloper 3.0 V6 | [G6AT] | 08.1998-12.2003 |
| HYUNDAI | Terracan 2.5 TD | [D4BH] | 12.2001-12.2006 |
Reference Information
| 063731717010 | MAGNETI MARELLI |
| 0986049720 | BOSCH |
| 113519 | CARGO |
| 155.608.090.120 | PSH |
| 155.608.090.360 | PSH |
| 20193311BN | REAL |
| 20193311OE | REAL |
| 2032113.0 | SANDO |
| 2032113.1 | SANDO |
| 210332 | ERA |
| 22956N | WAI / TRANSPO |
| 28-3852 | ELSTOCK |
| 37300-42542 | HYUNDAI / KIA |
| 37300-42860 | HYUNDAI / KIA |
| 3730042861 | HYUNDAI / KIA |
| 3730042862 | HYUNDAI / KIA |
| 3730042863 | HYUNDAI / KIA |
| 37300-42863 | HYUNDAI / KIA |
| 37300-42870 | HYUNDAI / KIA |
| 37300-42871 | HYUNDAI / KIA |
| 3730042872 | HYUNDAI / KIA |
| 37300-42880 | HYUNDAI / KIA |
| 37300-47500 | HYUNDAI / KIA |
| 37300-47501 | HYUNDAI / KIA |
| 37300-47502 | HYUNDAI / KIA |
| 37300-47503 | HYUNDAI / KIA |
| 401717RI | KUHNER |
| 401717RIM | KUHNER |
| 446766 | LOGISTIK |
| 447063 | LOGISTIK |
| 56954 | EAI |
| 89213286 | POWERMAX |
| 8EL011711-271 | HELLA |
| 9404 | CEVAM |
| 944390904510 | MAGNETI MARELLI |
| A12HY0114A2 | SIDAT |
| A12HY1199A2 | SIDAT |
| A1717IR | WOODAUTO |
| AF175207 | MANDO |
| AF175362 | MANDO |
| AF175385 | MANDO |
| AF190216 | MANDO |
| AF190217 | MANDO |
| AG0588 | GHIBAUDI |
| ALA1717 | KRAUF |
| ALC981 | JAPANPARTS |
| ALT35047 | WOODAUTO |
| ALT8724 | ELECTROLOG |
| ANM36396X | ANDEL |
| CAL32113AS | CASCO |
| CAL32113GS | CASCO |
| CGB-13033 | AINDE |
| DRA4176 | DELCO |
| F032113519 | CARGO |
| GA042542-A | GPARTS |
| GA042870-A | GPARTS |
| J5110526 | HERTH+BUSS |
| JA1717IR | HC PARTS |
| LRA01956 | LUCAS |
| LRA1956 | LUCAS |
| MQA1717 | MAGNETI MARELLI |
| N370-18-300 | MAZDA |
| N370-18-300A | MAZDA |
| N370-18-300B | MAZDA |
| N370-18-300H | MAZDA |
| STX100036 | STARDAX |
| STX100036R | STARDAX |
