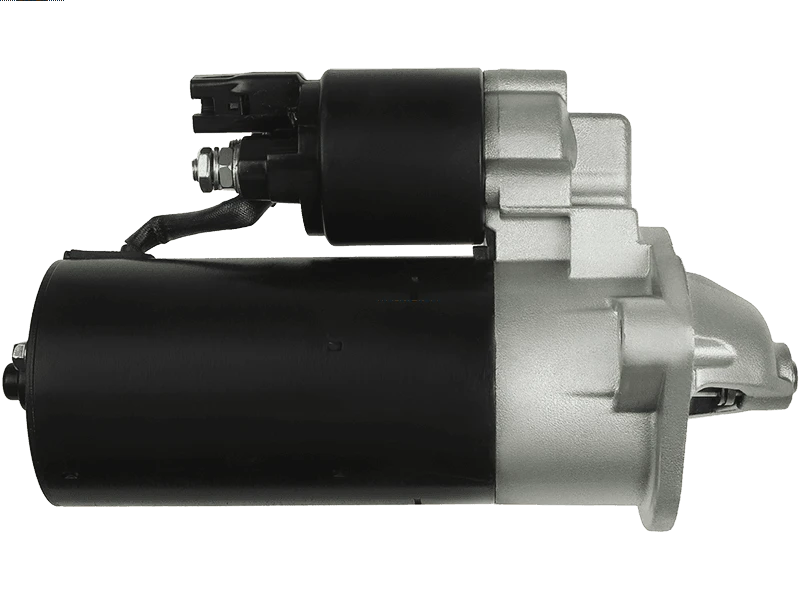

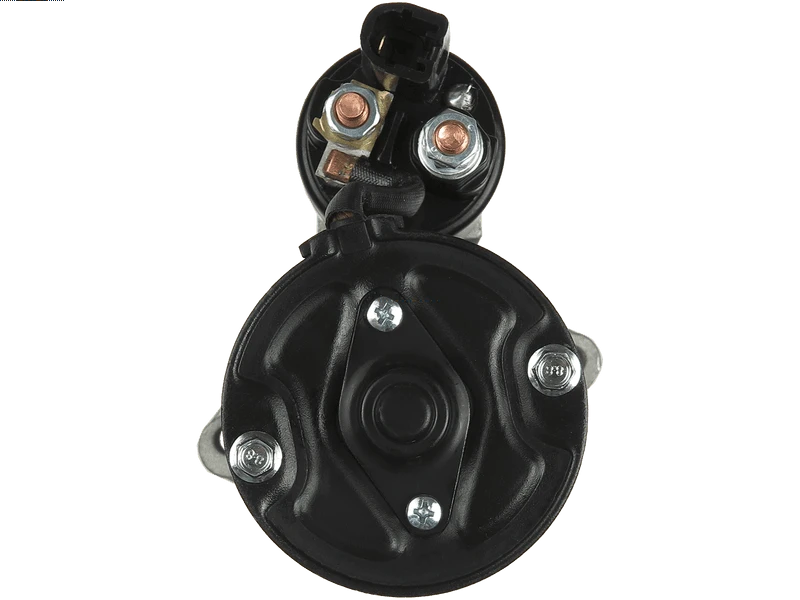

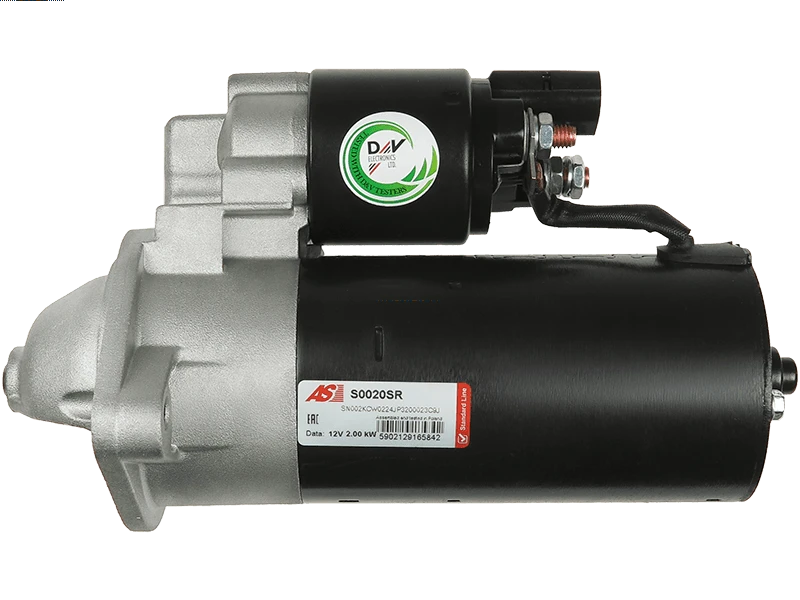

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 231.51 including GST
NZ$ 201.31 excluding GST
or four payments of $57.88
with
Learn More
each
S0020SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 251 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 4 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Avensis 2.0 D | [1CD-FTV] | 09.2002-02.2003 |
| TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 09.2002-02.2003 |
| TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 10.1999-02.2003 |
| TOYOTA | Avensis 2.0 TD | [2C-TE] | 09.1997-02.2003 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2002-02.2007 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2002-12.2006 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 04.2004-02.2007 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 06.2004-07.2007 |
Reference Information
| 0001110132 | BOSCH |
| 0986018680 | BOSCH |
| 1019852 | FORD |
| 1057811 | FORD |
| 112006 | CARGO |
| 11941 | EAI |
| 190.533.092.010 | PSH |
| 190.533.092.215 | PSH |
| 201067 | VALEO |
| 20401311BN | REAL |
| 20401311OE | REAL |
| 20401311RC | REAL |
| 25-2477 | ELSTOCK |
| 2810001020 | TOYOTA |
| 2810008010 | TOYOTA |
| 281000B010 | TOYOTA |
| 28100-0B010 | TOYOTA |
| 28100-0B010A | TOYOTA |
| 281000B020 | TOYOTA |
| 28100-0B020 | TOYOTA |
| 28100-0G010 | TOYOTA |
| 28100-0G020 | TOYOTA |
| 28100-0G021 | TOYOTA |
| 28100OG020 | TOYOTA |
| 31183N | WAI / TRANSPO |
| 428000-0720 | DENSO |
| 428000-4350 | DENSO |
| 458514 | VALEO |
| 5010077 | MEAT & DORIA |
| 6010113.0 | SANDO |
| 6010113.1 | SANDO |
| 6010113.2 | SANDO |
| 7275964 | FORD |
| 8EA011610-631 | HELLA |
| 8EA737543-001 | HELLA |
| 9521 | CEVAM |
| AES1282 | AUTOELECTRO |
| ANM10900X | ANDEL |
| ASM1363 | APEC |
| BOS0001110132 | WOODAUTO |
| CST10113AS | CASCO |
| CST10113GS | CASCO |
| CST10113RS | CASCO |
| DRS7500 | DELCO |
| DRS8680 | DELCO |
| DRS8680X | DELCO |
| DS6460 | DELCO |
| DS8610 | DELCO |
| F032112006 | CARGO |
| J5212117 | HERTH+BUSS |
| JS1135 | HC PARTS |
| LRS02099 | LUCAS |
| LRS2099 | LUCAS |
| MAV121130A | SIOM |
| MAV121130R | SIOM |
| MAV423020 | SIOM |
| MAV423020A | SIOM |
| NPANSM1363 | NAPA |
| PRSL054 | 3EFFE |
| PRSL054B | 3EFFE |
| RAS39791 | DELCO |
| S1049B | PRESTOLITE |
| STB1135 | KRAUF |
| STM761 | ROLLCO |
| STR1514 | ELECTROLOG |
| STR50267 | WOODAUTO |
| STRL054 | 3EFFE |
| STRL054B | 3EFFE |
| STRL054NE | 3EFFE |
| STRL054U | 3EFFE |
| STX200027 | STARDAX |
| STX200027R | STARDAX |
| STX200089 | STARDAX |
| STX200089R | STARDAX |
