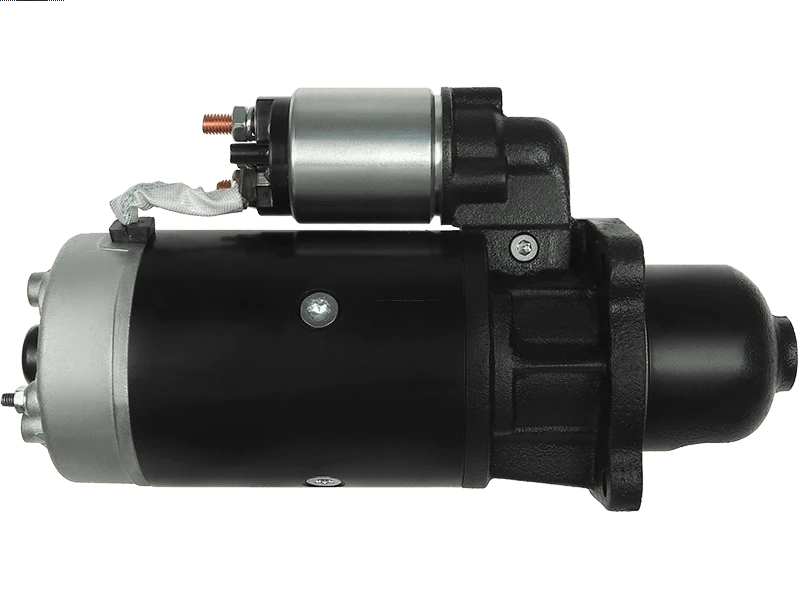

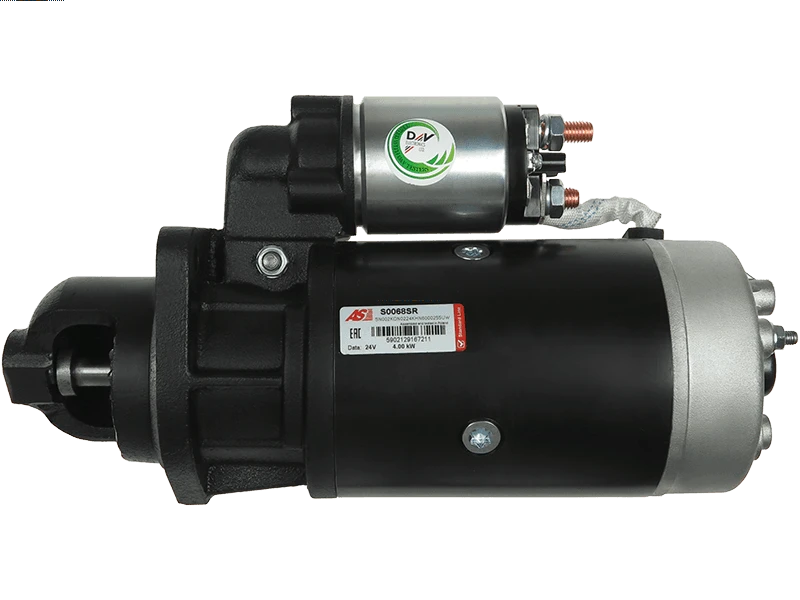

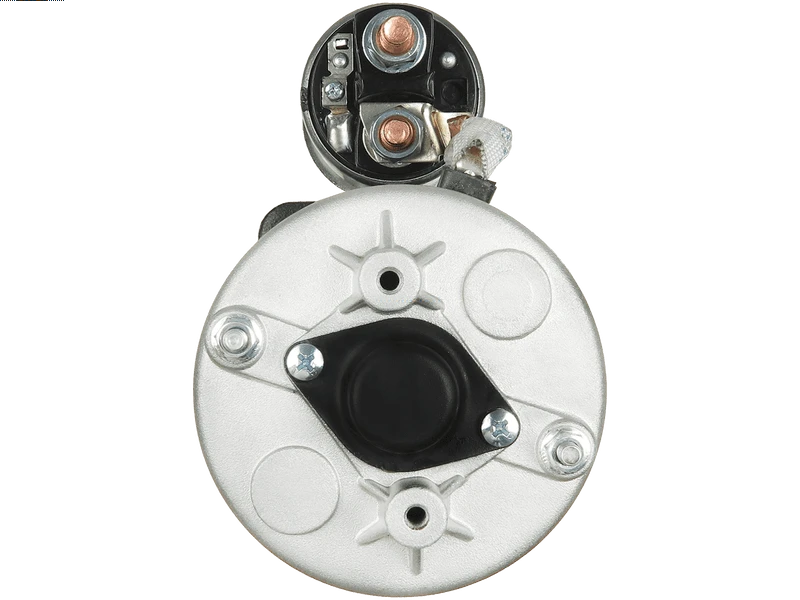

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 444.58 including GST
NZ$ 386.59 excluding GST
or four payments of $111.15
with
Learn More
each
S0068SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 341 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 28 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | MK 110-13 6.1 | [BF6L913T][F6L913] | 04.1985-02.1986 |
| IVECO | MK 110-16 6.1 | [BF6L913T][F6L913] | 03.1986-12.1991 |
| IVECO | MK 130-13 6.1 | [BF6L913T][F6L913] | 03.1986-05.1989 |
| IVECO | MK 130-16 6.1 | [BF6L913] | 03.1986-12.1991 |
| IVECO | MK 75-9 4.1 | [BF4L913T] | 11.1985-05.1989 |
| IVECO | MK 80-13 6.1 | [BF6L913T][F6L913] | 03.1986-12.1989 |
| IVECO | MK 80-16 6.1 | [BF6L913] | 03.1986-12.1989 |
| IVECO | MK 90-13 6.1 | [BF6L913T] | 03.1986-12.1991 |
| IVECO | P/PA 120-13 6.2 | [BF6L913T] | 08.1983-09.1990 |
| IVECO | P/PA 120-13 6.2 | [F6L913] | 01.1983-02.1986 |
Reference Information
| 0001115490 | SNVI |
| 0001231028 | BOSCH |
| 0001360003 | BOSCH |
| 0001360012 | BOSCH |
| 0001360035 | BOSCH |
| 0001368001 | BOSCH |
| 01170053 | KHD |
| 01173820 | KHD |
| 01180804 | KHD |
| 01182235 | KHD |
| 01302023 | KHD |
| 05710903 | BOMAG |
| 10460 | EFEL |
| 10530 | KUHNER |
| 110523 | CARGO |
| 11.130.491 | ISKRA / LETRIKA |
| 11580 | ERA |
| 1161422 | KHD |
| 1164995 | KHD |
| 1170053 | KHD |
| 1172099 | KHD |
| 1173241 | KHD |
| 1173560 | KHD |
| 1173820 | KHD |
| 1180804 | KHD |
| 1180999 | KHD |
| 1182235 | KHD |
| 1183243 | KHD |
| 1302023 | KHD |
| 1516768R | DAF |
| 1701065 | FAUN |
| 17073N | WAI / TRANSPO |
| 20401116BN | REAL |
| 20401116EL | REAL |
| 22222006 | VOLVO |
| 260-67200 | DIXIE |
| 3046537 | KHD |
| 330682 | LOGISTIK |
| 42368001 | HERTH+BUSS |
| 42488477 | KHD |
| 42498135 | IVECO |
| 42522641 | IVECO |
| 42522653 | IVECO |
| 42522942 | FIAT |
| 45-0219 | ELSTOCK |
| 511.001.093.010 | PSH |
| 511.001.093.016 | PSH |
| 511.001.093.311 | PSH |
| 6010611.0 | SANDO |
| 6010611.3 | SANDO |
| 6107017 | LIEBHERR |
| 6200662 | LIEBHERR |
| 6209190 | VOLVO |
| 72736014 | MAHLE |
| 744648 | O&K |
| 8660 | CEVAM |
| 881669 | VOLVO |
| 88212370 | POWERMAX |
| 8EA012586-441 | HELLA |
| ANM13490 | ANDEL |
| AZJ3132 | ISKRA / LETRIKA |
| B17R24X4 | KHD |
| B29R24X4H7622 | KHD |
| B7R24X4H7622 | KHD |
| CS530 | HC PARTS |
| CST10611AS | CASCO |
| CST10611ES | CASCO |
| E0041565 | POCLAIN |
| E41565EX | CASE |
| F032110523 | CARGO |
| IS0491 | ISKRA / LETRIKA |
| LRS00923 | LUCAS |
| LRS923 | LUCAS |
| MS386 | MAHLE |
| PRSF231 | 3EFFE |
| SG0056 | GHIBAUDI |
| STB0530 | KRAUF |
| STM1014 | ROLLCO |
| STR1070 | ELECTROLOG |
| STR7828 | ELECTROLOG |
| STR7901 | ELECTROLOG |
| STR79045 | ELECTROLOG |
| STR7934 | ELECTROLOG |
| TS-6018 | DIXIE |
