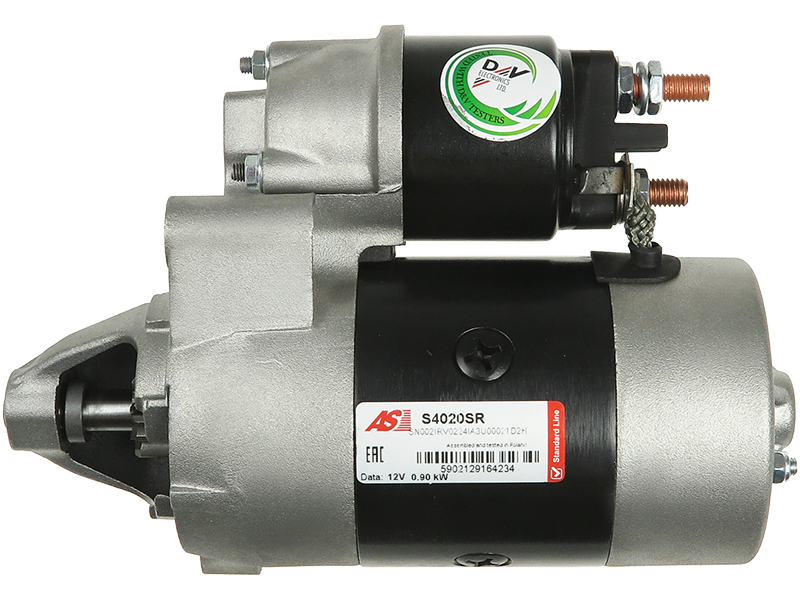

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 234.90 including GST
NZ$ 204.26 excluding GST
or four payments of $58.73
with
Learn More
each
S4020SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Kilowatt | 0.90 kW |
| Length (L.1) | 208 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 72 mm |
| Mount Hole Center - Center (O.3) | 72 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 8. 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 11 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 64 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumpy 1.6 | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 | [220A2.000] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [1580SPI] | 10.1995- |
| CITROEN | Jumpy 1.6 i | [220A2.000] | 10.1995- |
| FIAT | Brava 1.6 16V EL | [182A6.000] | 10.1995-10.2001 |
| FIAT | Brava 1.6 16V SX | [182A4.000] | 02.1996-10.1998 |
| FIAT | Bravo 1.6 | [182A6.000] | 10.1995-10.2001 |
| FIAT | Bravo 1.6 SX | [182A4.000] | 03.1996-11.1998 |
| FIAT | Fiorino 1.6 | [146C6.000] | 12.1996-05.2001 |
| FIAT | Fiorino 1.6 | [146D6.000] | 12.1996-12.2001 |
| FIAT | Marea 1.6 16 V Bipower | [185A3.000] | 03.1999-10.1999 |
| FIAT | Marea 1.6 16 V Bipower | [186A4.000] | 04.1999-03.2002 |
| FIAT | Marea 1.6 i 16V | [182A4.000] | 09.1996- |
| FIAT | Palio 1.4 | [178B2.000] | 04.1996-05.1999 |
| FIAT | Palio 1.4 | [178B2.016] | 04.1996-05.1999 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-09.2001 |
| FIAT | Punto 1.4 Turbo GT | [176A4.000] | 03.1995- |
| FIAT | Punto 1.4 Turbo GT | [176B6.000] | 09.1996- |
| FIAT | Scudo 1.6 | [220A2.000] | 02.1996- |
| FIAT | Siena 1.4 | [178B2.000] | 04.1996- |
| FIAT | Siena 1.4 | [178B2.016] | 04.1996- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998- |
| FIAT | Tempra 1.6 i.e. | [159B9.000] | 05.1994-12.1996 |
| FIAT | Tipo 1.6 i.e. | [149C2.046] | 02.1988-06.1990 |
| LANCIA | Dedra 1.6 | [159B9.000] | 10.1994-07.1999 |
| LANCIA | Dedra 1.6 i.e. | [835C1.000] | 04.1995-07.1999 |
| LANCIA | Dedra 1.6 LE | [159B9.000] | 07.1994-04.1998 |
| LANCIA | Delta 1.4 i.e. | [836A4.000] | 04.1995-12.1999 |
| LANCIA | Delta 1.6 i.e. | [835C1.000] | 04.1995-12.1999 |
| LANCIA | Delta 1.6 i.e. LE | [182A6.000] | 03.1996-08.1999 |
| LANCIA | Y10 1.0 Turbo | [156A1.000] | 03.1985-02.1989 |
Reference Information
| 0986010450 | BOSCH |
| 10285 | KUHNER |
| 10536 | KUHNER |
| 10975 | KUHNER |
| 112124 | CARGO |
| 11680 | EAI |
| 11895 | EAI |
| 20404611BN | REAL |
| 20404611OE | REAL |
| 20404611RC | REAL |
| 20404611RE | REAL |
| 220051 | ERA |
| 220166 | ERA |
| 22.0975 | LAUBER |
| 22.0975M | LAUBER |
| 25-2051 | ELSTOCK |
| 31146N | WAI / TRANSPO |
| 35258510 | PRESTOLITE |
| 35258890 | PRESTOLITE |
| 3826 | CEVAM |
| 42001234 | HERTH+BUSS |
| 4470377 | FIAT |
| 4470378 | FIAT |
| 455872 | VALEO |
| 46231535 | FIAT |
| 46231540 | FIAT |
| 46416879 | FIAT |
| 46417006 | FIAT |
| 46431502 | FIAT |
| 46475793 | FIAT |
| 46475794 | FIAT |
| 46774415 | FIAT |
| 500.008.093.050 | PSH |
| 500.008.093.058 | PSH |
| 500.008.093.265 | PSH |
| 50246648 | MAGNETI MARELLI |
| 5802M1 | PEUGEOT |
| 5802-M1 | PEUGEOT |
| 5968605 | FIAT |
| 6030116.0 | SANDO |
| 6030116.1 | SANDO |
| 6030116.2 | SANDO |
| 6030116.4 | SANDO |
| 63103002 | MAGNETI MARELLI |
| 63103007 | MAGNETI MARELLI |
| 63103022 | MAGNETI MARELLI |
| 63223031 | MAGNETI MARELLI |
| 63223085 | MAGNETI MARELLI |
| 63223101 | MAGNETI MARELLI |
| 63223303 | MAGNETI MARELLI |
| 66925112 | PRESTOLITE |
| 71721304 | INNOCENTI |
| 71721304 | FIAT |
| 71721310 | FIAT |
| 7566528 | FIAT |
| 7589547 | FIAT |
| 7589655 | FIAT |
| 7642573 | FIAT |
| 7666528 | FIAT |
| 7680615 | FIAT |
| 7733966 | IVECO |
| 7733966 | FIAT |
| 77398430 | FIAT |
| 7772462 | FIAT |
| 7773812 | FIAT |
| 8080043 | FRIESEN |
| 88213154 | POWERMAX |
| 8EA737148-001 | HELLA |
| AES1247 | AUTOELECTRO |
| ALT136240 | SIOM |
| ANM15324X | ANDEL |
| C132 | DENSO |
| CS883 | HC PARTS |
| CS975 | HC PARTS |
| CST30116AS | CASCO |
| CST30116GS | CASCO |
| CST30116OS | CASCO |
| CST30116RS | CASCO |
| DRS3104 | DELCO |
| DRS3697 | DELCO |
| DSN577 | DENSO |
| E80E1012 | MAGNETI MARELLI |
| E80E-1.0/12 | MAGNETI MARELLI |
| EL25112 | PRESTOLITE |
| F032112124 | CARGO |
| LRT00147 | LUCAS |
| LRT147 | LUCAS |
| MAV2200 | SIOM |
| MAV2200A | SIOM |
| MAV2410 | SIOM |
| MAV321210 | SIOM |
| PRSF327 | 3EFFE |
| PRSL077 | 3EFFE |
| RNL975CS | RNL |
| S12MA0659A2 | SIDAT |
| SS437 | SOVEREIGN |
| SS512 | SOVEREIGN |
| STA0050R | BOVEZ |
| STA0120R | BOVEZ |
| STR52003 | WOODAUTO |
| STR9085 | ELECTROLOG |
| STRF327 | 3EFFE |
| STRL077 | 3EFFE |
| STRL707 | 3EFFE |
| STX200162 | STARDAX |
| STX200162R | STARDAX |
| STX200343 | STARDAX |
| STX200343R | STARDAX |
| STX200689 | STARDAX |
| STX200887 | STARDAX |
| STX200887R | STARDAX |
