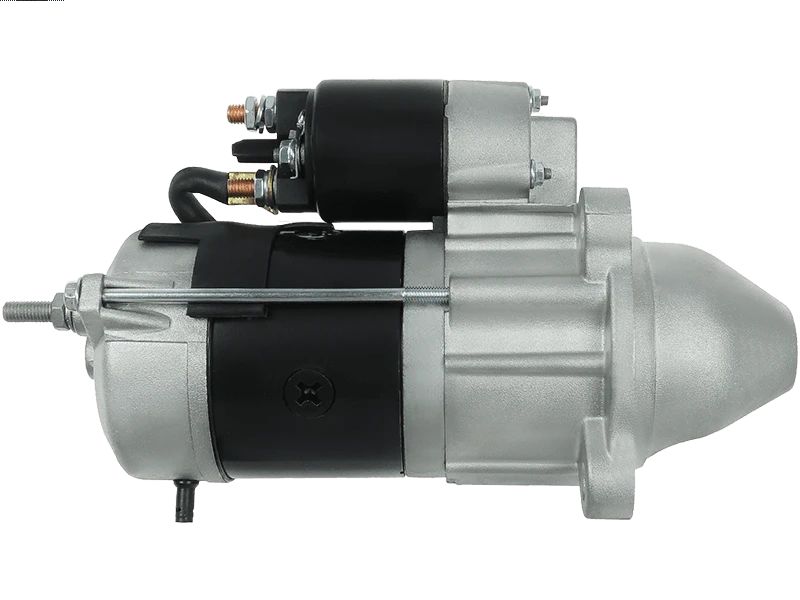

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 399.31 including GST
NZ$ 347.23 excluding GST
or four payments of $99.83
with
Learn More
each
S4030SR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 292 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30.50 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JCB | 526S 4.4 | [1104C-44R] | 01.1997- |
| KIOTI | DK65 2.7 | [903.27T] | 01.2002-01.2007 |
| KIOTI | DK65C 2.7 | [903.27T] | 01.2002-01.2007 |
| KIOTI | DK90 4.4 | [1104D-44T] | 01.2007- |
| PERKINS | 1103D-33 | 01.2004- |
Reference Information
| 063280041010 | MAGNETI MARELLI |
| 074000-0000 | DENSO |
| 11.131.781 | ISKRA / LETRIKA |
| 113655 | CARGO |
| 18940N | WAI / TRANSPO |
| 190-80101 | ROBERT'S |
| 20404071BN | REAL |
| 20404071IT | REAL |
| 20404071OE | REAL |
| 20419801BN | REAL |
| 20419801OE | REAL |
| 220702 | ERA |
| 25-4097 | ELSTOCK |
| 254193 | KUHNER |
| 254193K | KUHNER |
| 254193L | KUHNER |
| 254193M | KUHNER |
| 26.0005 | CQ |
| 26.0005M | CQ |
| 2872K405 | PERKINS |
| 2873K405 | PERKINS |
| 2873K624 | PERKINS |
| 2873K625 | PERKINS |
| 2873K626 | PERKINS |
| 2873K634 | PERKINS |
| 35263300 | PRESTOLITE |
| 3786310M1 | MASSEY FERGUSON |
| 4227054M91 | AGCO |
| 428000-1290 | DENSO |
| 6021108.0 | SANDO |
| 6021108.1 | SANDO |
| 6030170.0 | SANDO |
| 6030170.1 | SANDO |
| 6030170.5 | SANDO |
| 63280041 | MAGNETI MARELLI |
| 700.504.103.050 | PSH |
| 700.504.103.090 | PSH |
| 700.504.103.098 | PSH |
| 700.504.103.208 | PSH |
| 700.504.103.265 | PSH |
| 700.504.103.311 | PSH |
| 71440231 | JCB |
| 714/40231 | JCB |
| 71440531 | JCB |
| 71440536 | JCB |
| 7169477 | BOBCAT |
| 72736027 | MAHLE |
| 860715 | PRESTOLITE |
| 8719R | CEVAM |
| 88213712 | POWERMAX |
| 91-19-2515 | WILSON |
| 944288183200 | MAGNETI MARELLI |
| AEX1050 | AUTOELECTRO |
| AZE4173 | ISKRA / LETRIKA |
| CGB-93405 | AINDE |
| CST21108AS | CASCO |
| CST21108GS | CASCO |
| CST30170AS | CASCO |
| CST30170GS | CASCO |
| CST30170IS | CASCO |
| E7100-63012 | KIOTI |
| E730163011 | KUBOTA |
| F032113655 | CARGO |
| IS1201 | ISKRA / LETRIKA |
| LRS02425 | LUCAS |
| LRS2425 | LUCAS |
| M1T84181 | MITSUBISHI |
| MAV231080 | SIOM |
| MAV321700 | SIOM |
| MRS18320 | MAGNETI MARELLI |
| MS399 | MAHLE |
| MSN8041 | MAGNETI MARELLI |
| PRSS023 | 3EFFE |
| RNL2873K405 | RNL |
| SG0133 | GHIBAUDI |
| STE3655 | KRAUF |
| STR52055 | WOODAUTO |
| STR70057 | WOODAUTO |
| STR9009 | ELECTROLOG |
| STRS023 | 3EFFE |
| STX201271 | STARDAX |
| STX210177 | STARDAX |
| STX210177R | STARDAX |
