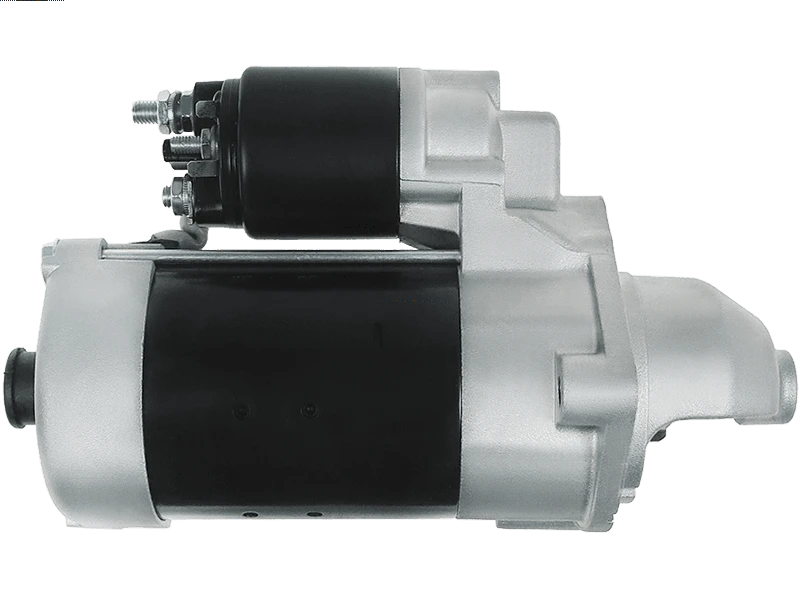

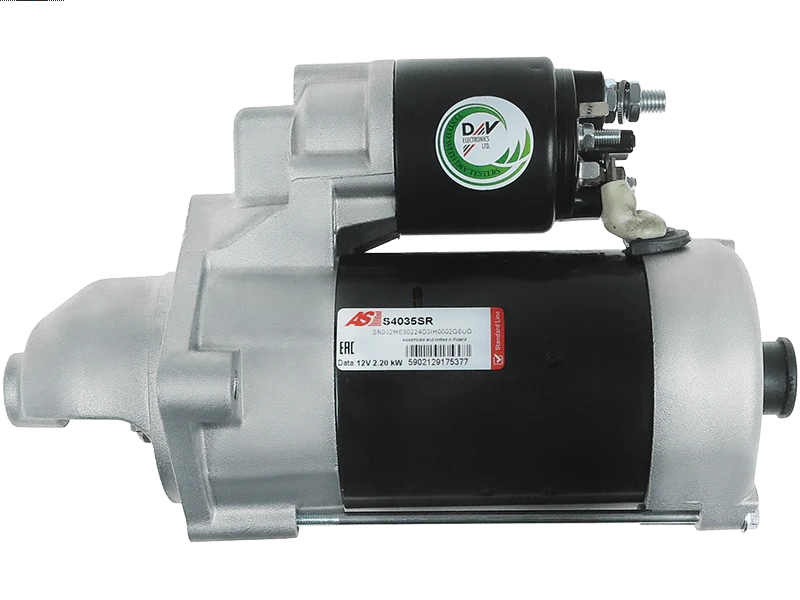

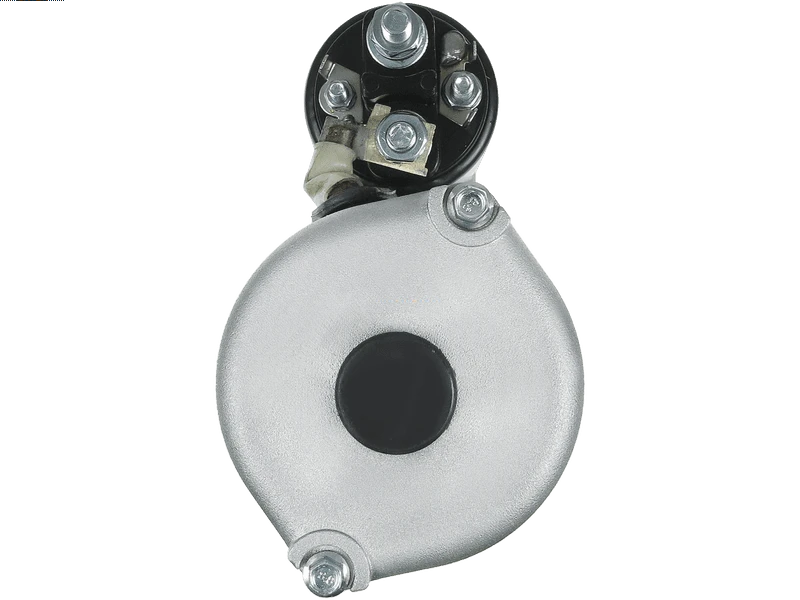

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 385.87 including GST
NZ$ 335.54 excluding GST
or four payments of $96.47
with
Learn More
each
S4035SR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 256 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | MAGNETI MARELLI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 330 d 3.0 | (E46)[M57D30(306D1)] | 10.1999-02.2005 |
| BMW | 330 d 3.0 Touring | (E46)[M57D30(306D1)] | 10.1999-02.2005 |
| BMW | 330 xd 3.0 | (E46)[M57D30(306D1)] | 01.2000-02.2003 |
| BMW | 330 xd 3.0 Touring | (E46)[M57D30(306D1)] | 01.2000-03.2003 |
| BMW | 530 d 3.0 | (E39)[M57D30(306D1)] | 08.1998-09.2000 |
| BMW | 530 d 3.0 | (E39)[M57D30(306D1)] | 09.1998-06.2003 |
| BMW | 530 d 3.0 Touring | (E39)[M57D30(306D1)] | 08.1998-09.2000 |
| BMW | 530 d 3.0 Touring | (E39)[M57D30(306D1)] | 09.2000-05.2004 |
| BMW | 730 d 3.0 | (E38)[M57D30(306D1)] | 04.2000-11.2001 |
| BMW | 730 d 3.0 | (E38)[M57D30(306D1)] | 08.1998-04.2000 |
| BMW | X5 3.0 D | (E53)[M57D30(306D1)] | 04.2001-09.2003 |
| LAND ROVER | Range Rover 3.0 D 4x4 | [306D1] | 03.2002-08.2012 |
Reference Information
| 0986022710 | BOSCH |
| 101171 | KUHNER |
| 113446 | CARGO |
| 11848 | EAI |
| 1202141 | OPEL |
| 1202168 | OPEL |
| 12411466345 | BMW |
| 12412179676 | BMW |
| 12412246570 | BMW |
| 12412246571 | BMW |
| 12412246574 | BMW |
| 12412247391 | BMW |
| 12412247492 | BMW |
| 12412288166 | BMW |
| 12412344240 | BMW |
| 12412446570 | BMW |
| 12414371646 | BMW |
| 12417785691 | BMW |
| 12417785715 | BMW |
| 12417787925 | BMW |
| 12419069808 | BMW |
| 12422242231 | BMW |
| 20404361BN | REAL |
| 20404361OE | REAL |
| 20404361RC | REAL |
| 20404411OE | REAL |
| 20513030 | PRESTOLITE |
| 210.521.093.010 | PSH |
| 210.521.093.058 | PSH |
| 210.521.093.265 | PSH |
| 210.521.093.605 | PSH |
| 220607 | ERA |
| 2246570 | BMW |
| 2246571 | BMW |
| 224739 | BMW |
| 2247391 | BMW |
| 2344240 | BMW |
| 24454172 | OPEL |
| 25-2417 | ELSTOCK |
| 3182 | CEVAM |
| 32475R | WAI / TRANSPO |
| 331136 | LOGISTIK |
| 42632920 | HERTH+BUSS |
| 458386 | VALEO |
| 458496 | VALEO |
| 6030114.1 | SANDO |
| 6030163.0 | SANDO |
| 6030163.1 | SANDO |
| 6030163.2 | SANDO |
| 6202017 | OPEL |
| 6202054 | OPEL |
| 63114017 | MAGNETI MARELLI |
| 63222005 | MAGNETI MARELLI |
| 726157 | VALEO |
| 7785691 | BMW |
| 7785715 | BMW |
| 7787925 | MINI |
| 7787925 | BMW |
| 88212650 | POWERMAX |
| 8EA011611-151 | HELLA |
| 8EA737706-001 | HELLA |
| 90465731 | OPEL |
| 90542412 | OPEL |
| 9069808 | BMW |
| 93171945 | OPEL |
| 93175889 | OPEL |
| 93175907 | OPEL |
| 944280800610 | MAGNETI MARELLI |
| 9512771 | OPEL |
| AEU1171 | AUTOELECTRO |
| ANM15904X | ANDEL |
| ASM1607 | APEC |
| CGB-52417 | AINDE |
| CS1171 | HC PARTS |
| CST30114GS | CASCO |
| CST30163AS | CASCO |
| CST30163GS | CASCO |
| CST30163RS | CASCO |
| DRS3684 | DELCO |
| DSN587 | DENSO |
| F032113446 | CARGO |
| LRS01475 | LUCAS |
| LRS1475 | LUCAS |
| MAV2400 | SIOM |
| NAD000090 | ROVER |
| NAD000090E | ROVER |
| NPANSM1607 | NAPA |
| PRSL106 | 3EFFE |
| R1040037 | OPEL |
| R1540015 | OPEL |
| RH-420025 | AINDE |
| S131.846 | PSH |
| STR52024 | WOODAUTO |
| STR9050 | ELECTROLOG |
| STRL106 | 3EFFE |
| STX200028 | STARDAX |
| STX200073 | STARDAX |
| STX200141 | STARDAX |
| STX200141R | STARDAX |
| STX200166 | STARDAX |
