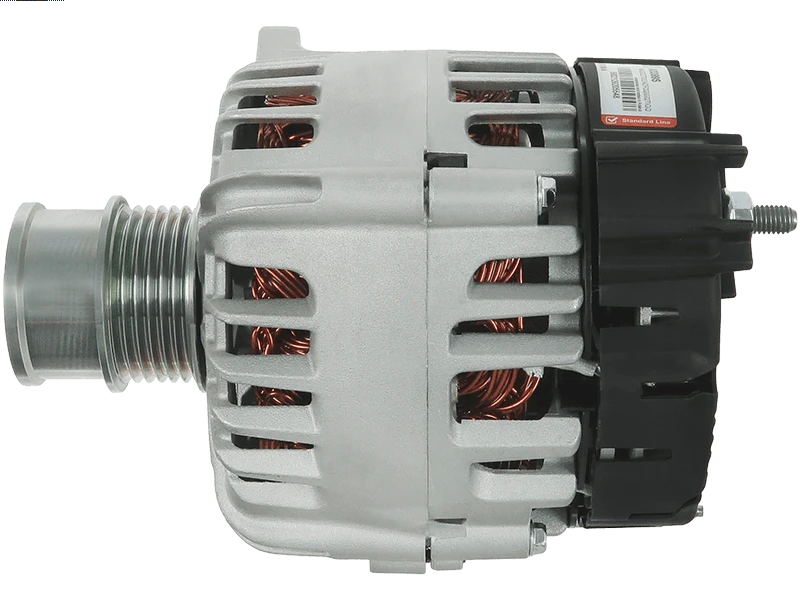

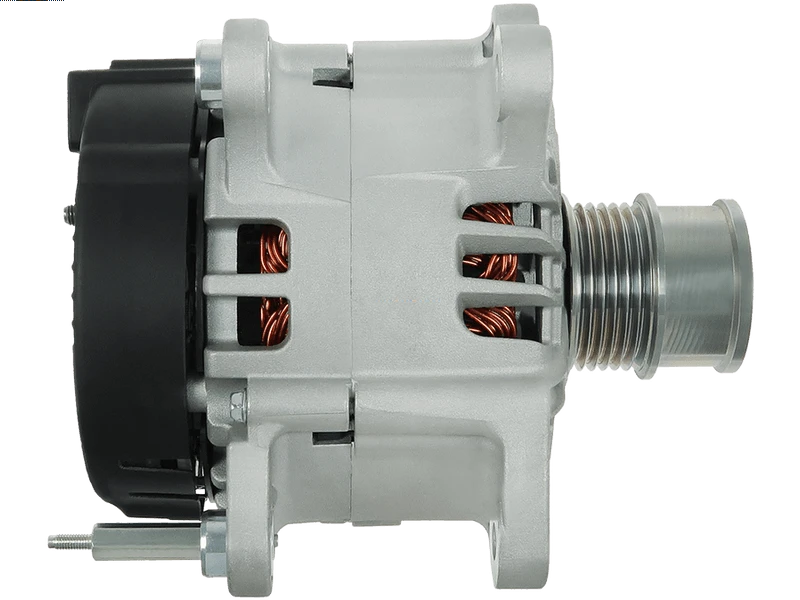

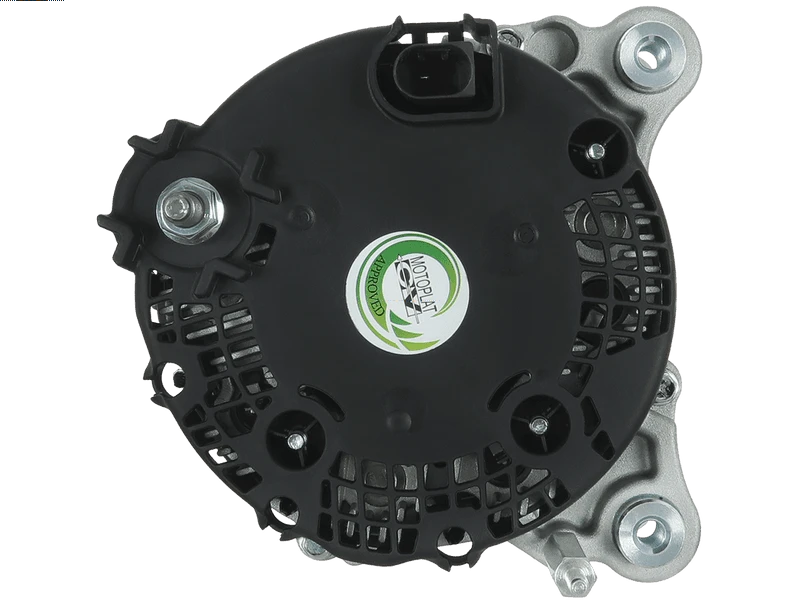

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 893.83 including GST
NZ$ 777.24 excluding GST
or four payments of $223.46
with
Learn More
each
A3399S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 215 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Golf 1.4 | 01.2019-12.2020 | |
| VW | Jetta 1.4 | 01.2019-12.2020 |
Reference Information
| 04E903024F | VW |
| 04E903024T | VW |
| 21595N | WAI / TRANSPO |
| 2712584 | VALEO |
| 28-7956 | ELSTOCK |
| 305.979.150.500 | PSH |
| 556515RIV | KUHNER |
| 88215102 | POWERMAX |
| 90-22-5759 | WILSON |
| CAL15A90GS | CASCO |
| EG15T025 | VALEO |
| LRA04347 | LUCAS |
| LRA4347 | LUCAS |
| UD101855A | AS-PL |
Video/Publications
