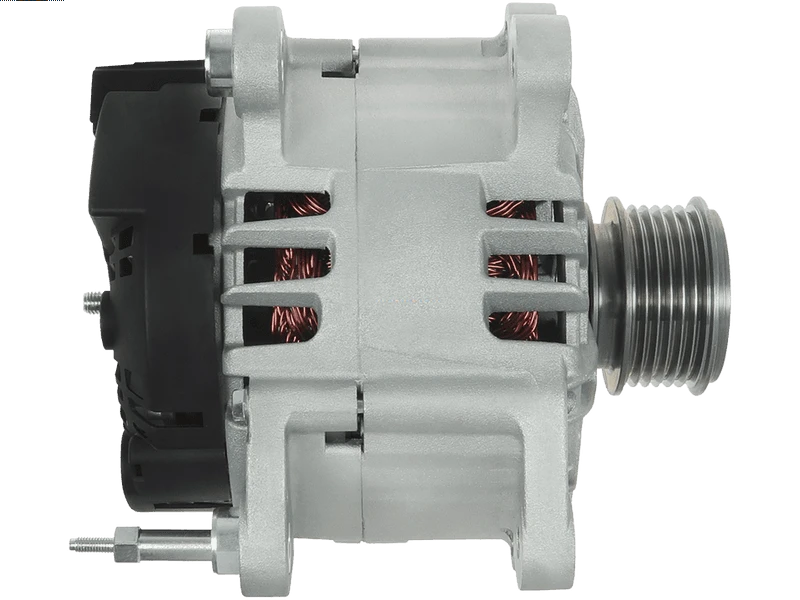

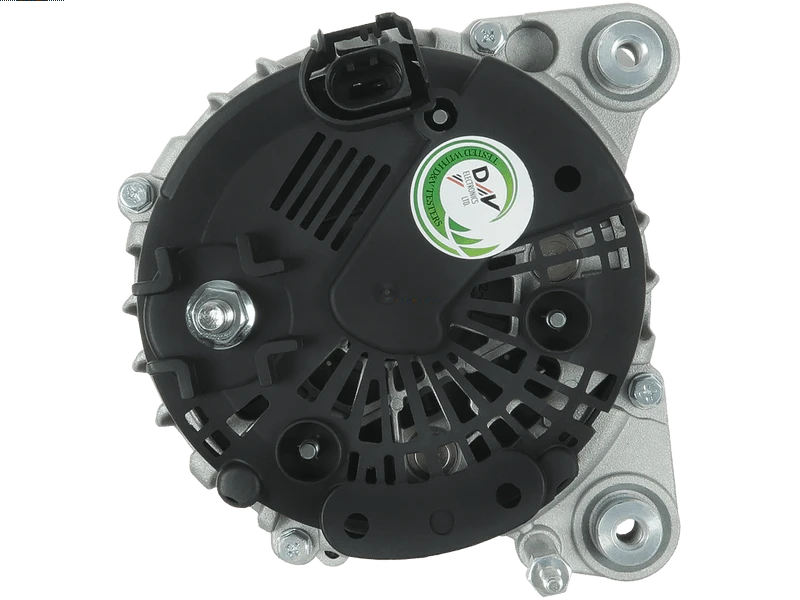

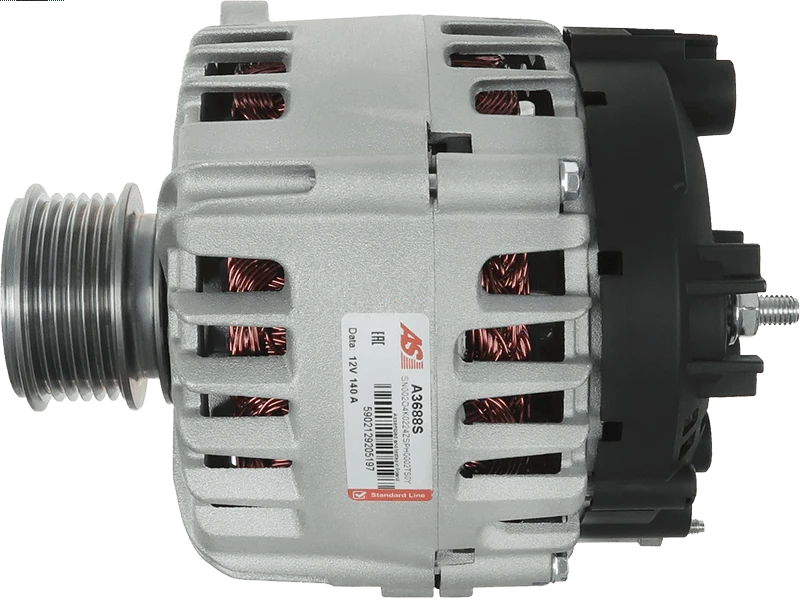

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 493.13 including GST
NZ$ 428.81 excluding GST
or four payments of $123.28
with
Learn More
each
A3688S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
TG14C057Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 2.0 TDi | [CFHD] | 09.2011-04.2015 |
| AUDI | A1 2.0 TDi Sportback | [CFHD] | 09.2011-04.2015 |
| AUDI | A1 2.0 TFSi Quattro | [CDLH] | 03.2012-11.2012 |
| VW | Caddy 1.6 | [CAYD] | 08.2010-05.2015 |
| VW | Caddy 1.6 | [CAYE] | 08.2010-05.2015 |
| VW | Caddy 1.6 TDi | [CAYD] | 08.2010-05.2015 |
| VW | Caddy 1.6 TDi | [CAYE] | 08.2010-05.2015 |
| VW | Caddy 2.0 | [CFHC] | 11.2010-05.2015 |
| VW | Caddy 2.0 | [CFHF] | 08.2010-05.2015 |
| VW | Caddy 2.0 | [CFJA] | 05.2012-05.2015 |
| VW | Caddy 2.0 | [CLCA] | 08.2010-05.2015 |
| VW | Caddy 2.0 | [CLCB] | 11.2010-05.2015 |
| VW | Caddy 2.0 TDi | [CFHE] | 11.2010-05.2015 |
| VW | Caddy 2.0 TDi | [CFJA] | 05.2012-05.2015 |
| VW | Caddy 2.0 TDi | [CLCA] | 08.2010-05.2015 |
| VW | Caddy 2.0 TDi 16V | [CFHC] | 11.2010-05.2015 |
| VW | Caddy 2.0 TDi 16V | [CLCB] | 11.2010-05.2015 |
| VW | Caddy 2.0 TDi 16V 4-Motion | [CFHC] | 11.2010-05.2015 |
| VW | Caddy 2.0 TDi 4-Motion | [CFHE] | 12.2010-05.2015 |
| VW | Caddy 2.0 TDi 4-Motion | [CFHF] | 08.2010-05.2015 |
| VW | Touran 1.6 TDi | [CAYC] | 05.2010-05.2015 |
| VW | Touran 2.0 TDi | [CFHC] | 05.2010-05.2015 |
| VW | Touran 2.0 TDi | [CFHF] | 11.2010-05.2015 |
| VW | Touran 2.0 TDi | [CFJA] | 05.2010-01.2013 |
| VW | Touran 2.0 TDi | [CLCA] | 11.2010-05.2015 |
Reference Information
| 03L903024 | VW |
| 03L903024X | VW |
| 04B903023DX | VW |
| 04B903024 | VW |
| 04B903024X | VW |
| 116036 | CARGO |
| 11703N | WAI / TRANSPO |
| 200232 | VALEO |
| 2015569.0 | SANDO |
| 2015569.1 | SANDO |
| 20179965BN | REAL |
| 20179965OE | REAL |
| 209288 | ERA |
| 2617854A | VALEO |
| 28-6774 | ELSTOCK |
| 305.915.140.000 | PSH |
| 305.915.140.004 | PSH |
| 305.915.140.340 | PSH |
| 3L903024 | VW |
| 3L903024M | VW |
| 3L903024MX | VW |
| 3L903024X | VW |
| 4187 | CEVAM |
| 439852 | VALEO |
| 440592 | VALEO |
| 441007 | LOGISTIK |
| 4B903023B | VW |
| 4B903023BX | VW |
| 5515366 | MEAT & DORIA |
| 553961RI | KUHNER |
| 553961RIB | KUHNER |
| 553961RIV | KUHNER |
| 89215742 | POWERMAX |
| 8EL011713-471 | HELLA |
| 90-22-5745 | WILSON |
| A132.413 | PSH |
| AAL1858 | APEC |
| AEK3634 | AUTOELECTRO |
| AI-90260 | AINDE |
| ALT2180CP | ROLLCO |
| ALTS623 | 3EFFE |
| ALV9025 | KRAUF |
| CAL15569AS | CASCO |
| CAL15569GS | CASCO |
| CGB-86774 | AINDE |
| F032116036 | CARGO |
| GA439852V-CX | GPARTS |
| GA439852V-R | GPARTS |
| LRA03634 | LUCAS |
| LRA3634 | LUCAS |
| NPANAL1858 | NAPA |
| SA439852V-R | GPARTS |
| STX100563 | STARDAX |
| STX102040 | STARDAX |
| TG14C057 | VALEO |
| UD101796A | AS-PL |
| VAL439852 | WOODAUTO |
| VALTG14C057 | WOODAUTO |
