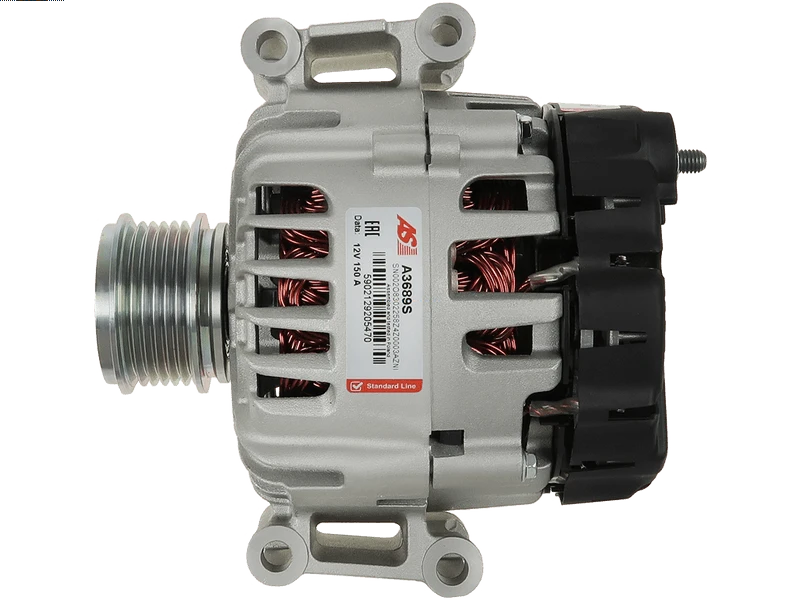

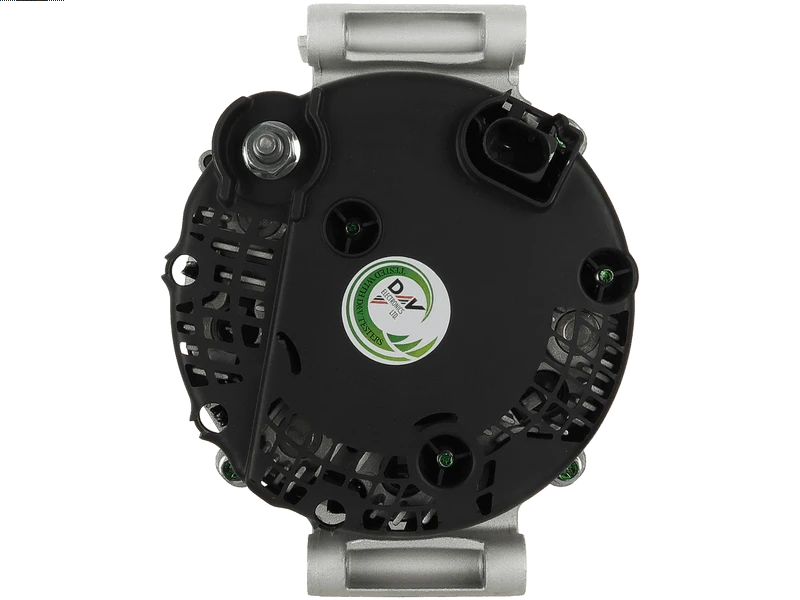

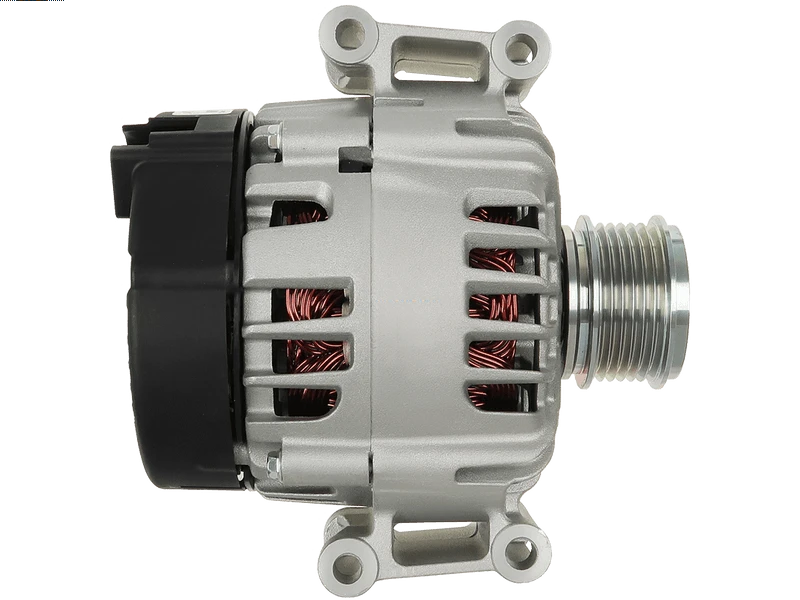

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 832.96 including GST
NZ$ 724.31 excluding GST
or four payments of $208.24
with
Learn More
each
A3689S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
EG15T026Specifications
| Amp | 150 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55.50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 2.0 Quattro | [CNTC] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXC] | 01.2014-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CJXD] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [CJXG] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJHA] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2017 |
| AUDI | S3 2.0 Quattro | [DJHB] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro | [DNUE] | 01.2014-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXC] | 01.2013-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXD] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [CJXG] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHA] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DJHB] | 01.2016-12.2020 |
| AUDI | S3 2.0 Quattro Sportback | [DNUE] | 01.2013-12.2020 |
| AUDI | TT 2.0 | [DKTB] | 01.2018- |
| AUDI | TT 2.0 | [DKZB] | 01.2018- |
| AUDI | TT 2.0 | [DNNB] | 01.2018- |
| AUDI | TT 2.0 | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro | [DNUF] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DNPA] | 01.2018- |
| AUDI | TT 2.0 Quattro Roadster | [DNUF] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DKTB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DKZB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DNNB] | 01.2018- |
| AUDI | TT 2.0 Roadster | [DNPA] | 01.2018- |
| AUDI | TTS 2.0 Quattro | [DNFD] | 01.2021-12.2021 |
| AUDI | TTS 2.0 Quattro Roadster | [DNFD] | 01.2020-12.2021 |
| VW | Golf VII 2.0 | [CHHB] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [CJXE] | 01.2016-12.2017 |
| VW | Golf VII 2.0 | [CJXG] | 01.2016-12.2017 |
| VW | Golf VII 2.0 | [CJXH] | 01.2018-12.2020 |
| VW | Golf VII 2.0 | [CNTC] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [CXDA] | 01.2013-12.2020 |
| VW | Golf VII 2.0 | [DKTB] | 01.2017-12.2020 |
| VW | Golf VII 2.0 | [DLBA] | 01.2017-12.2020 |
| VW | Golf VII 2.0 | [DNUC] | 01.2018-12.2020 |
| VW | Golf VII 2.0 4-Motion | [CJXC] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion | [CJXG] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion | [DJHA] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion | [DNUE] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [CJXC] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [CJXD] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [CJXG] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [DJHA] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [DJHB] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [DNUC] | 01.2016-12.2020 |
| VW | Golf VII 2.0 4-Motion Variant | [DNUE] | 01.2016-12.2020 |
| VW | Jetta 1.8 | [CPKA] | 01.2016-12.2017 |
| VW | Jetta 1.8 | [CPRA] | 01.2016-12.2017 |
Reference Information
| 0125716009 | BOSCH |
| 0125716010 | BOSCH |
| 06K903023B | VW |
| 06K903023D | VW |
| 06K903023DX | VW |
| 06K903023G | VW |
| 06K903023GX | VW |
| 2015A91.1 | SANDO |
| 2017919AOE | REAL |
| 205.580.150.505 | PSH |
| 2113981502 | DRI |
| 2113981502 | DRI |
| 2113981502 | DRI |
| 2113981502 | DRI |
| 28-8745 | ELSTOCK |
| 40921 | CEVAM |
| 556200RIV | KUHNER |
| 90-22-5768 | WILSON |
| AEG1533 | AUTOELECTRO |
| CAL15A91GS | CASCO |
| DRA1996 | DELCO |
| EG15T020 | VALEO |
| EG15T026 | VALEO |
| LRA04636 | LUCAS |
| LRA4636 | LUCAS |
| UD30066A | AS-PL |
| UNIT BOM 208-2078 | WAI / TRANSPO |
