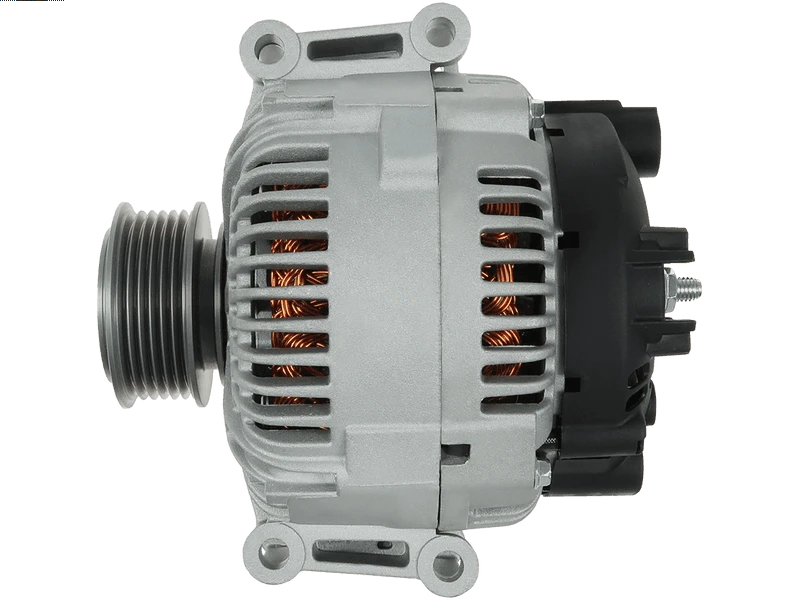

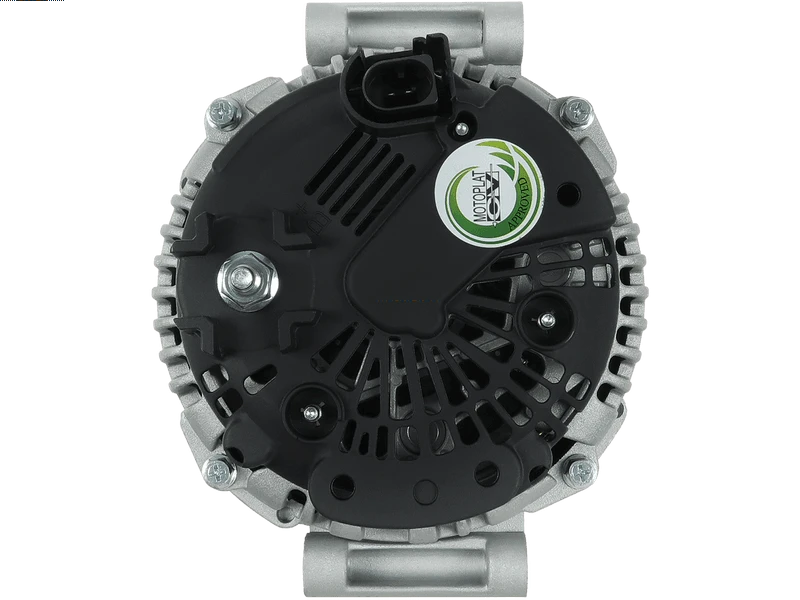

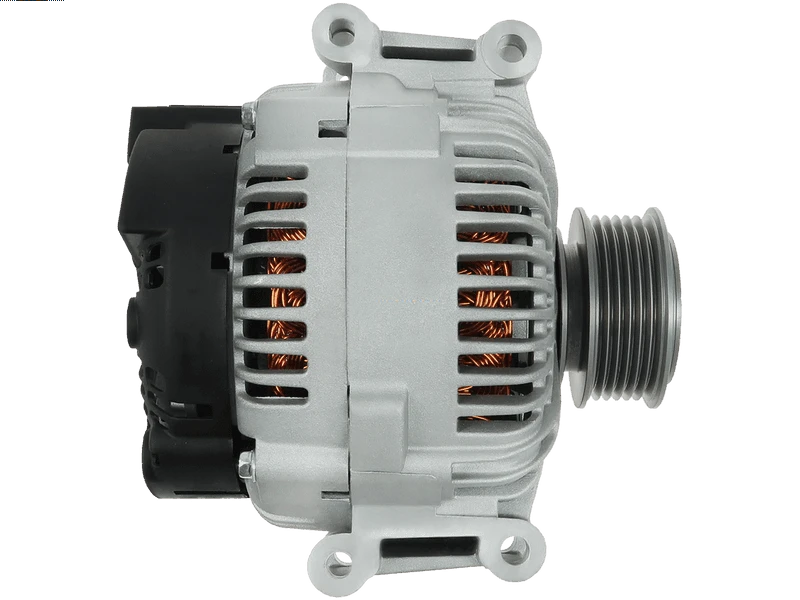

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 728.70 including GST
NZ$ 633.65 excluding GST
or four payments of $182.18
with
Learn More
each
A3690S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
TG16C011Specifications
| Amp | 150 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 9.50 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 64 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 3.2 FSi | [AUK] | 01.2005-06.2008 |
| AUDI | A4 3.2 FSi | [AUK] | 01.2006-03.2009 |
| AUDI | A4 3.2 FSi Quattro | [AUK] | 01.2005-06.2008 |
| AUDI | A4 3.2 FSi Quattro | [AUK] | 01.2006-03.2009 |
| AUDI | A4 3.2 FSi Quattro | [BKH] | 01.2005-06.2008 |
| AUDI | A4 3.2 FSi Quattro | [BKH] | 01.2006-03.2009 |
Reference Information
| 06E903016E | VW |
| 06E903016EX | VW |
| 0986CR6369 | BOSCH |
| 0986UR6369 | BOSCH |
| 11160N | WAI / TRANSPO |
| 11160R | WAI / TRANSPO |
| 114736 | CARGO |
| 2015385.1 | SANDO |
| 20179583OE | REAL |
| 205.529.150.000 | PSH |
| 205.529.150.500 | PSH |
| 2542894 | VALEO |
| 2542894B | VALEO |
| 28-5729 | ELSTOCK |
| 40589 | CEVAM |
| 437563 | VALEO |
| 439564 | VALEO |
| 442454 | LOGISTIK |
| 542894 | VALEO |
| 553123RI | KUHNER |
| 553123RIV | KUHNER |
| 6E903016E | VW |
| 6E903016EX | VW |
| 89214945 | POWERMAX |
| 986UR6369 | BOSCH |
| A131.488 | PSH |
| A146.718 | PSH |
| AEK3117 | AUTOELECTRO |
| AL9382X | BOSCH |
| ALT00572 | ELECTROLOG |
| ALT173850 | SIOM |
| ALTF743 | 3EFFE |
| ALV3565 | KRAUF |
| CAL15385GS | CASCO |
| DRA0159 | DELCO |
| F032114736 | CARGO |
| LRA03117 | LUCAS |
| LRA3117 | LUCAS |
| PRAF743 | 3EFFE |
| STX102020 | STARDAX |
| TG16C011 | VALEO |
| UD101637A | AS-PL |
| VAL439564 | WOODAUTO |
| VALTG16C011 | WOODAUTO |
| WOOALT14202 | WOODAUTO |
