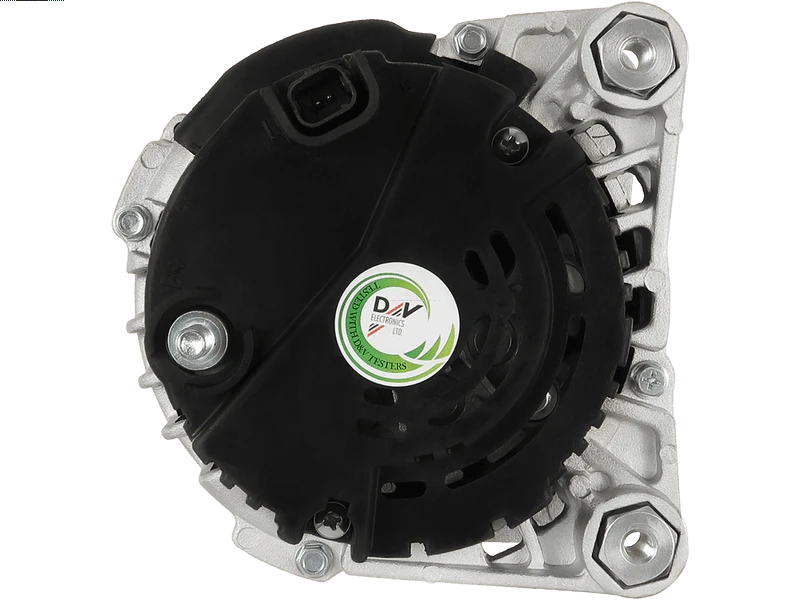

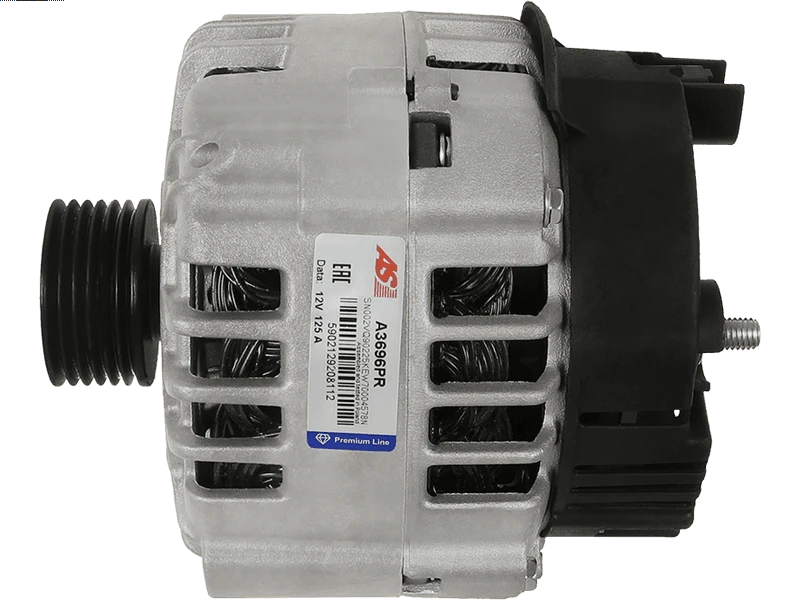

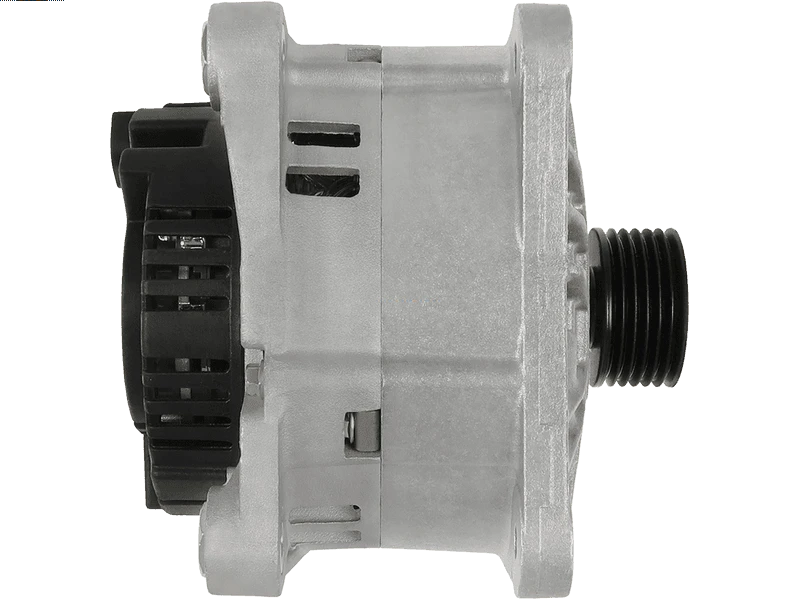

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 369.09 including GST
NZ$ 320.95 excluding GST
or four payments of $92.27
with
Learn More
each
A3696PR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 125 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.50 mm |
| OEM Product | No |
| Plug Code | PL_2401 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 48.50 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Interstar 2.2 dCi 90 | [G9T722] | 07.2002- |
| NISSAN | Interstar 2.2 dCi 90 | [G9T722] | 07.2002-08.2006 |
| NISSAN | Interstar 2.5 dCi 115 | [G9U720] | 04.2002- |
| NISSAN | Interstar 2.5 dCi 115 | [G9U724] | 04.2002- |
| NISSAN | Interstar 2.5 dCi 115 | [G9U750] | 04.2002- |
| NISSAN | Interstar 2.5 dCi 115 | [G9U754] | 04.2002- |
| NISSAN | Primastar 2.0 | [F4R720] | 03.2001-08.2006 |
| NISSAN | Primastar 2.0 | [F4R722] | 03.2001-08.2006 |
| NISSAN | Primastar 2.5 dCi 140 | [G9U730] | 07.2003- |
| OPEL | Vivaro 1.9 DTi | [F9Q760] | 02.2001-12.2010 |
| OPEL | Vivaro 2.0 | [F4R720] | 08.2001-07.2006 |
| OPEL | Vivaro 2.0 | [F4R820] | 08.2006-07.2014 |
| OPEL | Vivaro 2.5 DTi | [G9U730] | 04.2003-03.2010 |
| RENAULT | Espace 2.2 dCi | [G9T642] | 10.2000-10.2002 |
| RENAULT | Espace 2.2 dCi | [G9T710] | 07.2000-10.2002 |
| RENAULT | Espace 2.2 dCi | [G9T710] | 10.2000-10.2002 |
| RENAULT | Laguna 1.8 | [F4P770] | 03.2001-05.2005 |
| RENAULT | Laguna 1.9 dCi | [F9Q718] | 09.1999-03.2001 |
| RENAULT | Master 2.5 dCi 120 | [G9U720] | 10.2001- |
| RENAULT | Master 2.5 dCi 120 | [G9U724] | 10.2001- |
| RENAULT | Master 2.5 dCi 120 | [G9U750] | 10.2001- |
| RENAULT | Master 2.5 dCi 120 | [G9U754] | 10.2001- |
| RENAULT | Trafic 2.0 | [F4R720] | 03.2001- |
| RENAULT | Trafic 2.0 | [F4R720] | 03.2001-10.2006 |
| RENAULT | Trafic 2.0 | [F4R722] | 03.2001- |
| RENAULT | Trafic 2.0 | [F4R820] | 08.2006- |
Reference Information
| 011-003-000390R | REMANTE |
| 063731661010 | MAGNETI MARELLI |
| 10442841 | ALANKO |
| 113245 | CARGO |
| 12090058 | EUROTEC |
| 12160911 | MTR |
| 12160929 | MTR |
| 200103 | VALEO |
| 2015134.0 | SANDO |
| 2015134.1 | SANDO |
| 2015134.4 | SANDO |
| 20179431BN | REAL |
| 20179431OE | REAL |
| 20179431RE | REAL |
| 210390 | ERA |
| 210390A | ERA |
| 210390R | ERA |
| 2301791252 | DRI |
| 23059N | WAI / TRANSPO |
| 23100-00Q0K | NISSAN |
| 23100-00Q1G | NISSAN |
| 23100-00QAJ | NISSAN |
| 23100-00QAP | NISSAN |
| 23100-00QBF | NISSAN |
| 23100-00QOK | NISSAN |
| 2542393 | VALEO |
| 2542393A | VALEO |
| 2542393D | VALEO |
| 28-3988 | ELSTOCK |
| 28-3988CT | AINDE |
| 301661RI | KUHNER |
| 3122272 | HENKEL PARTS |
| 3122274 | HENKEL PARTS |
| 3122275 | HENKEL PARTS |
| 4-0276 | EXACT |
| 437423 | VALEO |
| 439464 | VALEO |
| 4411316 | OPEL |
| 4411318 | OPEL |
| 441808 | LOGISTIK |
| 4419077 | OPEL |
| 4430569 | OPEL |
| 4430595 | OPEL |
| 4433830 | OPEL |
| 4506176 | OPEL |
| 4693 | CEVAM |
| 5515181 | MEAT & DORIA |
| 56804 | EAI |
| 575.562.125.000 | PSH |
| 575.562.125.009 | PSH |
| 575.562.125.500 | PSH |
| 7700427476 | RENAULT |
| 7711134329 | RENAULT |
| 7711368833 | RENAULT |
| 802-13161 | IAP QUALITY PARTS |
| 804ST65 | STARDAX |
| 8200153713 | RENAULT |
| 8200206251 | RENAULT |
| 8200495304 | RENAULT |
| 8200538816 | RENAULT |
| 8200690202 | RENAULT |
| 8253860 | VOLVO |
| 89213893 | POWERMAX |
| 8EL011710-641 | HELLA |
| 9090169 | FRIESEN |
| 9201826 | OPEL |
| 9201826 | VAUXHALL |
| 93160665 | VAUXHALL |
| 93160666 | OPEL |
| 93160666 | VAUXHALL |
| 93161425 | VAUXHALL |
| 93161427 | VAUXHALL |
| 93161427 | OPEL |
| 93169266 | VAUXHALL |
| 93198178 | VAUXHALL |
| 93198178 | OPEL |
| 944390901690 | MAGNETI MARELLI |
| A12VA0292A2 | SIDAT |
| A-14131 | DTS |
| AEC1661 | AUTOELECTRO |
| AG0555 | GHIBAUDI |
| AI-90086 | AINDE |
| AL02116 | TMI |
| ALT10065 | WOODAUTO |
| ALT14131 | WOODAUTO |
| ALT848 | ROLLCO |
| ALT848NP | ROLLCO |
| AVA134 | AUTOTEAM |
| AVA134A | AUTOTEAM |
| AZMT-49-035-1718 | A.Z. MEISTERTEILE |
| CA1661IR | HC PARTS |
| CAL15134AS | CASCO |
| CAL15134GS | CASCO |
| CAL15134OS | CASCO |
| CAR-811386 | COMLINE |
| DRA4208 | DELCO |
| F032113245 | CARGO |
| GA439464-A | GPARTS |
| GA439464V-R | GPARTS |
| H5515181 | HOFFER |
| IR5926 | PROTECH |
| L68345 | ATL AUTOTECHNIK |
| LRA02059 | LUCAS |
| LRA2059 | LUCAS |
| MQA1661 | MAGNETI MARELLI |
| MRA90169 | MAGNETI MARELLI |
| QRA2993 | QUINTON HAZELL |
| R1530104 | VAUXHALL |
| RE73583N | THE NEW LINE |
| SA439464-A | GPARTS |
| SA439464V-R | GPARTS |
| SG12B030 | VALEO |
| STX100007 | STARDAX |
| STX100007R | STARDAX |
| STX100024 | STARDAX |
| STX100024R | STARDAX |
| TR8095 | SNRA |
| TT12333 | TESLA |
| TT12333PRO | TESLA |
| VAL439464 | WOODAUTO |
| VALSG12B097 | WOODAUTO |
| WG2011852 | WILMINK GROUP |
| WG2011853 | WILMINK GROUP |
| WG2196896 | WILMINK GROUP |
| WG2280794 | WILMINK GROUP |
