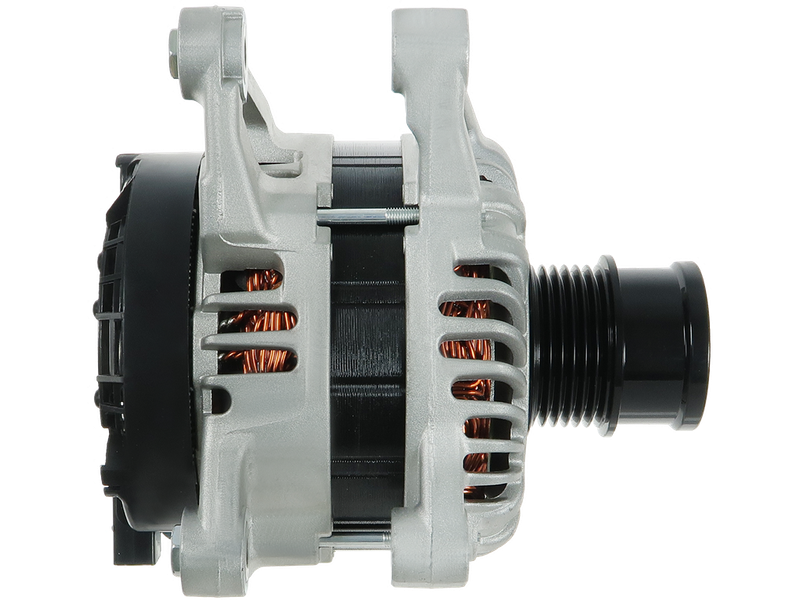

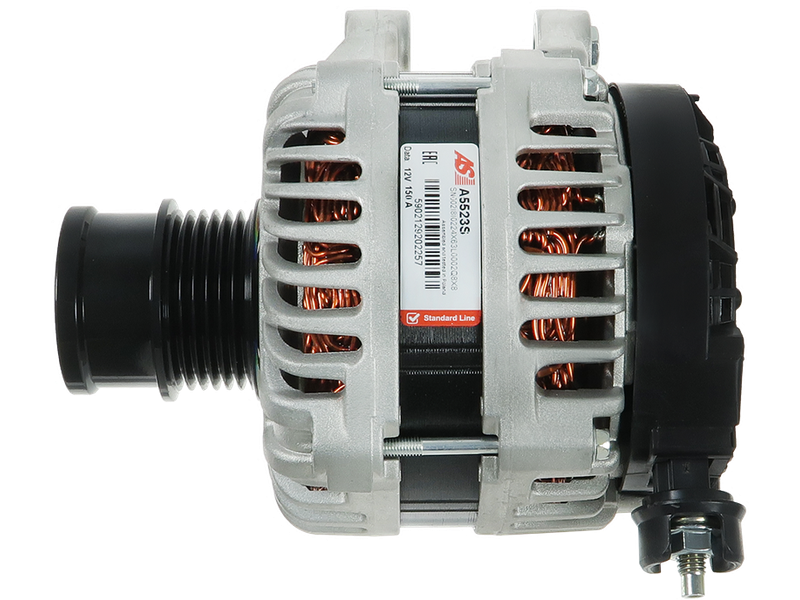

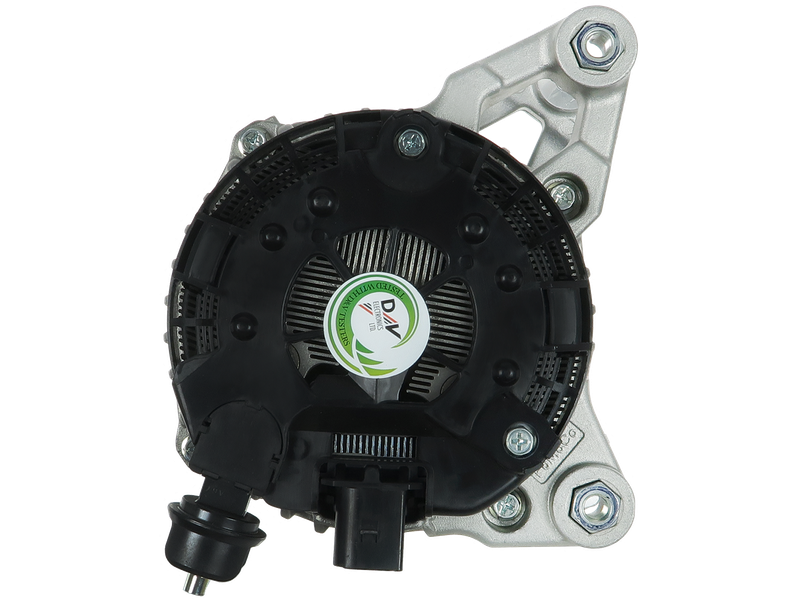

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 744.97 including GST
NZ$ 647.80 excluding GST
or four payments of $186.24
with
Learn More
each
A5523S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

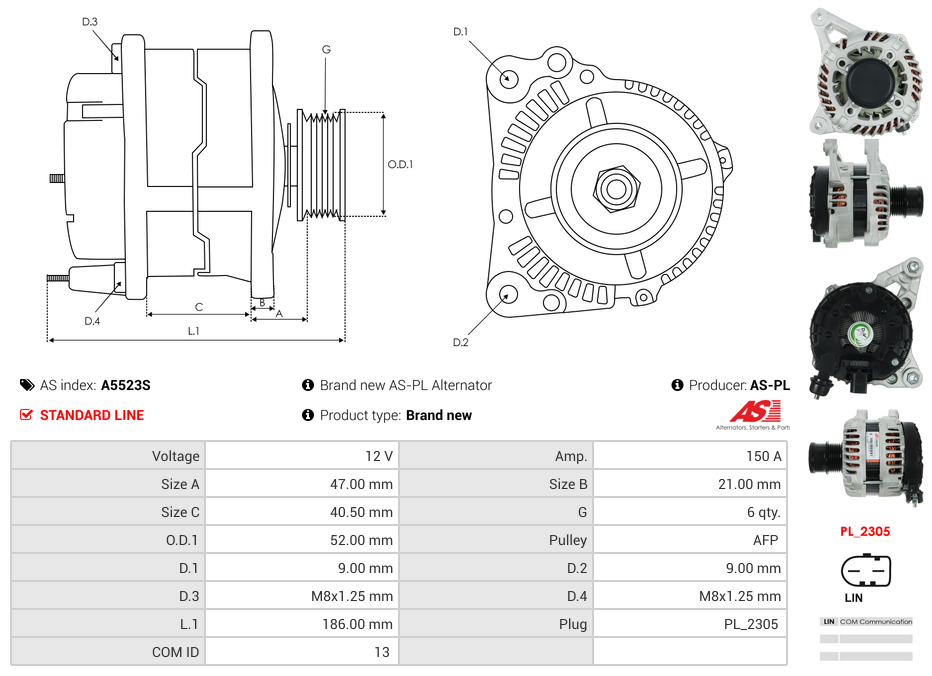

A2TZ0081ZDSpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40.50 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Jazz | 01.2015- |
Reference Information
| 556322RIM | KUHNER |
| A002TZ0081 | MITSUBISHI |
| A002TZ0081ZD | MITSUBISHI |
| A2TZ0081 | MITSUBISHI |
| A2TZ0081ZD | MITSUBISHI |
| ALM4073 | KRAUF |
| JX6T-10300-HB | FORD |
| UD101040A | AS-PL |
Video/Publications
