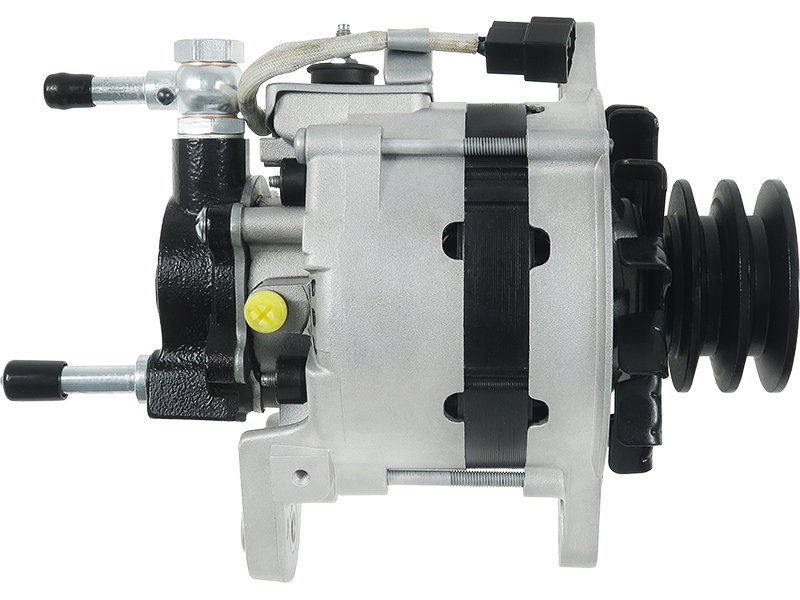

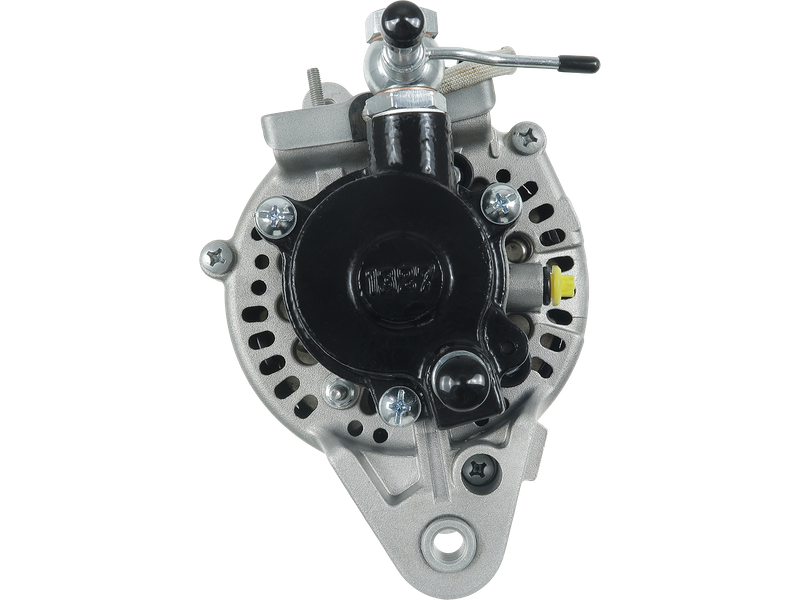

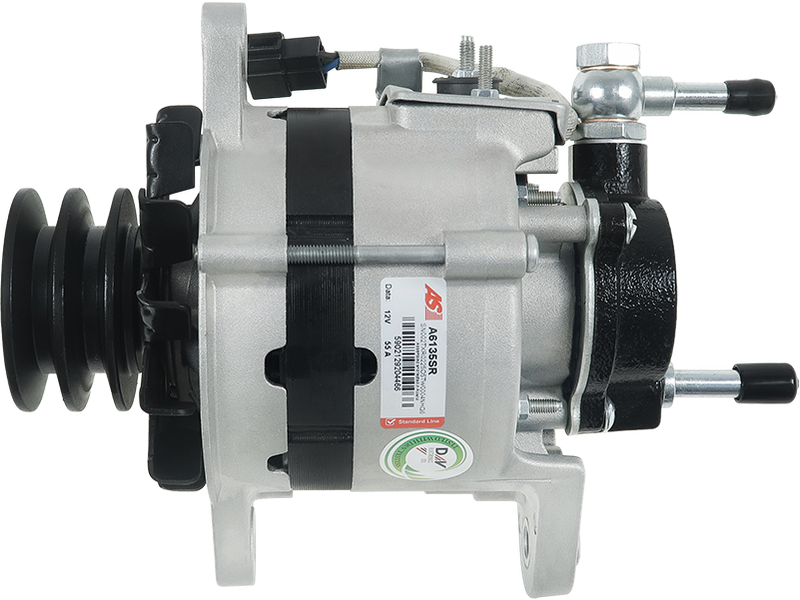

Remanufactured AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 377.49 including GST
NZ$ 328.25 excluding GST
or four payments of $94.37
with
Learn More
each
A6135SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 271 mm |
| Mount Inside Length or Pad Mount C-C (C) | 97 mm |
| OEM Product | No |
| Plug Code | PL_3601 |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12 mm |
| Pulley Outside Diameter (O.D.1) | 51 mm |
| Pulley Outside Diameter (O.D.2) | 77 mm |
| Pulley to Mount Distance (A) | 52 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 100 2.4 D | [2L] | 05.1995-07.2001 |
| TOYOTA | Dyna 150 2.4 D | [2L] | 09.1988-04.1995 |
| TOYOTA | Hilux 2.4 D | [2L] | 03.1995-08.1997 |
| TOYOTA | Hilux 2.4 D | [2L] | 08.1997-04.2005 |
| TOYOTA | Hilux 2.4 D | [2L] | 09.1988-08.1997 |
| TOYOTA | Hilux 2.4 D | [2L] | 10.1988-07.1997 |
| TOYOTA | Hilux 2.4 D | [2L] | 10.1991-07.1997 |
| TOYOTA | Hilux 2.4 D 4WD | [2L] | 01.1994-12.1997 |
| TOYOTA | Hilux 2.4 D 4WD | [2L] | 09.1988-08.1997 |
| TOYOTA | Hilux 2.4 D 4WD | [2L] | 09.1994-07.1997 |
| TOYOTA | Hilux 2.4 TD 4WD | [2L-T] | 08.1988-08.1997 |
| VW | Taro 2.4 D | [2L] | 06.1989-03.1997 |
| VW | Taro 2.4 D | [2L] | 07.1994-03.1997 |
| VW | Taro 2.4 D | [2L] | 09.1991-07.1994 |
| VW | Taro 2.4 D 4x4 | [2L] | 04.1989-03.1997 |
| VW | Taro 2.4 D 4x4 | [2L] | 07.1994-03.1997 |
Reference Information
| 002-T916 | ASHIKA |
| 0986049840 | BOSCH |
| 10021-03350 | DENSO |
| 10021-03360 | DENSO |
| 10021-03400 | DENSO |
| 10021-03460 | DENSO |
| 10021-03580 | DENSO |
| 10021-03680 | DENSO |
| 10021-03770 | DENSO |
| 10021-03810 | DENSO |
| 10021-03821 | DENSO |
| 10021-08160 | DENSO |
| 10021-15900 | DENSO |
| 111483 | CARGO |
| 12100-05100 | DENSO |
| 195.807.055.050 | PSH |
| 195.807.055.058 | PSH |
| 195.807.055.395 | PSH |
| 20132101BN | REAL |
| 2040101.0 | SANDO |
| 210768A | ERA |
| 27020-54160-84 | TOYOTA |
| 27020-54250 | TOYOTA |
| 27020-54250 | TOYOTA |
| 27020-54351 | TOYOTA |
| 27020-54352 | TOYOTA |
| 27020-54353 | TOYOTA |
| 27020-54354 | TOYOTA |
| 27020-54354-84 | TOYOTA |
| 27020-54354-84 | TOYOTA |
| 27020-54383 | TOYOTA |
| 27020-54400-84 | DAIHATSU |
| 27020-54700 | TOYOTA |
| 27030-54190 | TOYOTA |
| 27030-54190 | TOYOTA |
| 27030-54241 | TOYOTA |
| 27030-54242 | TOYOTA |
| 27030-54243 | TOYOTA |
| 27030-54244 | TOYOTA |
| 27030-54250 | TOYOTA |
| 27030-54251 | TOYOTA |
| 27030-54252 | TOYOTA |
| 27030-54253 | TOYOTA |
| 27030-54260 | TOYOTA |
| 27030-54261 | TOYOTA |
| 27030-54262 | TOYOTA |
| 27030-54263 | TOYOTA |
| 27060-54100 | TOYOTA |
| 27060-54101 | TOYOTA |
| 27-1802 | ELSTOCK |
| 2T916 | JAPKO |
| 40777 | KUHNER |
| 437705 | VALEO |
| 445826 | LOGISTIK |
| 5540301 | MEAT & DORIA |
| 56424 | EAI |
| 89212393 | POWERMAX |
| 8EL012429-271 | HELLA |
| A12DE0374A2 | SIDAT |
| AAL1006 | APEC |
| AEB0777 | AUTOELECTRO |
| ALN0777 | KRAUF |
| ALT1019 | ROLLCO |
| ALT30052 | WOODAUTO |
| ALT421010 | SIOM |
| ALT6468 | ELECTROLOG |
| ALT6469 | ELECTROLOG |
| ALT916 | JAPANPARTS |
| ALTS055 | 3EFFE |
| ANM35738 | ANDEL |
| CAL40101AS | CASCO |
| CGB-13518 | AINDE |
| F032111483 | CARGO |
| J2702054352 | VW |
| J2702054700 | VW |
| J5112083 | HERTH+BUSS |
| JA777 | HC PARTS |
| LRA01096 | LUCAS |
| LRA1096 | LUCAS |
| NPANAL1006 | NAPA |
| SA054250-A | GPARTS |
| SA991 | LOMBARDINI |
| STX100232 | STARDAX |
| STX100957 | STARDAX |
| STX101222 | STARDAX |
